Description of biogas analyzer
Portable gas detector with a large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument features two instant alarms with audio/visual and vibratory indicators, rechargeable battery, and simple use.
Main Features of biogas analyzer
1) Advanced MCU control with low power consumption
2) Adjustable low and high alarm level
3) Adjustable calibrating level
4) High concentration protection for combustible gas
5) Self test for the combustible gas sensor
6) Low battery indication
7) Replaceable sensor module
8) Self-adjustment function
9) Visual and audible alarm with vibration
10) STEL and TWA alarming for toxic gases
11) Advanced self-examination and self-renovation function
12) Password management to avoid wrong operation
13) Explosive proof housing

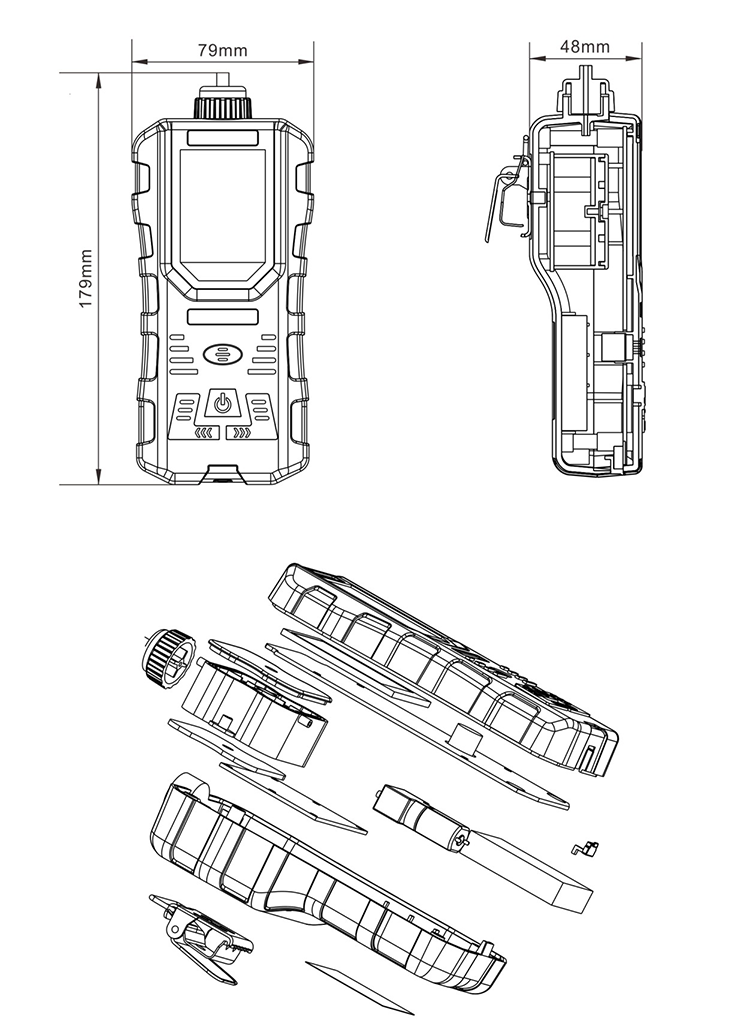

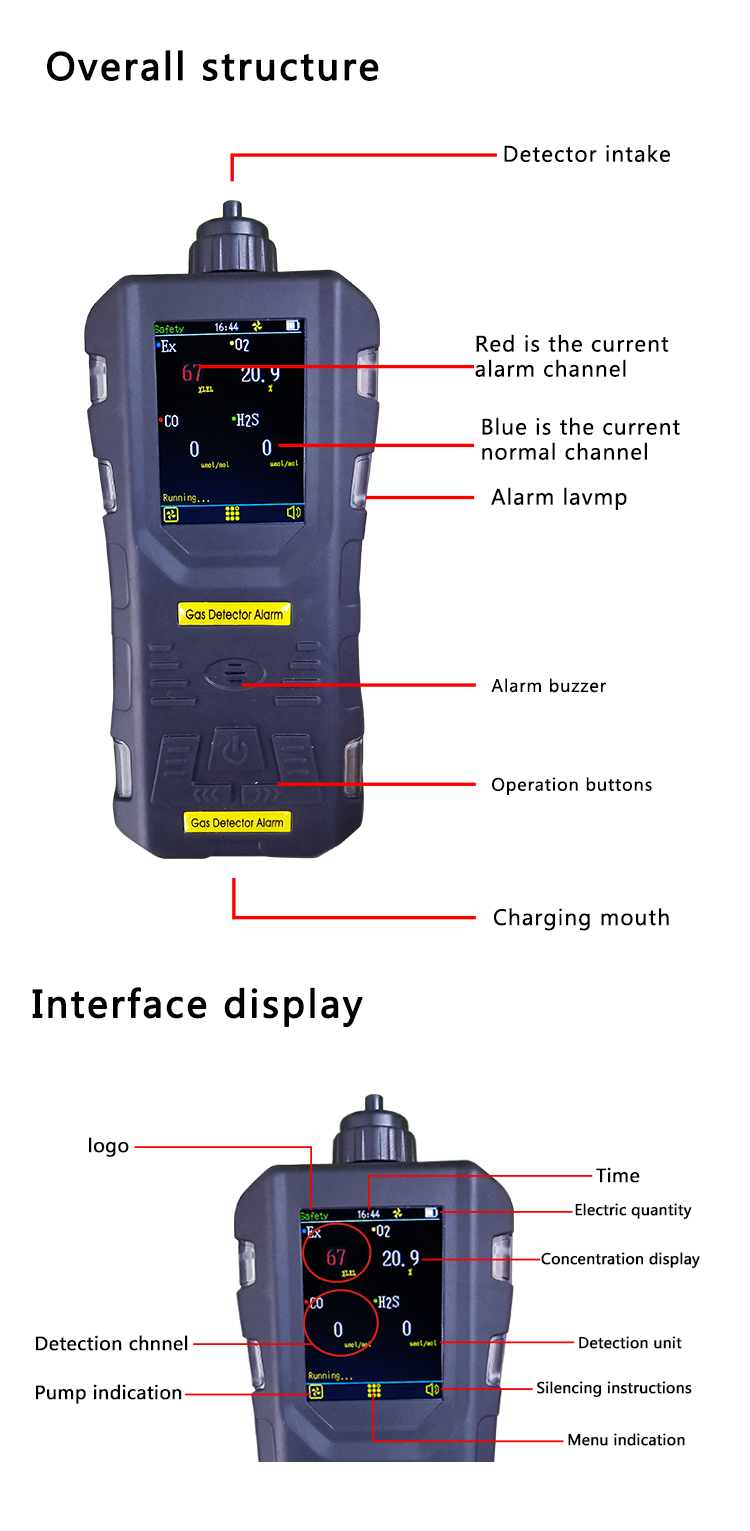

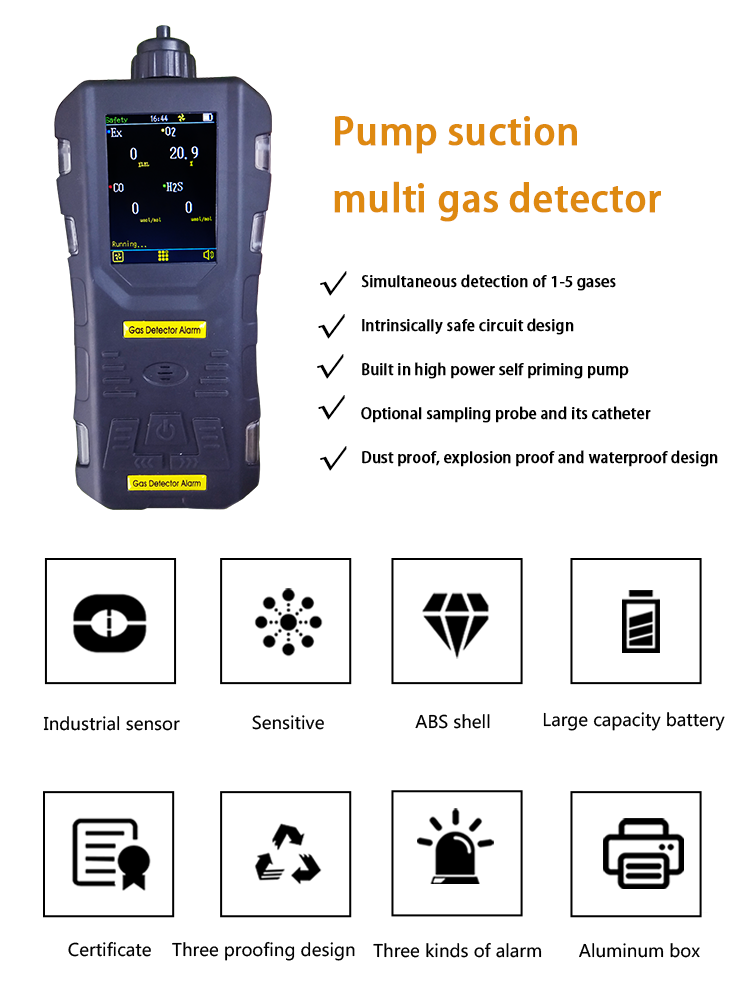

Detailed Images of biogas analyzer
Parameters of biogas analyzer
Operating & Storage Environment | Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing)
Pressure: 95~110kPa |
Sampling method | Diffusion type |
Detecting Range | CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL |
Sensor | O2 /H2S / CO: plug-in electrochemical sensor Combustible gas (LEL): plug-in catalytic combustion sensor |
Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
Resolution | 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX) |
Accuracy | 3% F.S |
Response time | 10s |
Repeatability | 1% |
Zero drift | 1% |
Display | Alphanumeric large LCD displays the real time gas concentration and alarm stage |
Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. |
Self-checking Function | Self-checking Battery power, display, sensor, hardware failure |
Explosion-proof | EXiaIICT4 |
Protection grade | IP66 |
Power Supply | Rechargeable lithium battery |
Dimensions | 179mm*76mm*49mm |
Application of biogas analyzer
Measurable Gas Meter
