Digital H2S Gas Detector Hydrogen sulfid Detector H2S Tester Meter With 0-200PPM
Single portable gas detector economical and practical model
Description
| Detection gas | H2S |
| Detection method | Natural diffusion |
| Detection principle | Semiconductor/catalysis/electrochemistry |
| scope of test | See Schedule |
| Display | LCD digital display of gas type /gas concentration/ status |
| Case | Rugged, shockproof synthetic rubber |
| Battery | 3.7v 1300mA rechargeable lithium battery |
| Relative humidity | 5-95% RH (non-condensing) |
| Operating temperature | -40°C to 50° C |
| Calibration | automatic calibration and return to zero |
| Back lighting | backlight turns on automatically in dark environment and alarming situation. You can also turn on by press the backlight button |
| Self-test | full self test function when start-up |
| Alarm indication | clearly audible and visual way to indicate the alarm level |
| Audible alarm | up to 95 dB pulse output at 0.25 meter from the detector |
| Visual alarm | blinking, wide-angle alarm lens and 2 red alarm LED and alarming LCD readings |
| Other alarms | low battery; turn off warning; sensor malfunction, over range. |
| Detection accuracy | 3% FS |
| Interface Definition | U3 port (USB) |
| Storage capacity | MAX 6000 records |
| Appearance Size | (length 100 * width 65 * height 28) mm |
| Weight | 220g |
| Explosion-proof mark | Ex ib IIB T3 Gb |
| Explosion-proof certificate number | CNEx19.5062X |

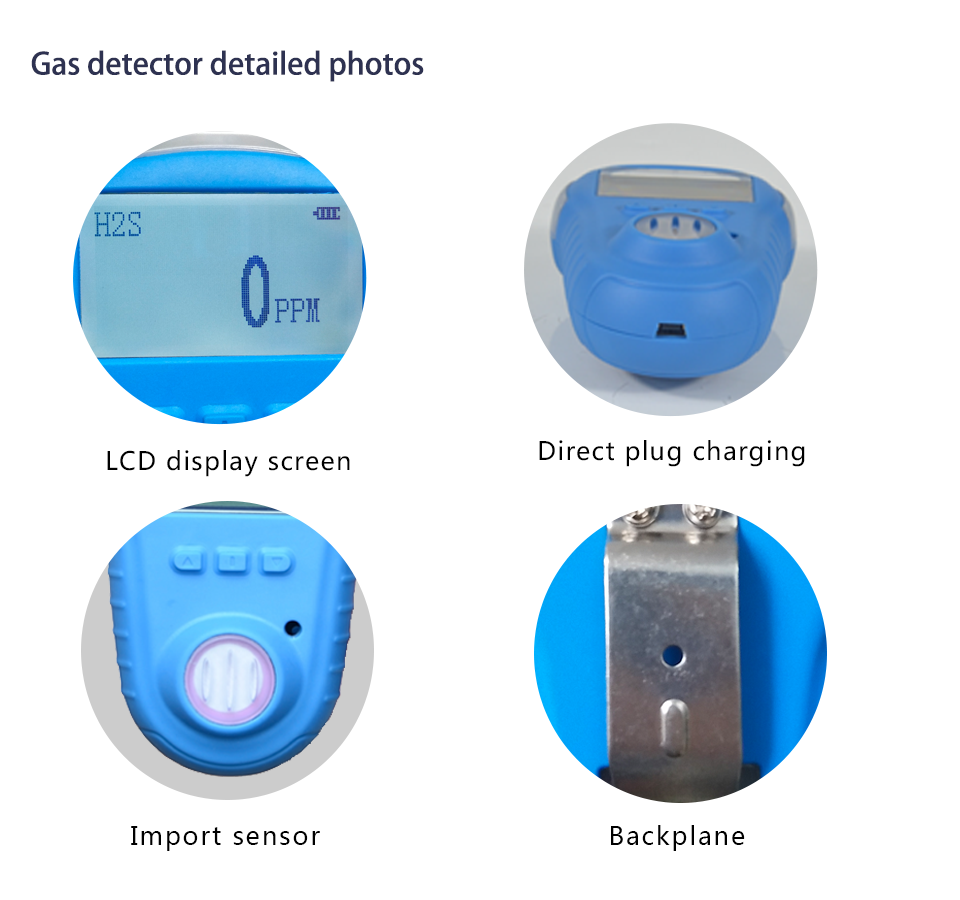

Detailed Images of analyzer
Application of biogas analyzer
Functions Features
- Upload computer function (optional)
- 6000 alarm record inquiry function
- Low alarm point and high alarm point adjustable
- Press the button to display the battery real-time power
- Built-in vibration alarm function suitable for use in high-pitched occasions
- Full self-test function: boot up, sensor, battery and circuit, vibration / auditory / visual triple alarm self-test
- Accessories: test cover, operation manual
- Simple automatic calibration procedure and replaceable plug-in sensor
- LCD continuously displays gas concentration in real time and backlight can be turned on automatically if needed.
- Protection grade IP66 highly waterproof and dust-proof design suitable for harsh environments
- 95 dB alarm sound and a bright LED flashes during the alarm
- Convenient to carry for its small size and light weight
- Replaceable battery of long lifetime

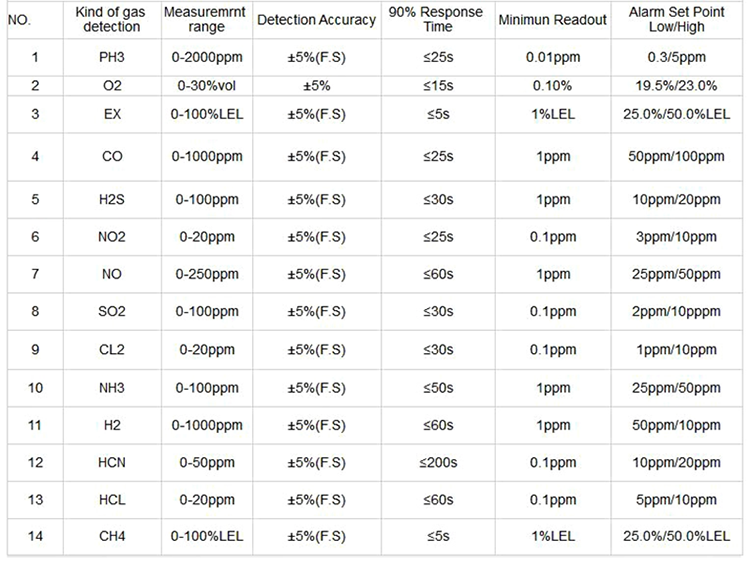

Measurable Gas Meter
