✅ 1. Q: Can you send someone to my garage to install this machine?
A: We have professional technicians who can provide you with installation guidance online, and we can also provide you with machine installation video.

✅ 2. Q: Can you teach me how to use it?
A: Of course we are happy to help you, this machine has voice function to give you guidance, if you have any questions, please contact us!

🛑 3. Q: What are the requirements for my weightlifter with this machine?
A: There are strict requirements, this machine does not support two-post lifts and scissor lifts. It can only be used with a four-post lift.

✅ 4. Q: What if I don't have a four-post lift?
A: It is recommended to purchase the premium model XC508 as this advanced device supports any size lift. Please click this link to access https://www.ebay.com/itm/256313300080 🥇🥇🥇🥇🥇🥇.

✅ 5. Q: Will the machine be updated by 2025 and how will it be updated in the future?
A: Most models of this machine will be supported until 2025. For unsupported years and models, future upgrades are always free!

✅ 6. Q: Do you provide local support if the machine fails for any reason?
A: Our technicians are available to help you solve your problem by phone, video, and other online communication methods. We guarantee a quick resolution. We offer 3 years warranty and 1 year free spare parts service.

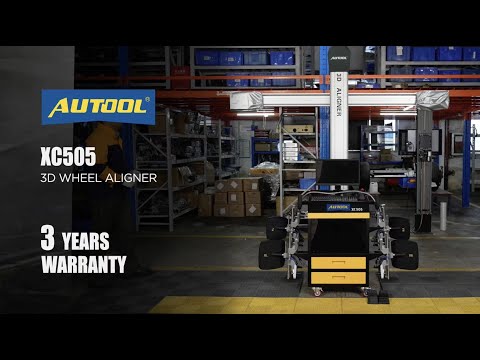

✅ Latest 3D Measurement Technology：AUTOOL XC505 3D wheel alignment machine is equipped with an industry-leading four-wheel positioning optical system with a 5 mega industrial-grade HD lens and a camera-to- turntable distance of up to 1500mm-2800mm. There is no need to move the camera, thus avoiding bumps and allowing a much longer service life. With removable storage cabinet, it is convenient to store and not easy to lose.

✅ Widely Used：Measurement system for full vehicle body dimension，this tire machine supports various measurements including toe -in, camber,steering axle inclination, caster, thrustangle, track width, track width diff, wheelbase, and wheelbase diff. It supports over 100 car brands and over 50,000 models, together with the possibility for users, to add the models on their own. The software has a built-in Help System, which can quickly query the vehicle adjustment plan.

✅  Expert Mode：The software of wheel alignment & balancing tools adopt expert mode, which is simple, fast, and time-saving to operate. Save more than 30% time than the ordinary wheel aligner.Test data can be traced and with a printing function, the test data includes detailed parameters of the vehicle.The whole measurement process is guided by voice synchronization and intelligent LED indication.

✅  Short Distance of Rolling Run-out Compensation：Push the vehicle backward to a short distance of 8-12cm(3.2- 4.7inches) can collect measurement data, which can detect tires in the range of 13-23 inches. Offset compensation is performed by means of rolling, which requires no stopping and has a short and adjustable rolling distance. In addition, wheel aligner is equipped with special function detection and accident vehicle measurement system.

✅  High-precision Waterproof Anti-fall Target：The targets are both waterproof and drop resistant, as well as not having to be calibrated regularly, which is much easier to use and maintain.There is no need to worry about problems of cable pulling, charging,battery replacement, or signal failure. Supports multiple languages, including Chinese, English, Spanish, Russian, Arabic, Thai, Portuguese.

Function and Feature
All new three dimension computer visual measurement: adopted high performance camera to automatically detect the alignment parameter. The equipment was calibrated at production, does not need on-site calibration at installation.

1、Electric component free target: no electric component or wiring on the target, which ensure the equipment to be more convenient and durable.

2、3D (Fixed Height) wheel aligner can be installed at any height according to user’s interest.

3、3D (Auto Focus) wheel aligner can detect the lift position and follow the lift up and down, to ensure the equipment always in best working height.

4、Extremely simplified test procedure.

5、Complete parameter measurement: Capable of test of front/rear toe-in, front/rear camber, thrust angle, caster, SAI/Kingpin, wheelbase, track (thread) etc.

6、Large database: More than 20000 records of vehicle all over the world, and user can add data at will.

7、Historical data storage for client management.

8、Real-time help system.

Latest 3D Measurement Technology for Full Car Body with Expert Mood
This 3D wheel alignment machine is equipped with an industry-leading four-wheel positioning optical system with a 5 mega industrial-grade HD lens and a camera-to- turntable distance of up to 1500mm-2800mm.There is no need to move the camera, thus avoiding bumps and allowing a much longer service life.

It supports various measurements including toe -in, camber,steering axle inclination, caster, thrustangle, track width, track width diff, wheelbase, and wheelbase diff.

The software adopts expert mode, which is simple, fast, and time-saving to operate. Save more than 30% time than the ordinary wheel aligner.

Global Ultra Large Database & Short Distance of Rolling Run-out Compensation
It supports over 100 car brands and over 80,000 models, together with the possibility for users, to add the models on their own. The software has a built-in Help System, which can quickly query the vehicle adjustment plan.

Push the vehicle backward to a short distance of 8-12cm(3.2- 4.7inches) can collect measurement data, which can detect tires in the range of 13-23 inches.Offset compensation is performed by means of rolling, which requires no stopping and has a short and adjustable rolling distance.

In addition, it also supports special function detection and accident vehicle measurement system.


 ● Relative humidity : ≤85%
 ● Light condition : No direct Infrared light to the targets
 ● Lift platform height difference : front/end height difference < 2mm

Caution：We preserve the right to change design without prior notification.The measure range can only be assure when operate the wheel aligner according to this user manual.
