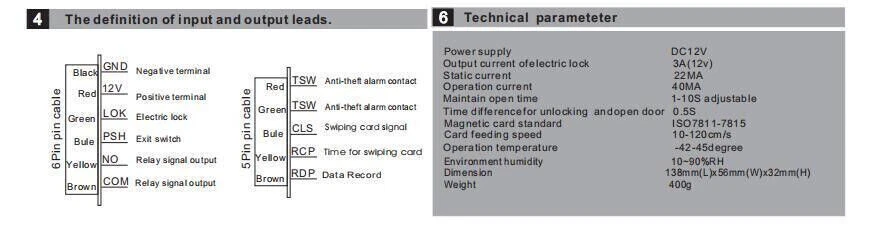

Main technology parametric



  • Power supply：DC12V
  • Electric lock permit maximum output current ：3A(12V)
  • Static power consumption：22mA
  • perating current：40mA (non-current electric lock)
  • Unlock time：adjustable 1~10s
  • unlock and open the door automatically with the time difference：0.5s
  • Magnetic card standards：ISO7811-7815
  • Permit card speed：10~120cm/s
  • Head life expectancy：>=600000times
  • Working ambient temperature：-42~45°c
  • Working environment humidity：10~90%RH
  • Overall dimension：138mm(L)x56mm(W)x32mm(H)
  • Total weight：400g
