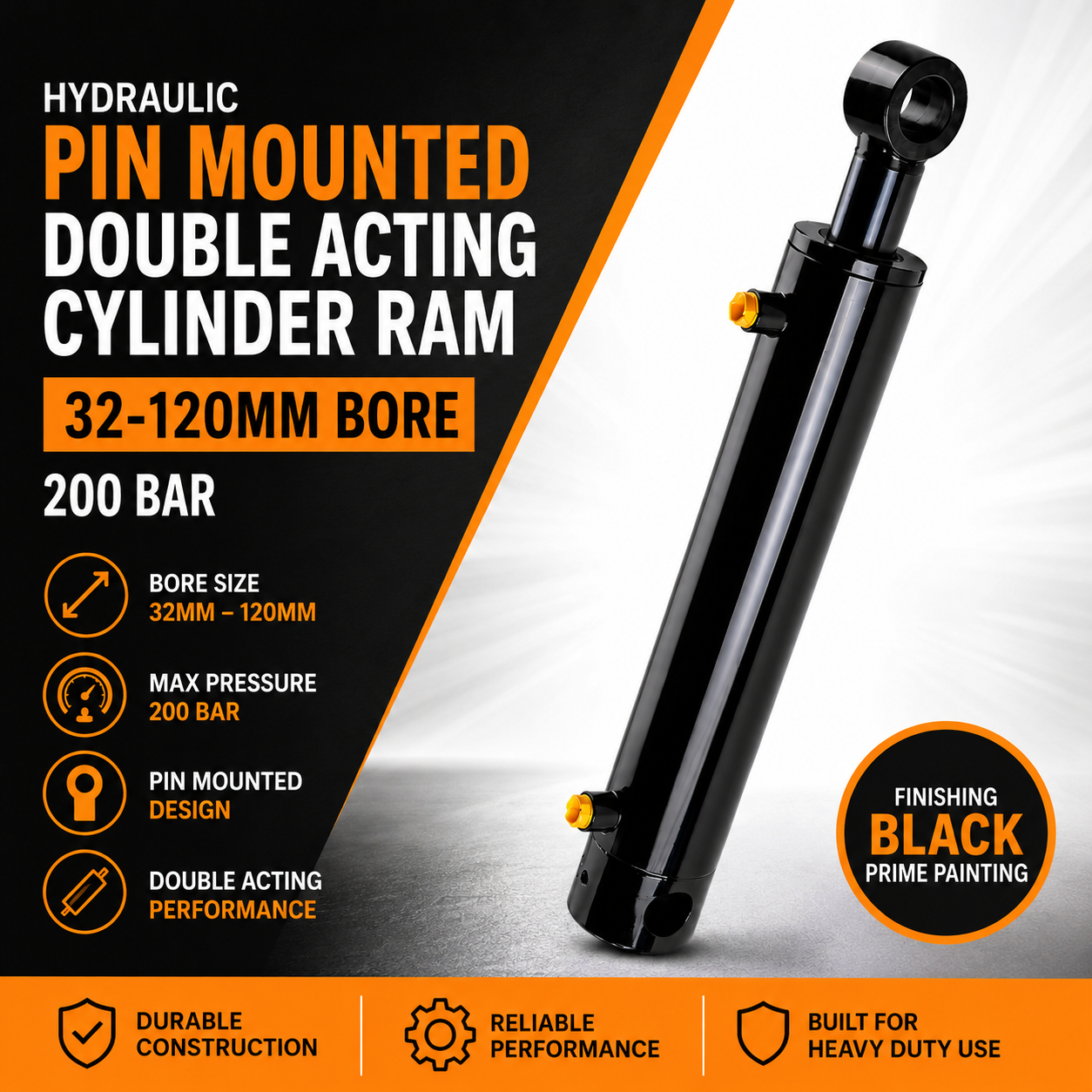

Hydraulic Pin Mounted Double Acting Cylinder Ram 32-120mm Bore 200 Bar

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

The Flowfit hydraulic double acting cylinder / ram range is available with multiple bore options from 32mm to 120mm, suitable for a wide range of hydraulic applications.

These double acting hydraulic cylinders are designed for reliable performance, with chrome plated rods, steel tube construction and high-quality sealing components.

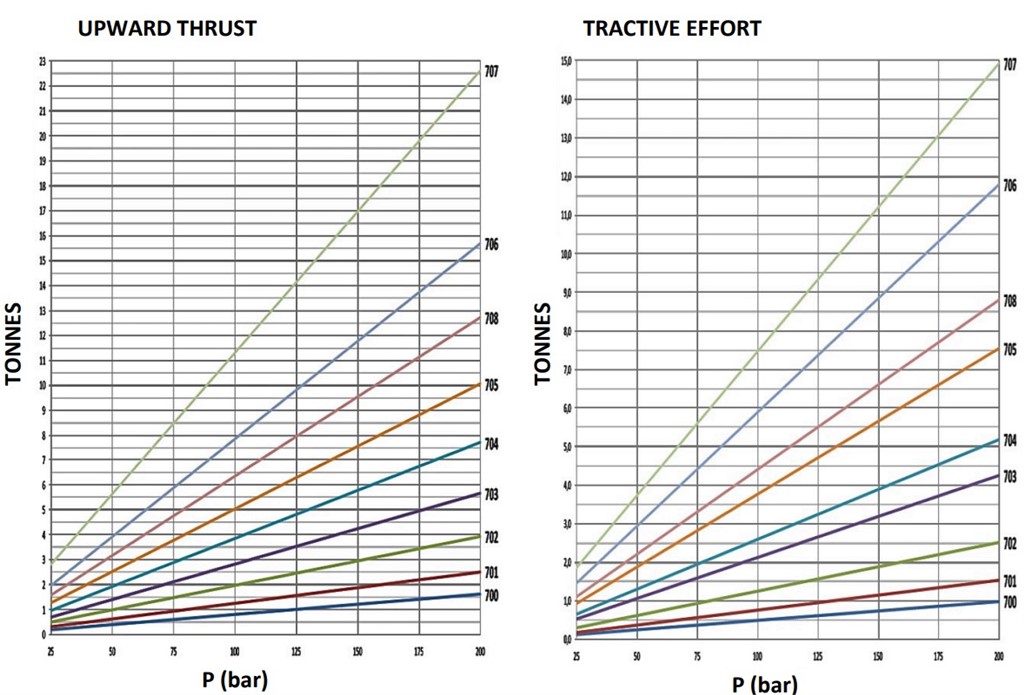

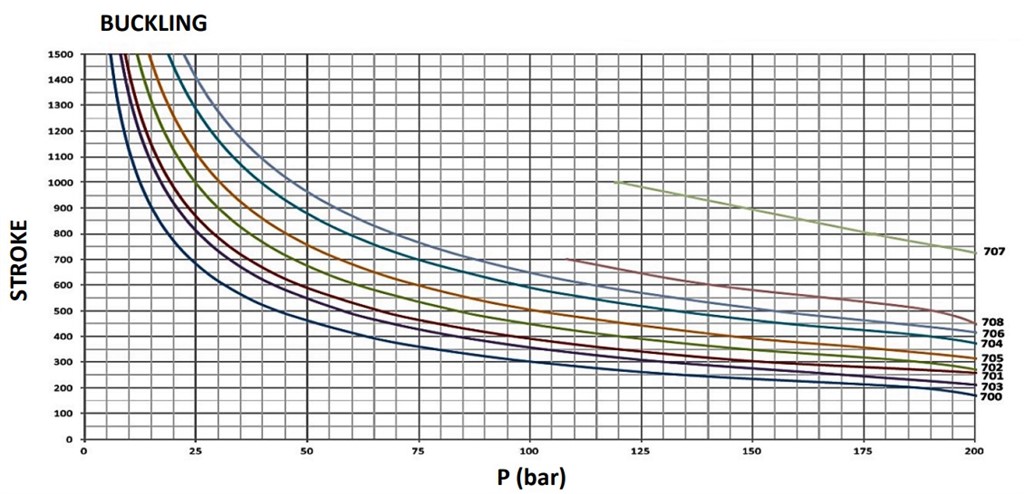

Flowfit hydraulic double acting cylinder options Flowfit hydraulic cylinder technical information

Characteristics

Max Working Pressure 200 bar
Max Testing Pressure 300 bar
Max Working Speed 0.5 m/s
Working Temperature -30°C to +90°C
Oil Type Mineral hydraulic oil

Material

Rod: Chrome plated steel F-1140, minimum chrome layer thickness 20 micron, roughness Ra < 0.2, minimum surface hardness 900 HV, corrosion resistance minimum 200 hours in neutral saline fog according to ISO9227 rating 9.

Tube: Steel ST-52-3, DIN 2393, inside diameter tolerance ISO H9, roughness Ra < 0.8 micron.

Guide Bushing: Steel F-1140 nitrated / nitride hardened.

Piston: Steel F-1140.

Seals

Guide Bushing - Dynamic: Compact polyurethane rod seal, double lip, with NBR metal wiper seal.

Guide Bushing - Static: NBR 90 shore O-ring.

Piston - Dynamic: Compact double-acting polyurethane seal, plus nitrile O-ring as activator. Special polyacetal guides reinforced with glass fibre.

Piston - Static: Polyamide locking sealing guide.

Finish

Black prime painting.

Recommendations

  • Protect the cylinder circuit with a relief valve set at 200 bar.
  • Check oil cleanliness and prevent contamination by fitting a filter on the cylinder circuit.
  • Bleed the circuit by slightly loosening the cylinder fittings before start-up.
  • Do not weld on the cylinder tube.
  • Before welding on the rod or bottom, dismount the cylinder.
  • For long-term storage, avoid outdoor storage where possible.
  • If outdoor storage cannot be avoided, fully retract or grease the rod.
  • For high-pressure cleaning or blasting, protect the rod and oil ports.
  • For double-acting cylinders working as single acting, connect the unused oil port to tank.
  • If dismounting the cylinder, note that the piston is screwed onto the rod end and fixed with industrial glue. Industrial glue must also be used when mounting again.

Note: Please check bore size, stroke length, mounting type and hydraulic system requirements before ordering to ensure the correct cylinder is selected.
