Features:

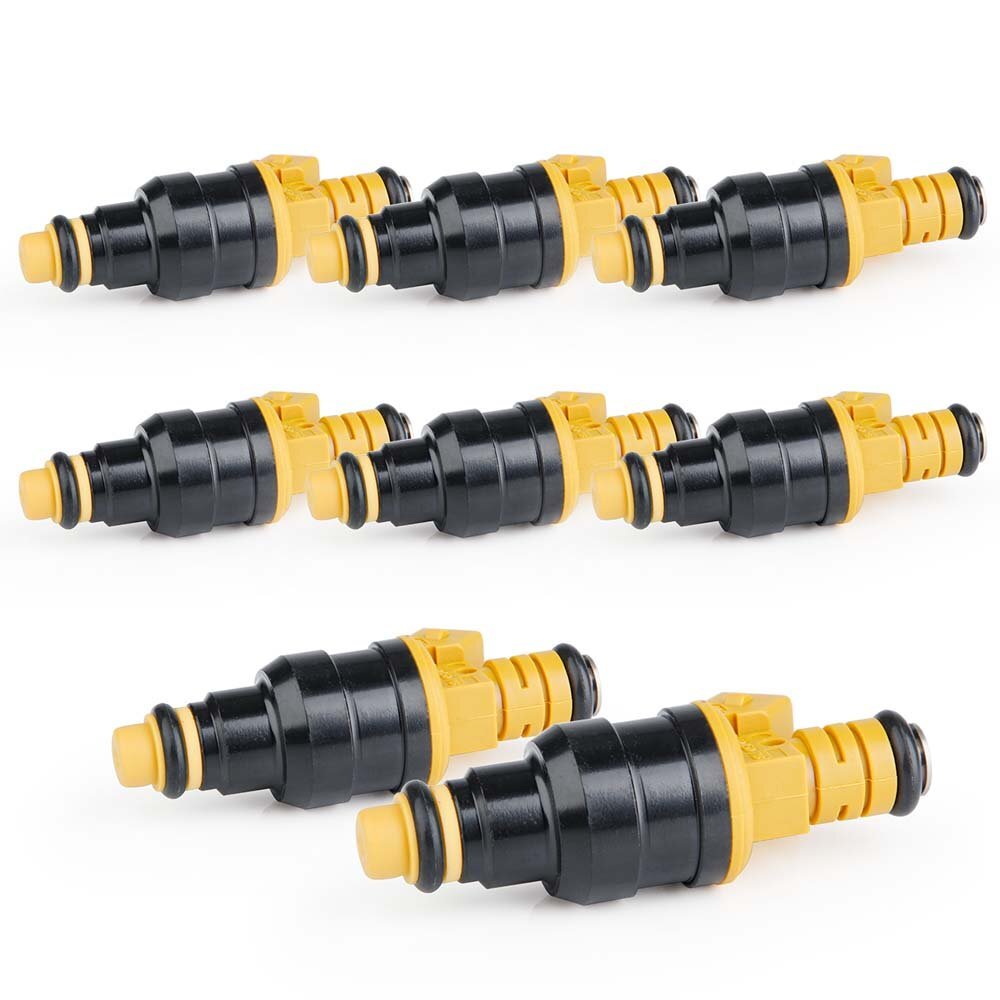

Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: Bosch EV1
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Part Number:
0280150943, 0280150939, 0280150909, F0TED5B, 0280150556, 0280150718, 822-11111,822-11124
F1ZE-A2B, F1ZE-C2A, E6TE-A2B, F2TE-A3A, E5TE-A3B, E6TE-A3B, F0TE-D5B
Specification:
Coil Resistance: 14.5 Ohms / High Impedance
Static Flow Rate: 215cc/min at 43PSI
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:2 %
Length: 3" (74mm)
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16mm
O-Ring Diameter: 14.5mm
Compatible Vehicles:
1985-2002 Chevrolet Camaro
1994-1996 Chevrolet Caprice1985-2004 Chevrolet Corvette
1994-1996 Chevrolet Impala
1994-1997 Ford F250 7.5L
1994-1997 Ford F350 7.5L
1994-1997 Ford Super Duty 7.5L
2003-2004 Ford Crown Victoria
2000-2005 Ford Excursion
2000-2004 Ford F250 Super Duty 5.4L
2000-2004 Ford F350 Super Duty 5.4L
1986-1995 Ford Mustang GT, Lx and Cobra 5.0L
1996-2004 Ford Mustang GT
1999/2001 Ford Mustang Cobra (Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
2003-2004 Ford Mustang Cobra ((Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
1985-2002 Pontiac Firebird
2004-2006 Pontiac GTO
1985-2002 Pontiac TransAm
Package Includes:
8 pcs Fuel Injectors
