Features:

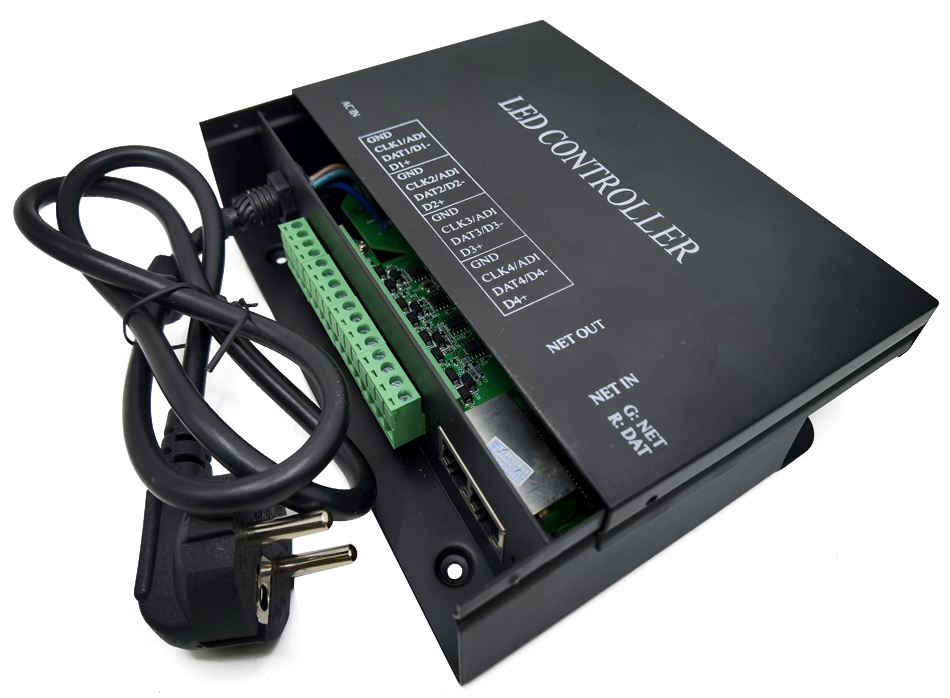

The controller is a four ports output controller that employs Ethernet protocol and supports Art-Net protocol.
It supports multiple kinds of LED driver chips and can address for DMX512 driver chips.

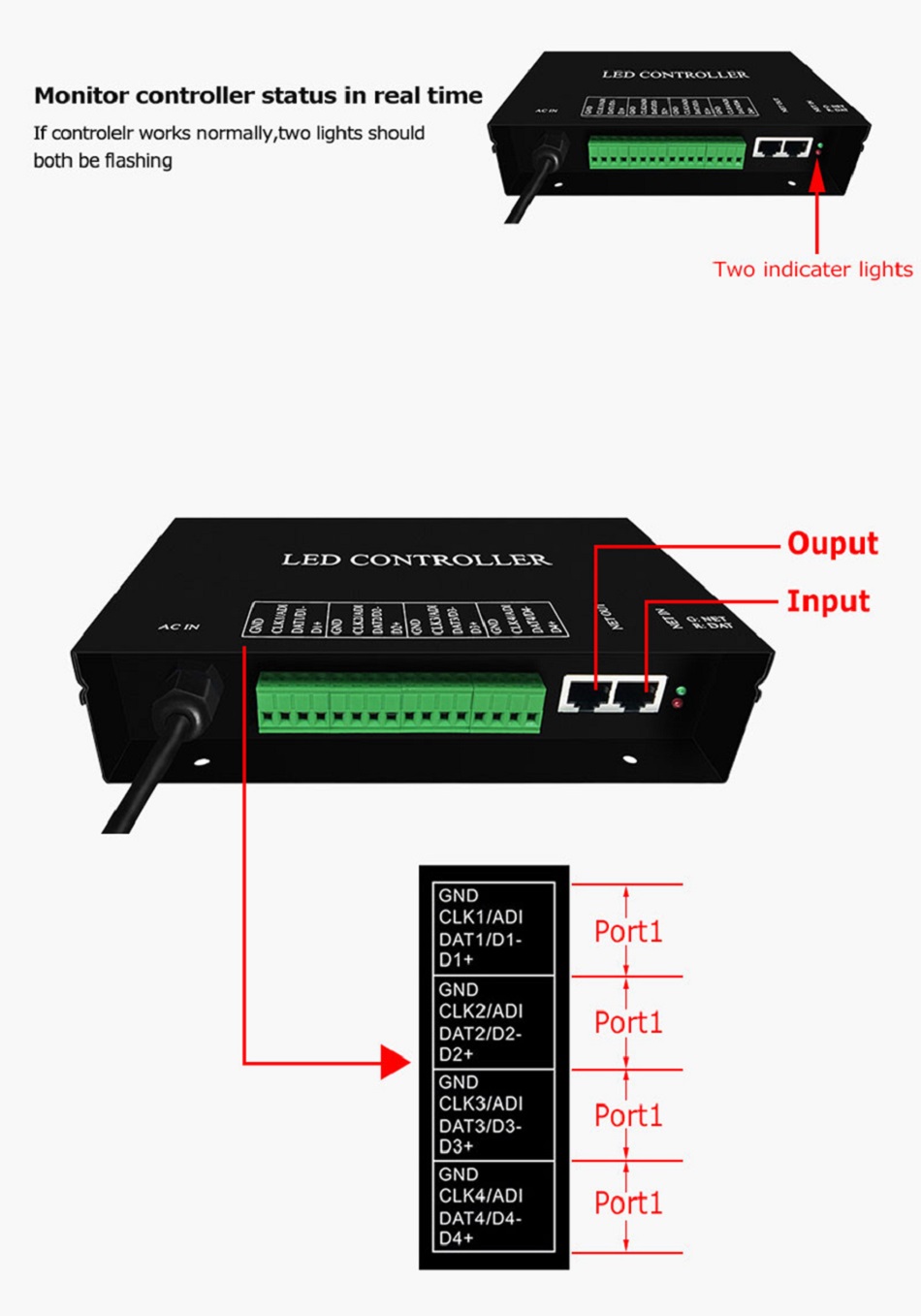

The input network interface can be connected to master controller or computer.
Online software are "LED Studio" and "MADRIX".

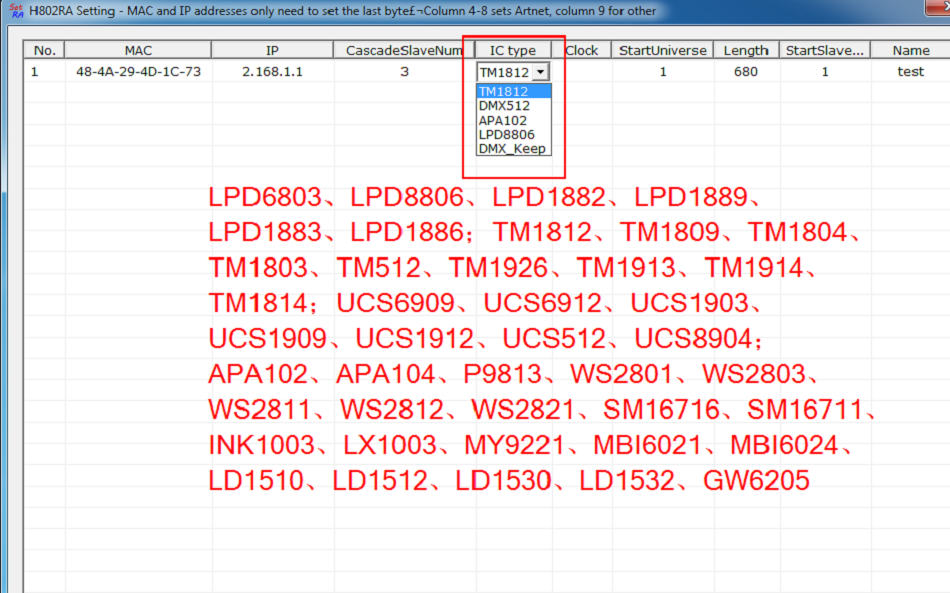

Supported Driver Chips:

DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2812b,WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.

Specifications:

Input Voltage: AC90-240V

Power Consumption: 1.3W

Drive Pixels Number: 4096

Weight: 0.87KG

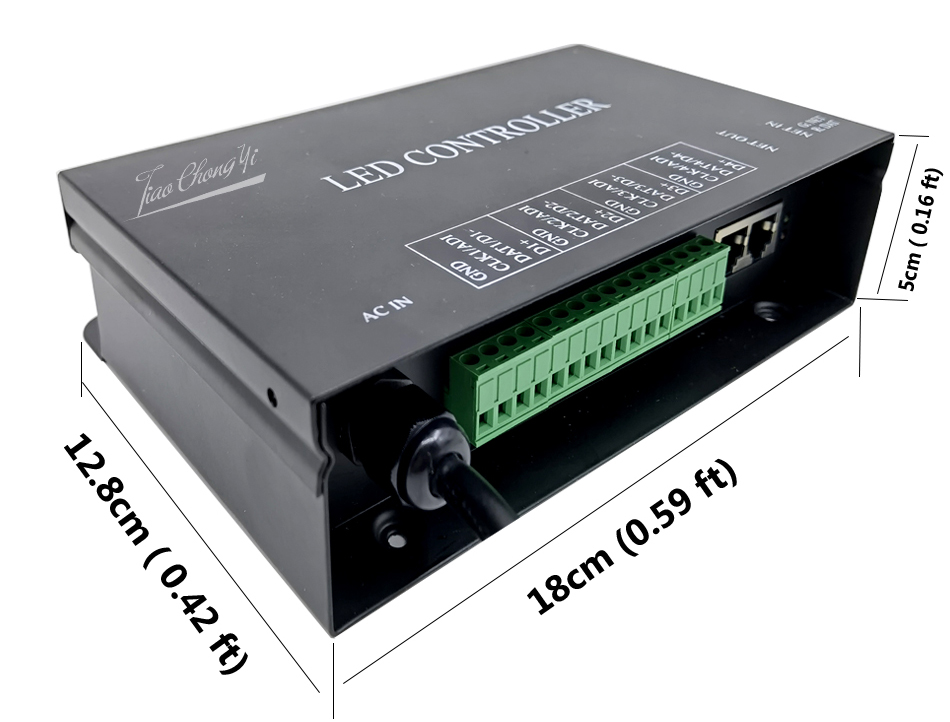

Dimension: L 180 x W 128 x H 50mm

Carton Size: L205 x W18 x H60mm

Performance:

(1). Four ports, control maximum 4096 pixels.
(2). Support Art-Net protocol, so H802RA can work with MADRIX.
(3). Address for the TM and UCS DMX512 driver chips, such as TM512, UCS512.
(4). Configured as repeater or amplifier by LED Studio.

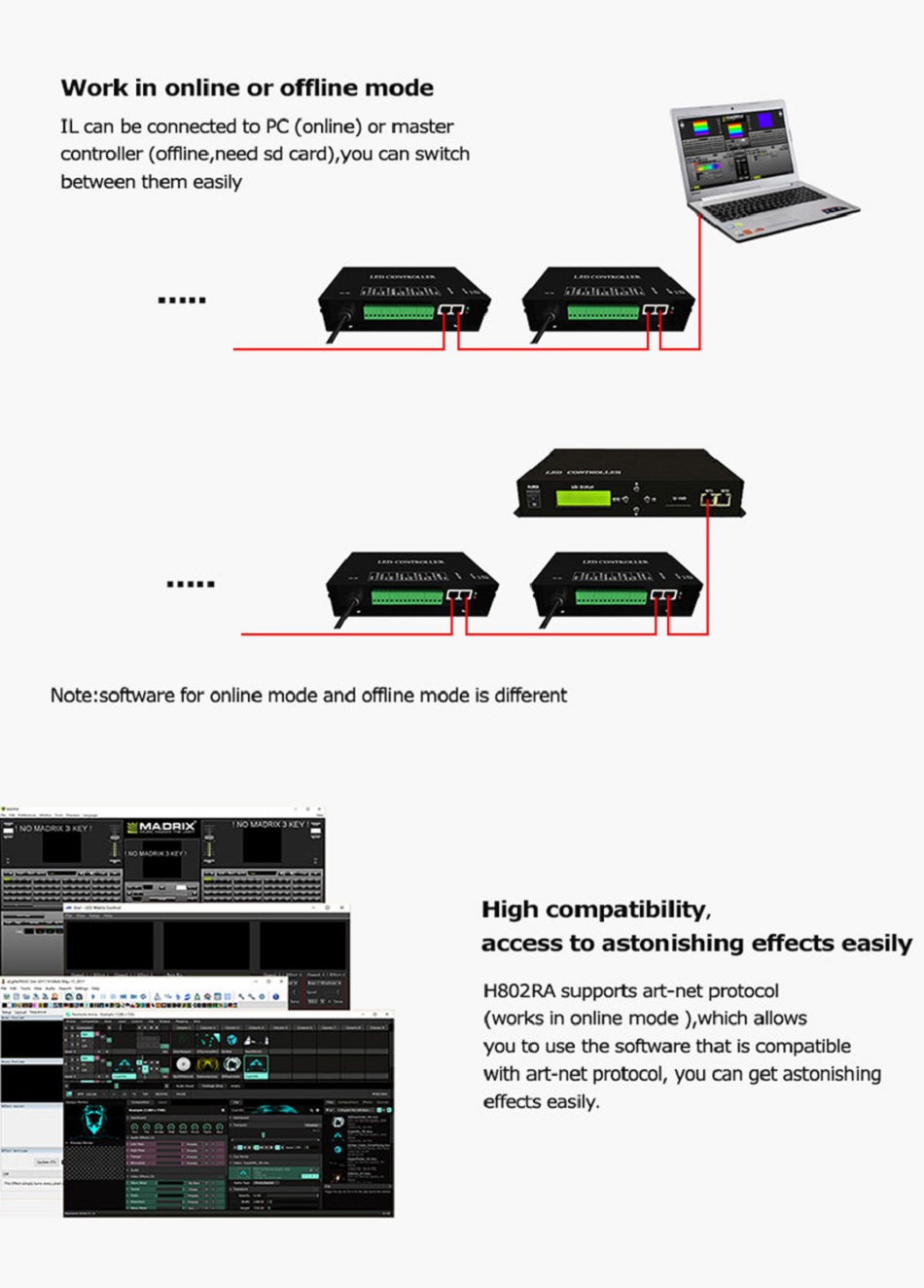

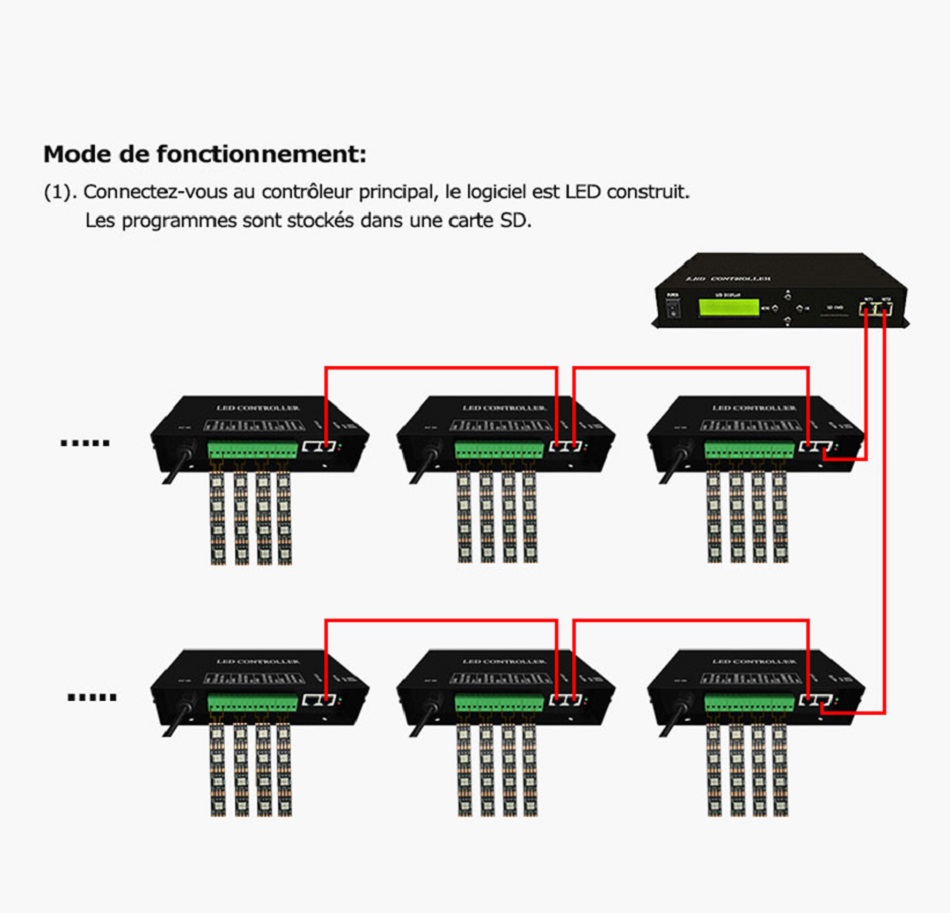

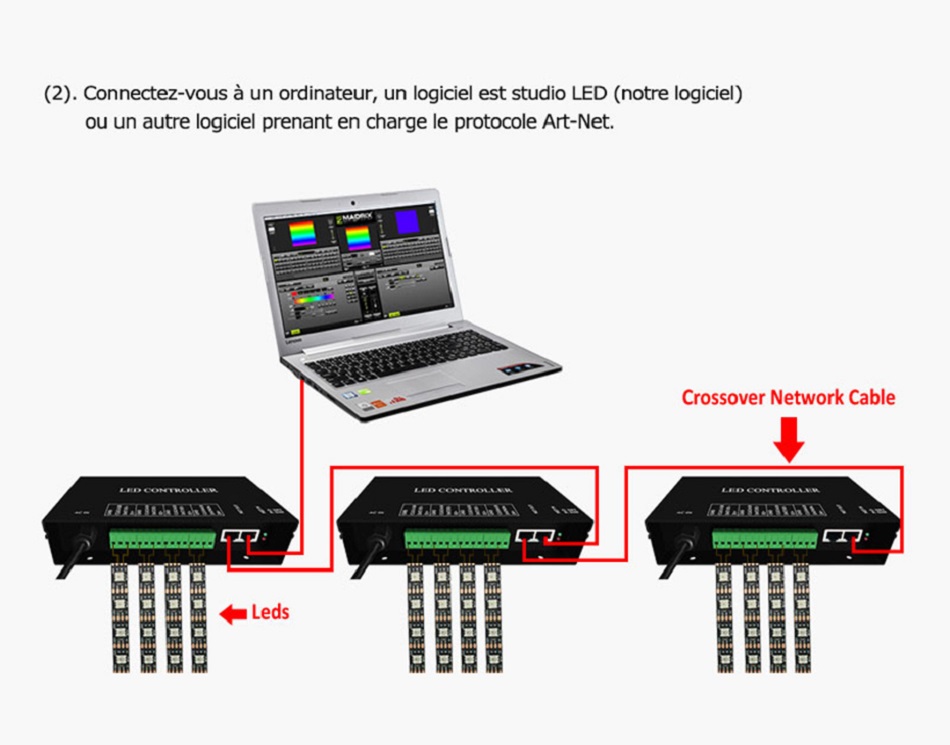

(5). Work with master controller or computer.

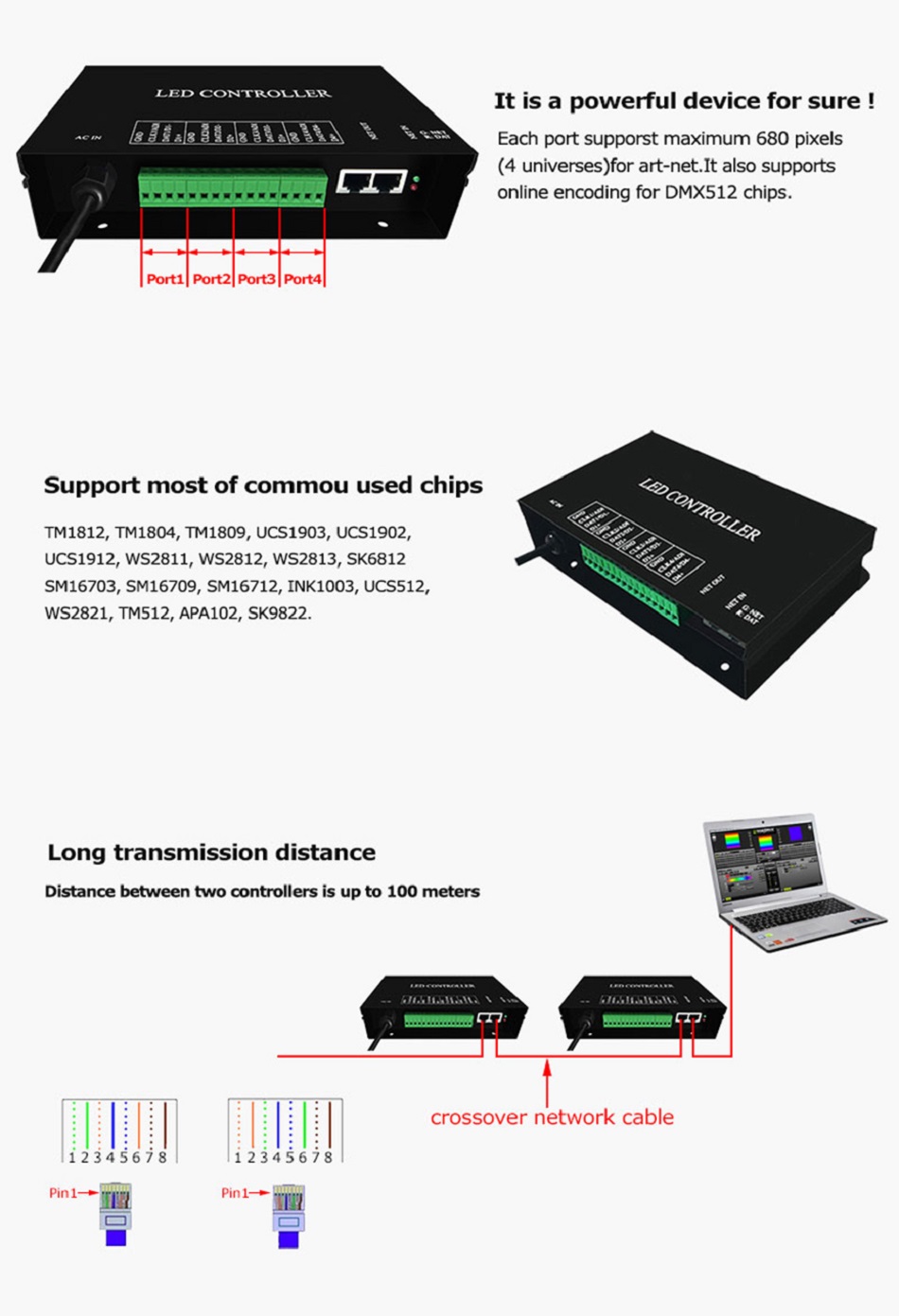

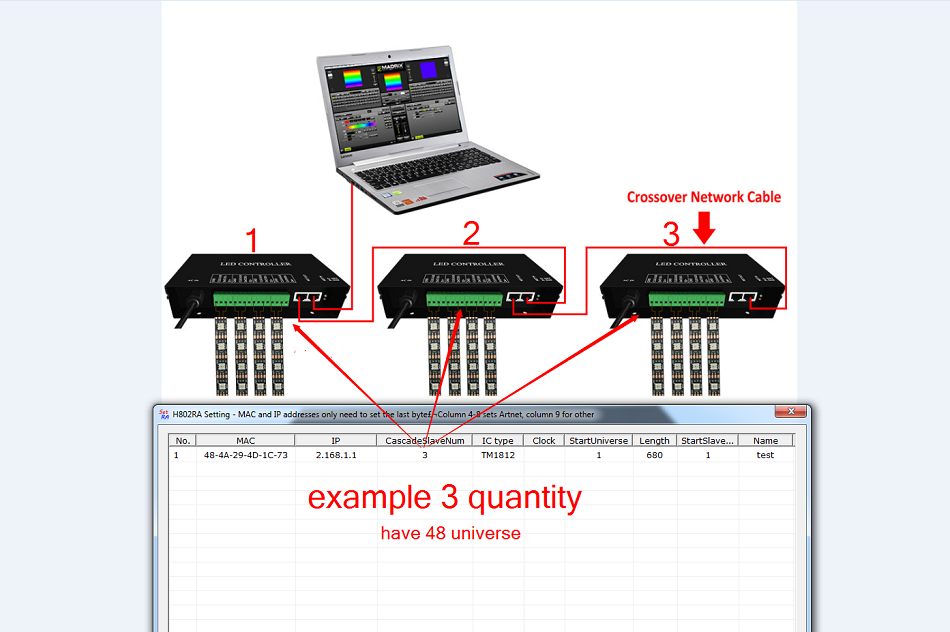

(6). Distance between two controllers is up to 100 meters.
