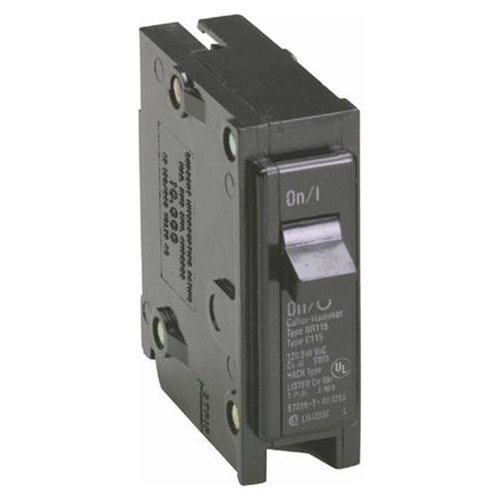

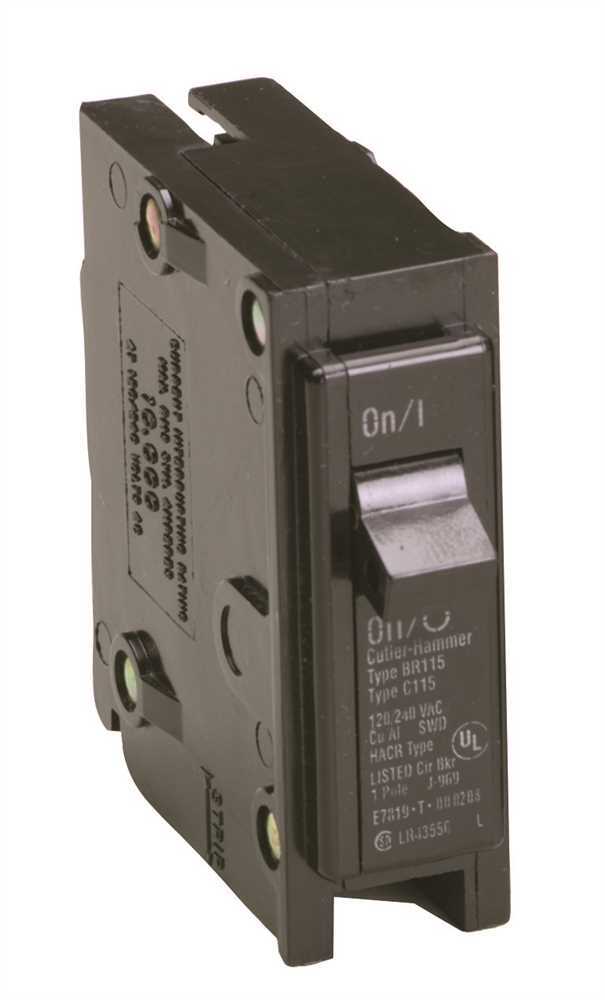

Eaton BR120 Circuit Breaker, Mini, Type BR, 20 A, 1 -Pole, 120/240 V, Plug Mounting Black
FEATURES
- Full size Type BR single pole 20 amp breaker
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- Ulf Approved for use in Cutler-Hammer, Westinghouse, Bryant ,Challenger
DESCRIPTION
CIRCUIT BREAKER 1P 1IN 20A BR
Switching duty rating. Thermal magnetic 40 deg C. Interchangeable, will replace Bryant, Westinghouse and Challenger. Type BR. 120/240 V, 10,000 AIR. 1 in per pole.
SPECS
| Voltage | 120/240 |
| Mounting Type | Plug |
| Warranty | 10 year limited |
| Certifications | UL |
| Amperage | 20 Amp |
| Phase | Both |
| Manufacturer Warranty | 10 years |
| Breaker Type | Single Pole |
| Certifications and Listings | ANSI Certified, UL Listed |
| Circuit Breaker Type | Plug-On |
| Maximum Amperage | 20 |
| Number of Poles | 1 |
| Product Depth (in.) | 2.89 |
| Product Height (in.) | 2.9245 |
| Product Width (in.) | 0.981 |
| Pack Size | 1 |
| AMPS | 20 Amps |
| Volts | 120/240 V |
| Depth | 2.89" |
| UL Listed | Yes |
| Packaging Type | Bulk |
| Indoor or Outdoor | Indoor |
| Allocation Quantity | 10 |
| Circuit Protection Type | Plug In |
| CSA Listed | Yes |
| Defective Code | A |
| Each Weight | 0.280 LB |
| Returnable | Yes |
| Sub Brand | Cutler-Hammer |
| Velocity | A |
| Product Type | Circuit Breaker |
| UNSPSC | 39121601 |
| Alternative UPC | 786676362108 |
| Height | 3.00 |
| ECCN | EAR99 |
| Width | 3.00 |
| Country Origin Code | DO |
| Length | 1.00 |
| Hazardous Material | No |
| Dimensions | 2.92 in L x 0.98 in W x 2.89 in H |
| Application | For overload and short circuit protection of home electrical system |
| Type | Mini Type BR |
| Operating Temperature | 40 deg C |
| Wire Size | 14 to 4 AWG |
| Number of Phases | 1 |
| Interrupt Rating | 42 kA |
| Operating Frequency | 50/60 Hz |
| Nomenclature | BR120 PLUG-ON 1IN BREAKR20A 1P |
| Actuator Type | Quick-Make Quick-Break |
| Current Rating | 20 A |
| P65 Warning | The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Each Product Weight | 0.3 pound |
| Selling Package Depth | 1 |
| Minimum Sell Quantity | 1 |
| Frame Size | 1-Space |
| Width (in) | 1 |
| Certification | UL Listed |
| Mount Type | Plug-In |
| Interruption Type | Standard Trip |
| MADE IN THE USA | No |
| Minimum Operating Temperature | 600 C |
| Package Quantity | 1 |
| Tripping Mechanism | Thermal-Magnetic |
| Space Required | 1 |
| For Use With | BR Loadcenters |
| Assembled Product Depth | 2.5 in. |
| AbilityOne | No |
| ADA Compliant | No |
| Assembled Product Height | 3 in. |
| Terminal Connection Type | Screw |
| Material | Thermoplastic |
| Assembled Product Width | 1 in. |
| GSA Approved | No |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 750 C |
| TAA/BAA Compliant | Yes |
| Breaking Capacity | 10 kA |
