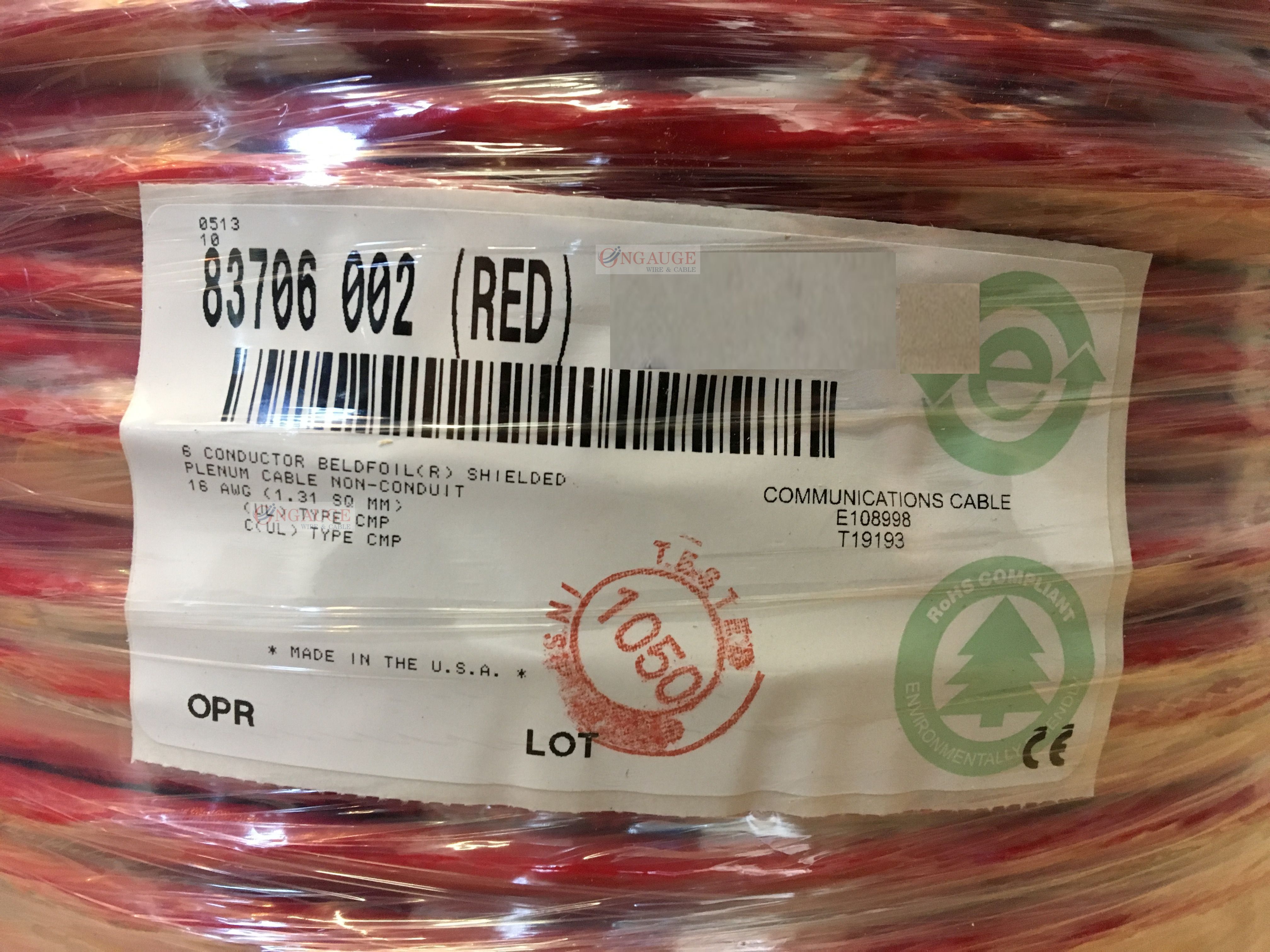

Belden 83706 002 Cable 16/6 Shielded #16 Wire FEP Plenum High Temp 25 FEET
Ships from the USA
Custom Cut Lengths Available
Bulk Pricing Available
Hablamos Español
Quick Specs
AWG16 AWG
Conductors6
Stranding19x29
Temperature200°C
InsulationFEP
JacketFEP
ShieldFoil & Braid
ApprovalsUL, CMP, RoHS
SKU83706-25FT
AvailabilityIn Stock
Why Buy From Us
- Over 20 years in business
- Custom lengths available
- Volume pricing for large orders
- Built for industrial and commercial buyers
Product Overview
6 Conductors AWG 16/Stranded Foil & Braid. Multi-Conductor - Audio, Control and Instrumentation Cable16 AWG stranded (19x29) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage) FEP jacket. FEP/FEP 200 Degrees C. (UL) CMP, RoHs.
Common Uses
- High-temperature wiring in plenum-rated environments
- Industrial instrumentation and process control
- Signal runs in air-handling spaces requiring heat resistance
- Facilities requiring both fire-rated and high-temp cable
Service Notes
- Need a custom length? Contact us for a special quote
- We accept PayPal and all major credit cards
- Volume pricing available — message us for bulk orders
- All trademarks are the property of their respective owners
Full Specifications
| Manufacturer | Belden |
|---|---|
| Part Number | 83706 |
| Description | Belden 83706 002 Cable 16/6 Shielded #16 Wire FEP Plenum High Temp 25 FEET |
| AWG | 16 AWG |
| Conductors | 6 |
| Stranding | 19x29 |
| Temperature | 200°C |
| Insulation | FEP |
| Jacket | FEP |
| Shield | Foil & Braid |
| Approvals | UL, CMP, RoHS |
| Listing Quantity | 25 Feet |
