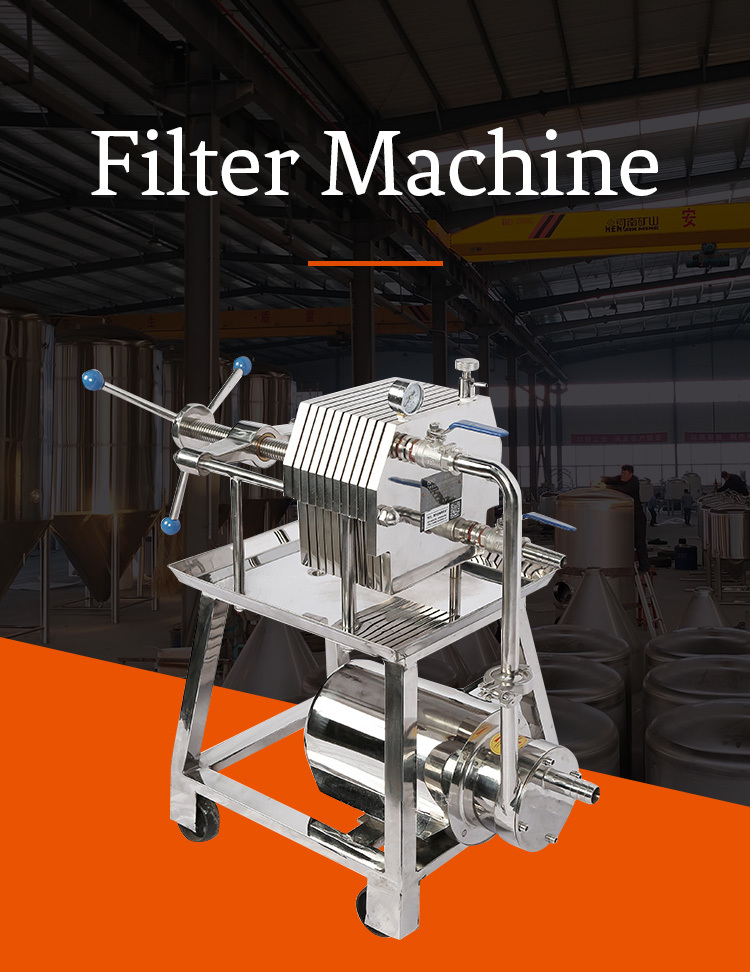

High quality beverage wine plate frame filter press/beer 10 layers filter with filter paper
NOTE:
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.

Voltage : 220V/380V

1.Stainless steel sandwich plate frame filter, apply to concentration below 50% viscosity is low, less fluid slag content as airtight filtering to achieve purification, sterilization, clarification etc fine filtration, half fine filtration requirements, microporous membrane filter for use directly, not through the microporous membrane filter can achieve aseptic filtration purpose).

2.The filter has big filter area, big flow, and the applicable scope is big, so in the pharmaceutical, chemical, food and other industries have extensive uses, used for filtering injection liquids in pharmaceutical factories, it has particularly good effects.

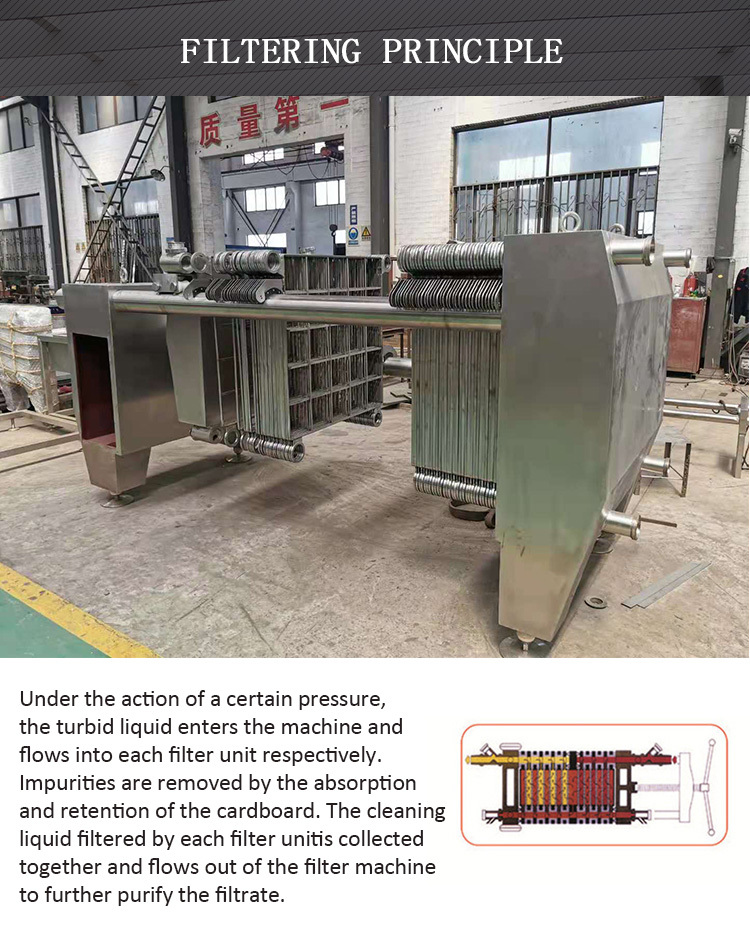

Principle:

The pressure filtration. Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.

Applicable object properties:

Corrosion resistance, low temperature material, high requirement on material etc.

Scope of application:

Used for all kinds of suspension of the solid-liquid separation, wide application scope. Used in medicine, food, chemical, environmental protection, water treatment, pharmaceutical, light industry, dyes, textile etc.

Power: 0.75KW



Plate Filter machine
Plate Layer
Filter area(m2)
Plate size(mm)
Filtration accuracy(um)
Filter Flow capacity(t/h)
Pump motor power(Kw)
100
0.078
Φ100
0.45
0.8
0.55
150
0.17
Φ150
0.45
1.5
0.75
200
0.314
Φ200
0.45
2
1.1
300
0.7
Φ300
0.45
4
1.1
400
0.25
Φ400
0.45
6
1.1
