Power pack package to operate a double acting cylinder on a variety of applications, complete with detachable two button pendent.


24v dc powerunit.
2.1cc/rev gear pump.
1.6kw 12vdc electric motor c/w relay and plastic motor cover.
5, 2.5,4.5, 7, 8, 11, 13 or 18 Litre reservoir c/w drain plug.
Powerpack complete with suction strainer, return oil conveyor and filler breather.
Horizontal mounting Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min. Adjustable flow control for cylinder decent control.
24v dc let down valve, relief and P line check. Port size 3/8 BSP.
2 Button detachable pendent on a 4 metre lead.
Suitable for all single acting applications.

With many added features such as detachable pendent for added security, removable plastic motor cover and a variation on which relief valve spring is fitted your are getting an exceptionally good quality product at a very competitive price.

The Flowfit 24VDC Single Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.

The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.

The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.

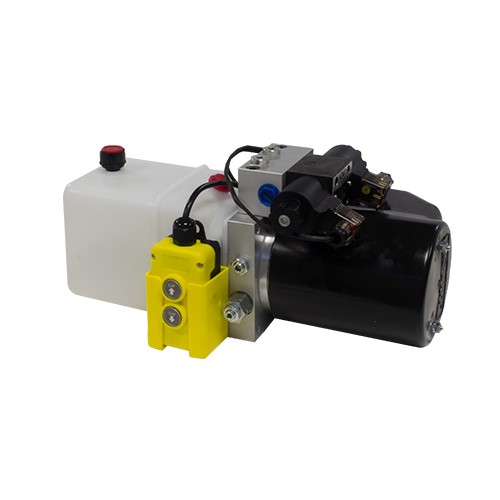

**2.5L Image Shown**
