Product Description

LCD Controller Board:

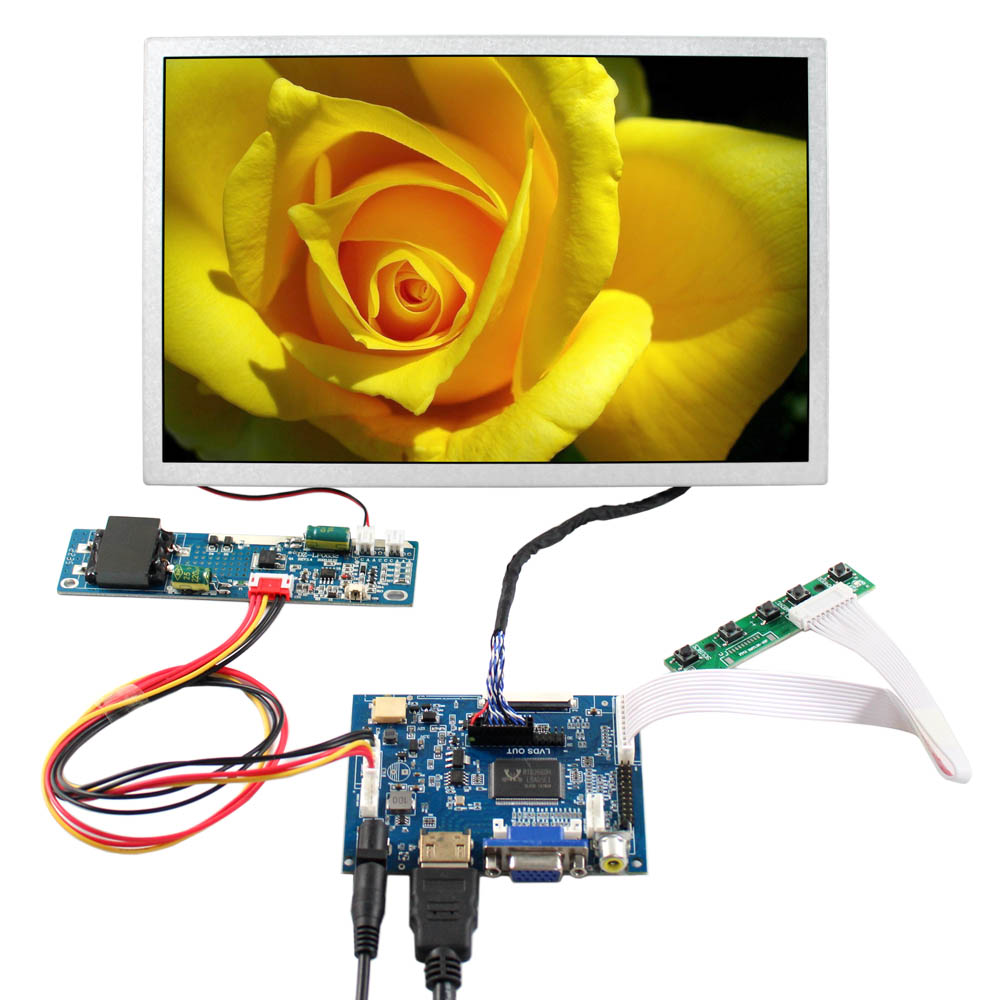

HD VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

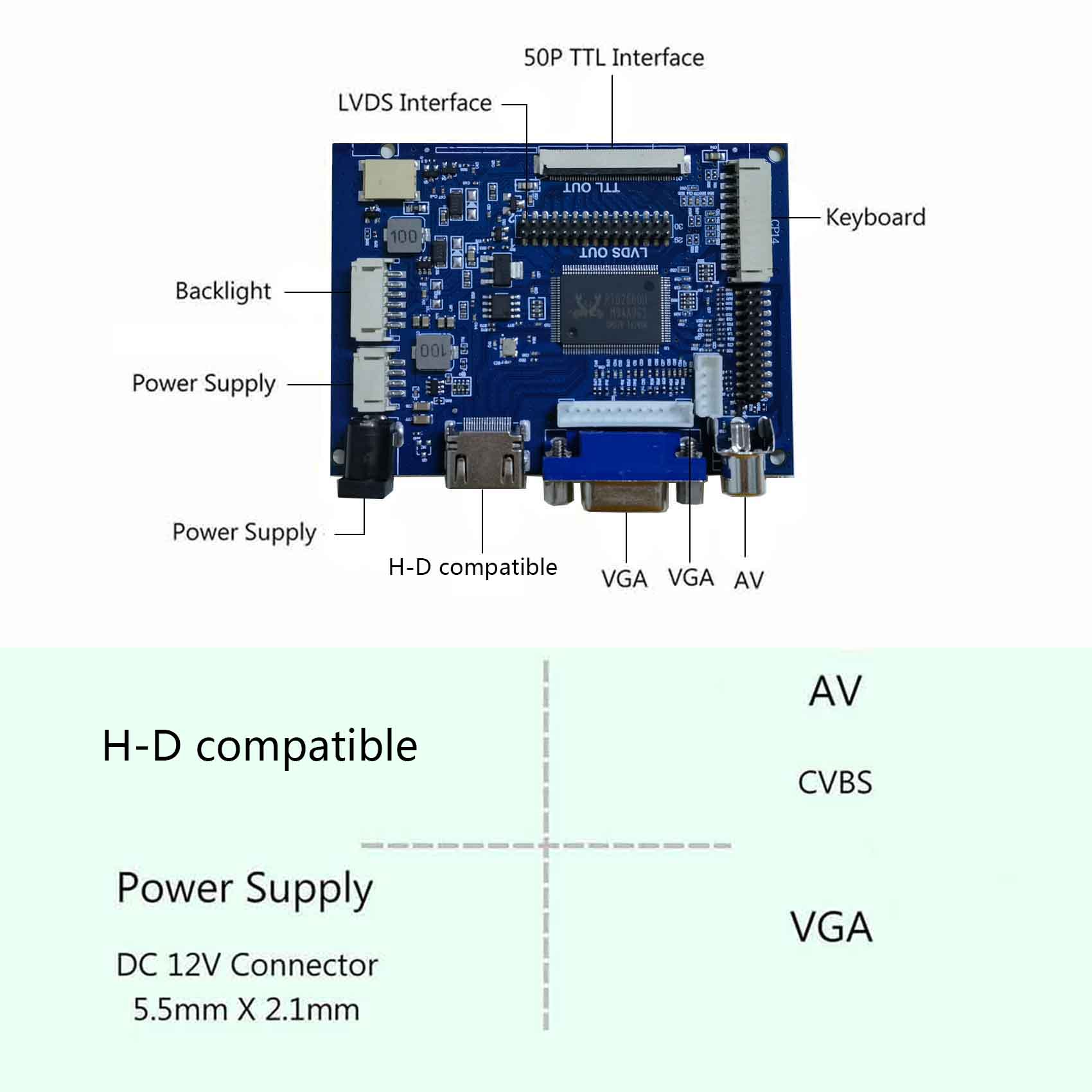

Video Input: HD VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

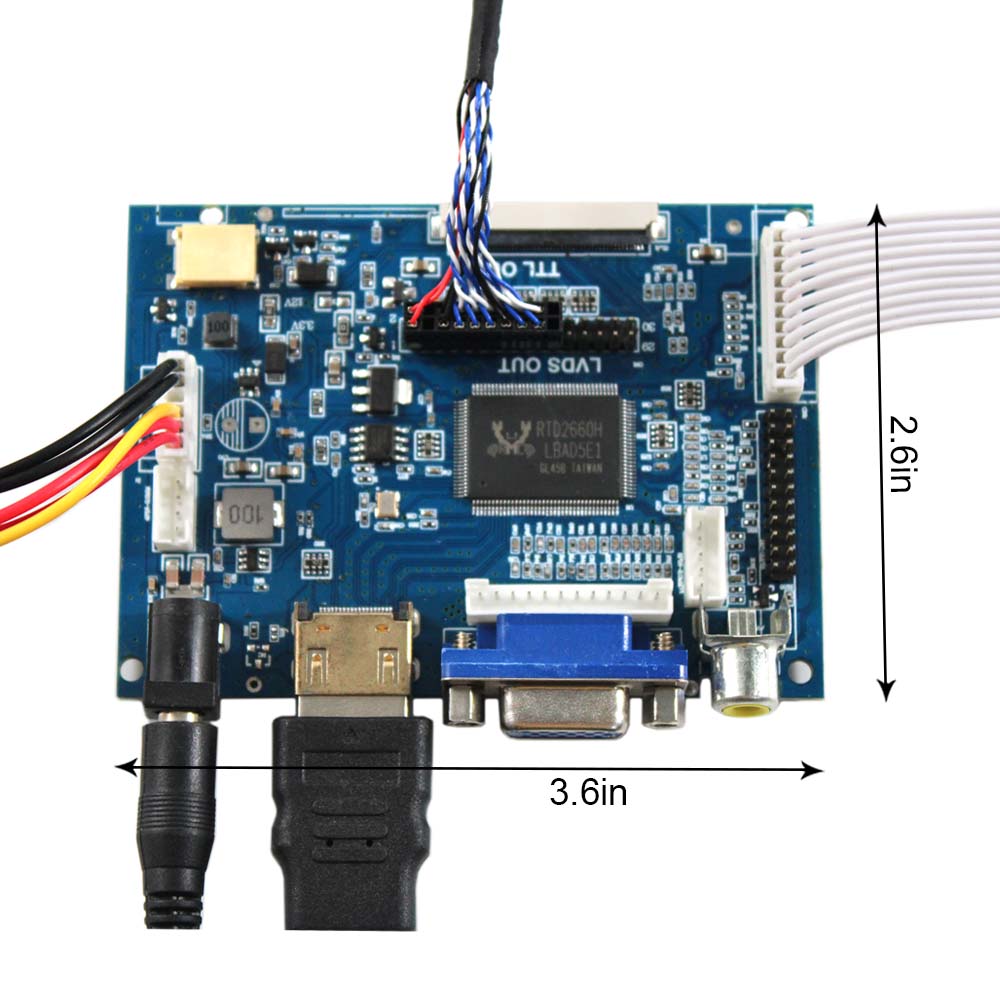

Board Size:91mm x 66mm x 12mm


10.1" EV101WXM-1000 1280X800 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1280(RGB)×800

Outline Size 233.2 × 152.9×10.4 (H×V×D)

Active Area 216.96× 135.6(H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

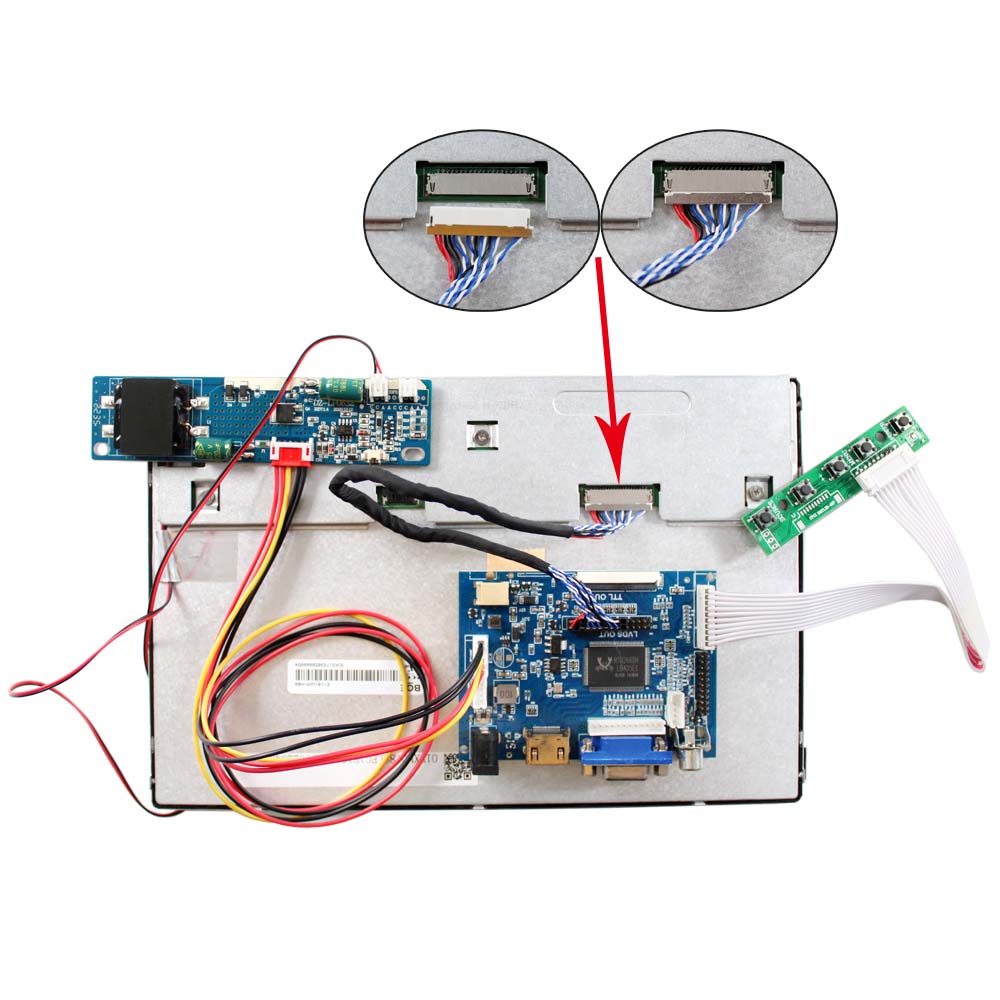

Signal Interface Parallel LVDS (1 ch, 8-bit) , 20 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

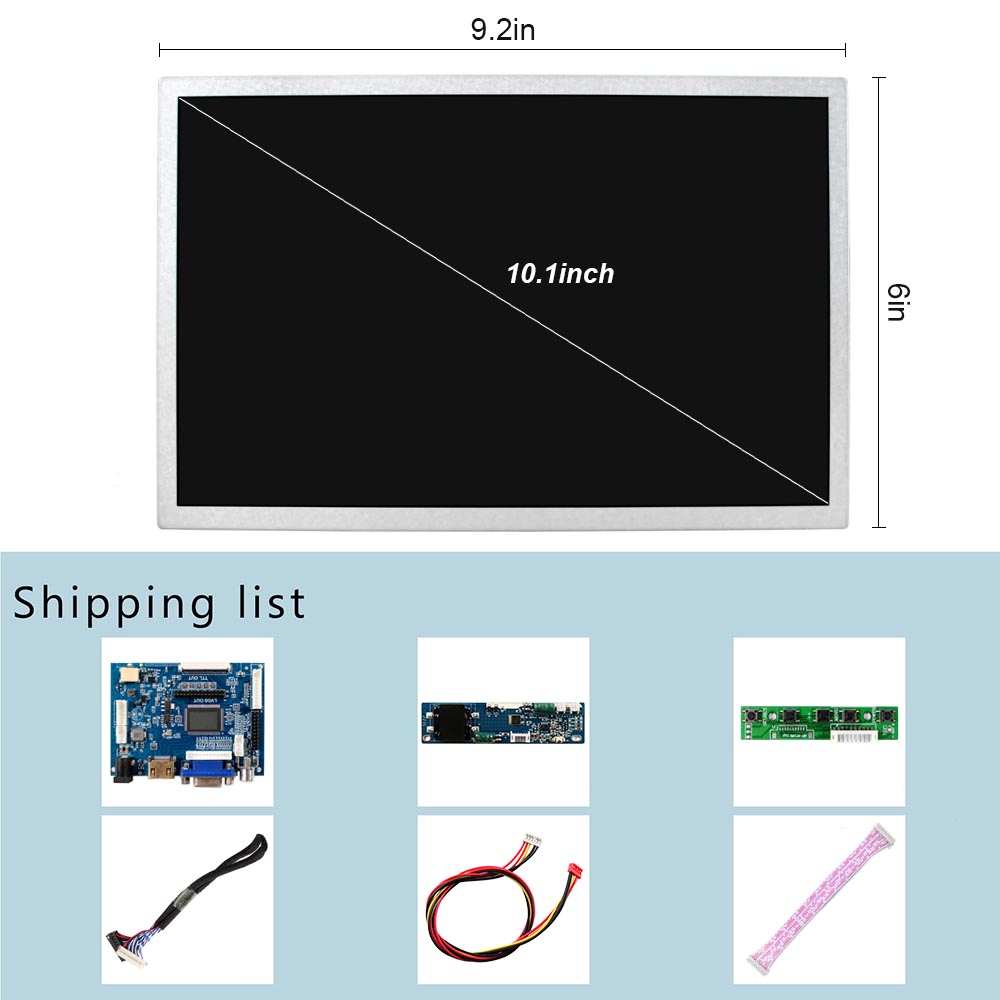

Packing list:

1× HD VGA AV LCD Controller Board VS-TY2662-V1

1x 10.1inch 1280x800 1000dc LCD Screen

1× Keyboard With Cable

1× Remote Control(Battery Not included)
