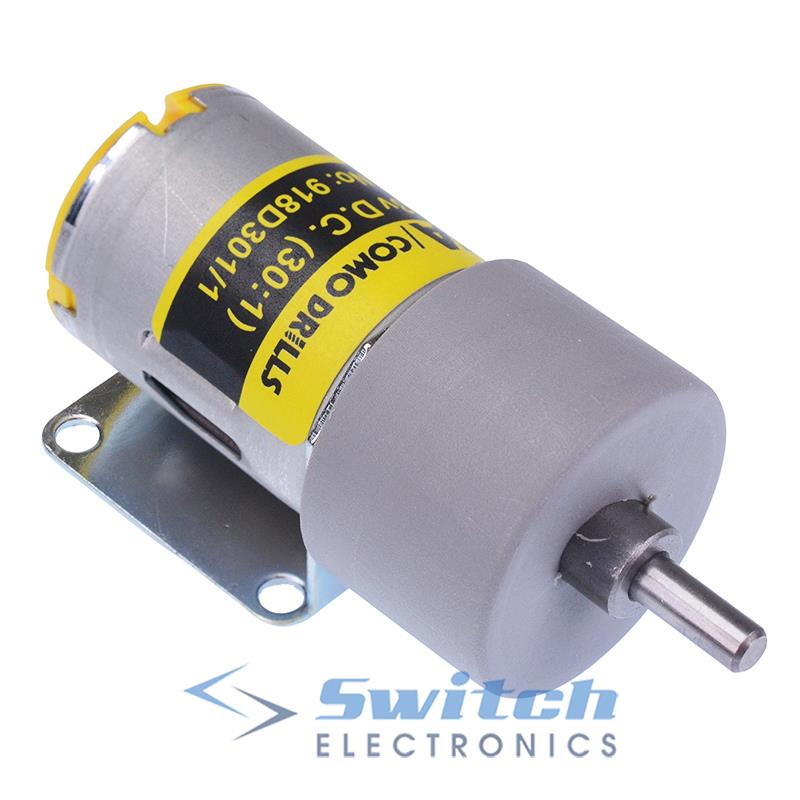

MFA 918D301 Gearbox and Motor DC 1.5-3V 30:1 100:1 250:1 500:1
£
16.39 - 18.39
The 918D301/1 is a 1.5-3V 3 pole DC motor with a single ratio gearbox. The gearbox is constructed from brass and steel and protected by a plastic cover to prevent the ingress of dust and dirt whilst also making it safer to touch. The motors are suitable for use with robots, models and light industrial applications.
- Operating range: 1.5-3V
- Nominal voltage: 3V
- No load current: 0.24A
- No load speed: 8800RPM
- 4mm output shaft
- Dimensions: 67.5 x 24mm (length x diameter)
- Weight 75g
| Gear Ratio | No Load Gear Speed |
|---|---|
| 30:1 | 293RPM |
| 100:1 | 88RPM |
| 250:1 | 35RPM |
| 500:1 | 18RPM |
