Product Description

Connection the LCD Controller Board:


PIN #

SIGNAL NAME

DESCRIPTION

1

VSEL

Power for panel

2

VSEL

Power for panel

3

VSEL

Power for panel

4

GND

Ground

5

GND

Ground

6

GND

Ground

7

RXO0-

Negative LVDS differential   data input

8

RXO0+

Positive LVDS differential   data input

9

RXO1-

Negative LVDS differential   data input

10

RXO1+

Positive LVDS differential   data input

11

RXO2-

Negative LVDS differential   data input

12

RXO2+

Positive LVDS differential   data input

13

GND

Ground

14

GND

Ground

15

RXOC-

Negative LVDS differential   clock input

16

RXOC+

Positive LVDS differential   clock input

17

RXO3-

No Connection

18

RXO3+

No Connection

19

RXE0-

LVDS EVEN 0 - Signal

20

RXE0+

LVDS EVEN 0 + Signal

21

RXE1-

LVDS EVEN 1 - Signal

22

RXE1+

LVDS EVEN 1 + Signal

23

RXE2-

LVDS EVEN 2 - Signal

24

RXE2+

LVDS EVEN 2 + Signal

25

GND

Ground

26

GND

Ground

27

RXEC-

LVDS EVEN Clock - Signal

28

RXEC+

LVDS EVEN Clock + Signal

29

RXE3-

LVDS EVEN 3 - Signal

30

RXE3+

LVDS EVEN 3 + Signal

Connection the LCD Screen:


1

VCC

Power Supply

2

VCC

Power Supply

3

GND

Ground

4

GND

Ground

5

Odd_RxIN0-

Negaive LVDS differential   data input

6

Odd_RxIN0+

Positive LVDS differential   data input

7

Odd_RxIN1-

Negaive LVDS differential   data input

8

Odd_RxIN1+

Positive LVDS differential   data input

9

Odd_RxIN2-

Negaive LVDS differential   data input

10

Odd_RxIN2+

Positive LVDS differential   data input

11

Odd_RxCLKIN-

Negaive LVDS differential   clock input

12

Odd_RxCLKIN+

Positive LVDS differential   clock input

13

NC

No Connection

14

NC

No Connection


Compatible Work With:

LTM10C306L LTM10C306K LTM10C306S LTM10C306Y

Packing list :

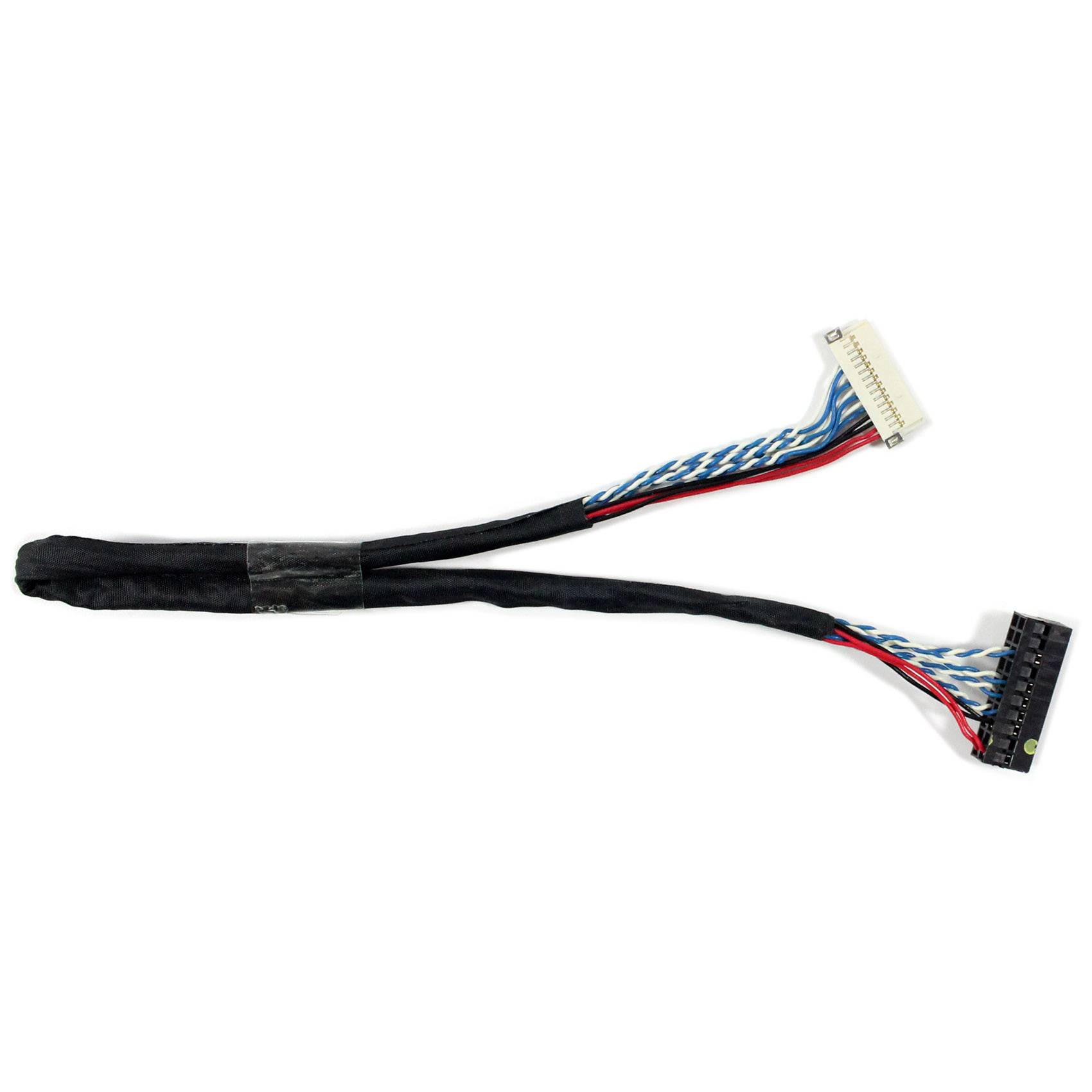

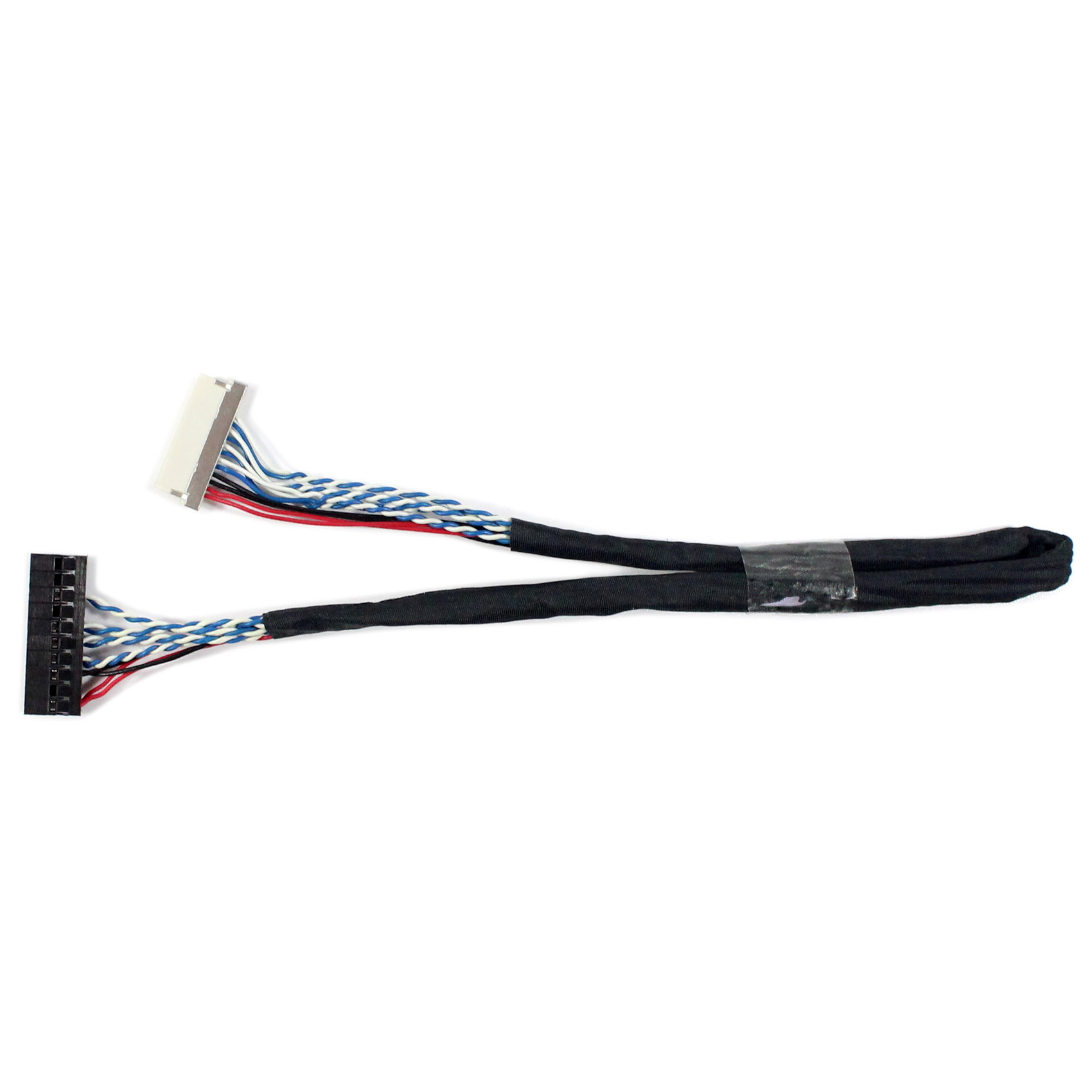

1× DF19-14P 2ch 6bit LVDS cable Length=250mm
