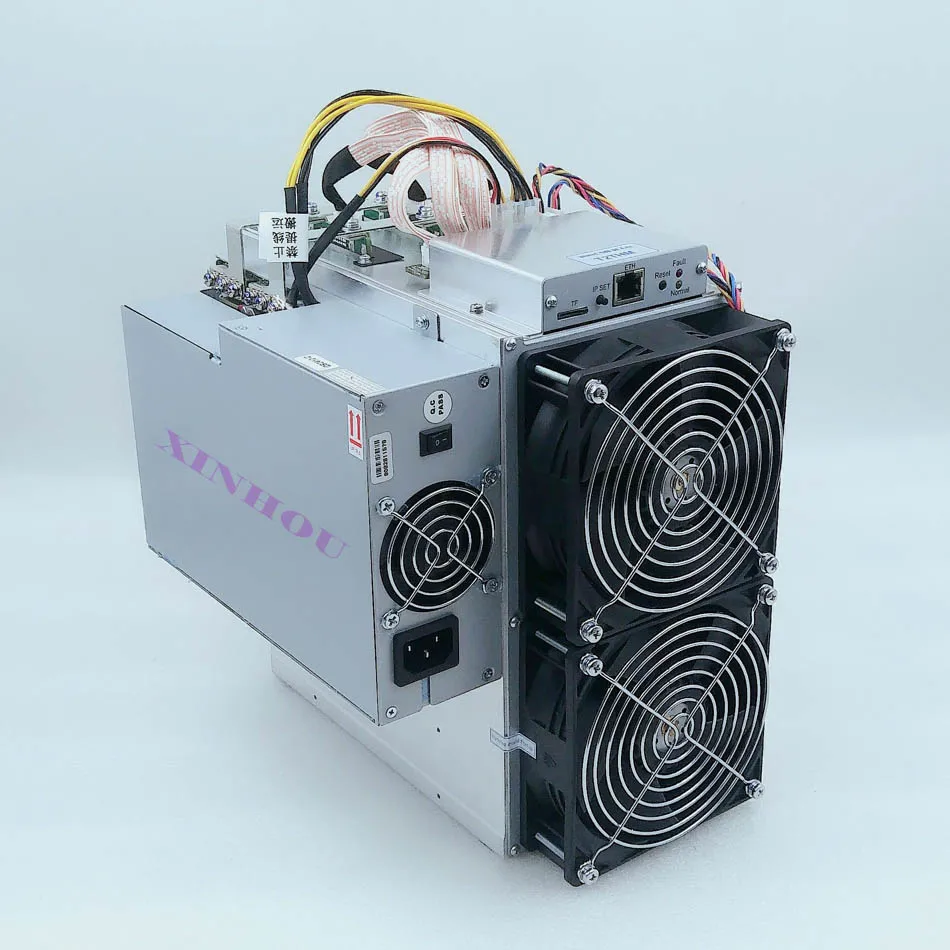

BTC BCH miner power supply G1266 PSU For ASIC Innosilicon T2T 30t
The 1266 power supply ----------- 1 PC
| tput |
DC Voltage |
10~16.4V |
| Rated Current (220V input) |
180A/12V |
| Rated Power (220V three input) |
2160W/12V |
| Maximum Total Output Power |
2160W |
| Ripple & Noise |
≤360mVpp |
| Voltage Accuracy |
±50mV |
| Voltage Regulation |
10~16.4V |
| Load Regulation |
≤±2% |
| Setup, Rise Time |
≤300ms |
| Power off Protection Trip Time |
≥5ms |
| Input |
Voltage Range |
185-280Vdc |
| Frequency Range |
47~63Hz |
| Power Factor |
0.95~0.99 |
| Protection |
Low-voltage Protection |
≤180V |
| Output Short Circuit |
Yes |
| Output Overcurrent |
Yes |
| Overheat Protection |
Yes |
| Environment Conditions |
Operating Temperature |
-20~50℃ |
| Altitude |
≤4000m |
| Operating Humidity |
5~95% |
| Efficiency |
Full Load Output |
≥93% |
| Structure |
Dimensions |
221.5mm*156.5mm*67mm |
| Cooling |
Fan |
(Note :the item not include the miner)
