Victron Energy SIN121251100

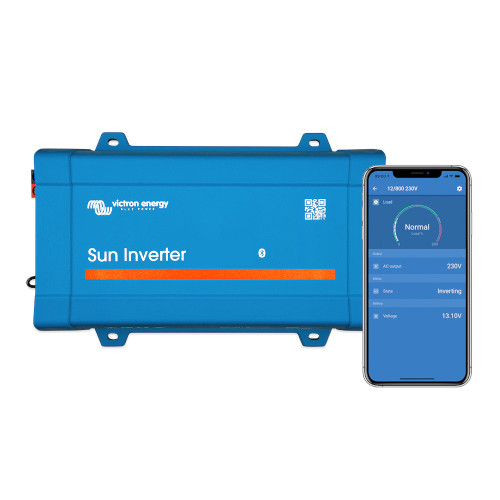

The Sun Inverter combines a sinewave inverter and a PWM solar charger in one enclosure and is easy to install, with a minimum of wiring.

The inverter allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V or 24V.

The solar charger ensures that the batteries are being charged by energy harvested from your solar panels. The charge algorithm is programmable.

The inverter and solar charger parameters can be read out via Bluetooth using the VictronConnect app. In addition to this, the inverter has a VE.Direct Port for connection to a GX device or GlobalLink 520 for system monitoring.


Features
Proven reliability

The full bridge plus toroidal transformer topology has proven it's reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.


High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.


ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a pre-set value (min load: 15W). Once in standby, the inverter will switch on for a short period (adjustable, default: every 2.5 seconds). If the load exceeds a pre-set level, the inverter will remain on.


PWM solar charger

The solar charger ensures that the batteries are charged by energy harvested from your solar panels. The charge algorithm is programmable.

Remote on/off
The Phoenix Inverter Control VE.Direct Remote Panel (not included) can be used to turn the inverter on or off remotely. Alternatively, a remote on/off switch can be connected to a two-pole connector or between battery plus and the left-hand contact of the two-pole connector.

LED diagnostic
Please see manual for description.

Bluetooth
The inverter and solar charger parameters can be read and monitored via Bluetooth using the VictronConnect app.

VE.Direct communication port
The VE.Direct Port can be used for connection to a GX device or GlobalLink 520 for system monitoring.


Monitoring via the VictronConnect app or GX device:

Inverter in - and output voltage and % load

Solar power, voltage, and current

Operational state and alarms

Fully configurable via the VictronConnect app:

Low battery voltage alarm trip and reset levels

Low battery voltage cut-off and restart levels

Dynamic cut-off: load dependent cut-off level

Output voltage 210 - 245V and Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode sense level

Battery charge current, algorithm, and voltages

Battery charge temperature compensation or low temperature cut off level

To transfer the load to another AC source: the automatic transfer switch
For our low-power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a vary short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC and PV connections with screw terminals
No special cable terminals or tools are needed for installation

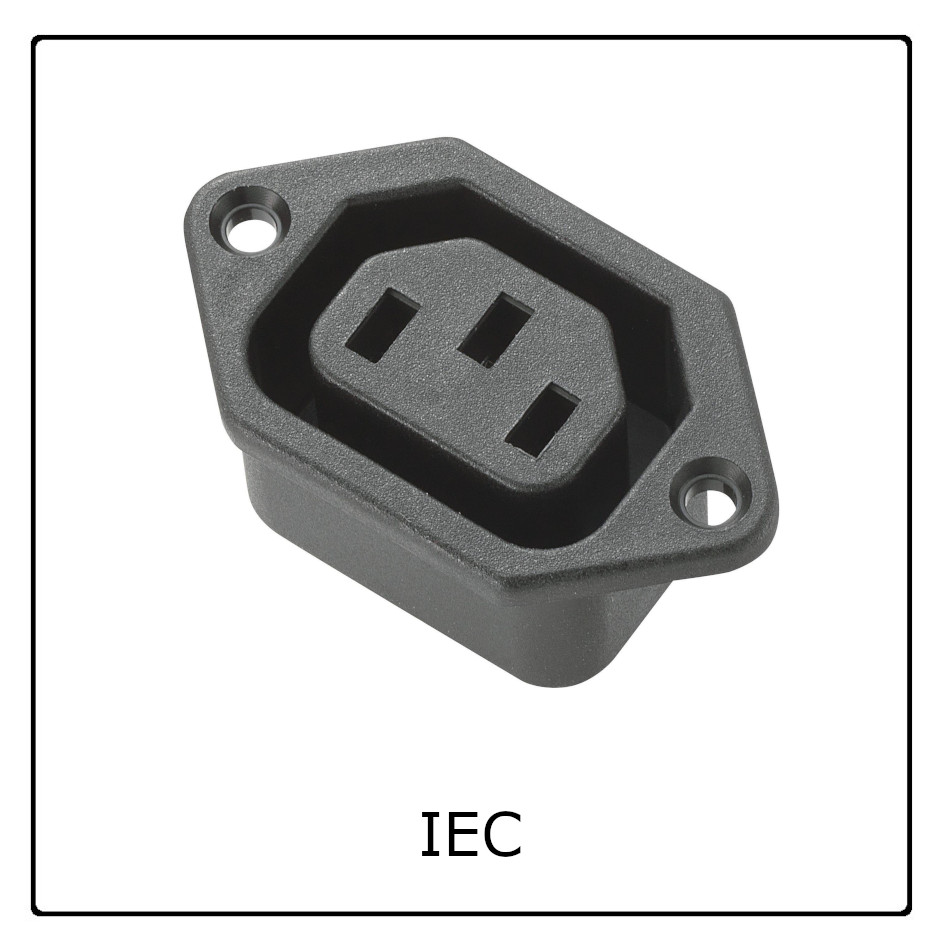

Available with an IEC-320 socket
An IEC-320 male plug is included.

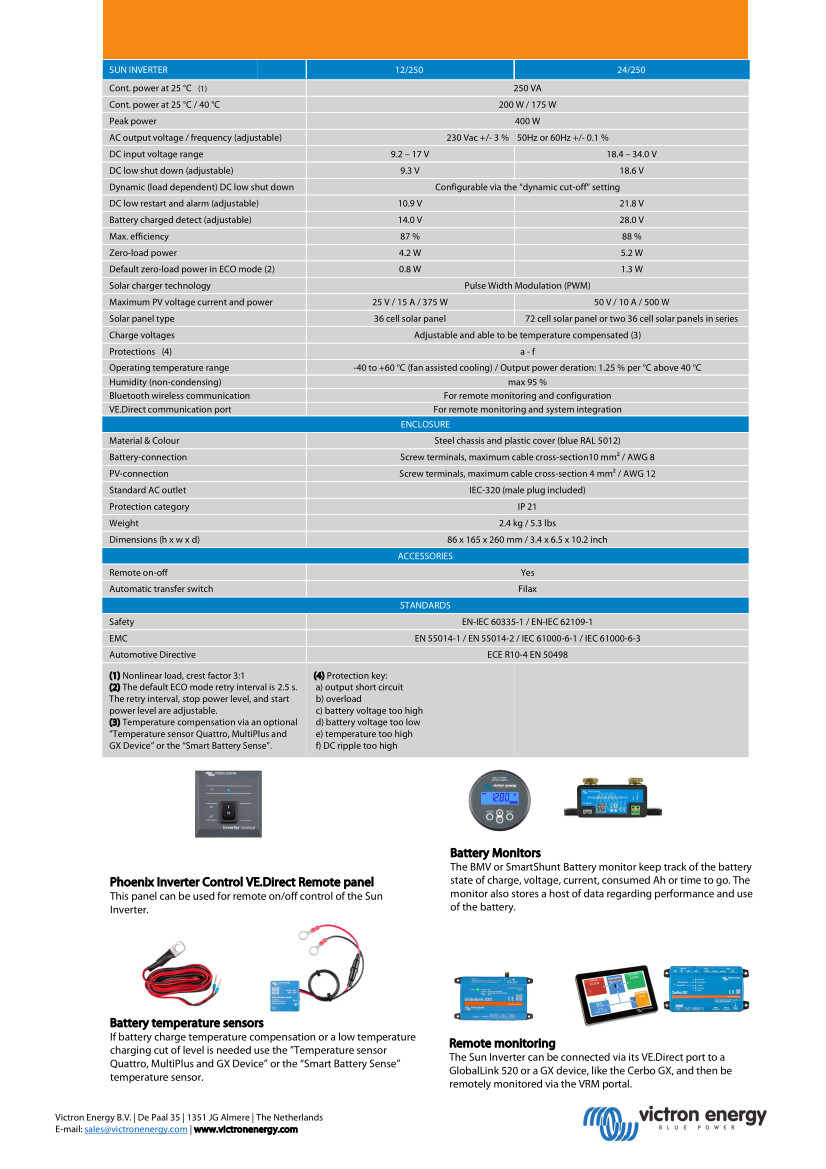

 Technical Specification



 GTIN

 8719076053699

 Voltage

 12V

 Cont. Output Power at 25°C

 250VA

 Peak Power

 400W

 Output AC Voltage

 230V

 Efficiency 87%

 Protection Category

 IP21

 Bluetooth Enabled

 Yes

 Plug Type IEC

 Dimensions

 H86 x W165 x D260mm

 Weight

 2.4Kg

 Warranty

 5 Years

 Country of Manufacture

 India
