lease pay attention:

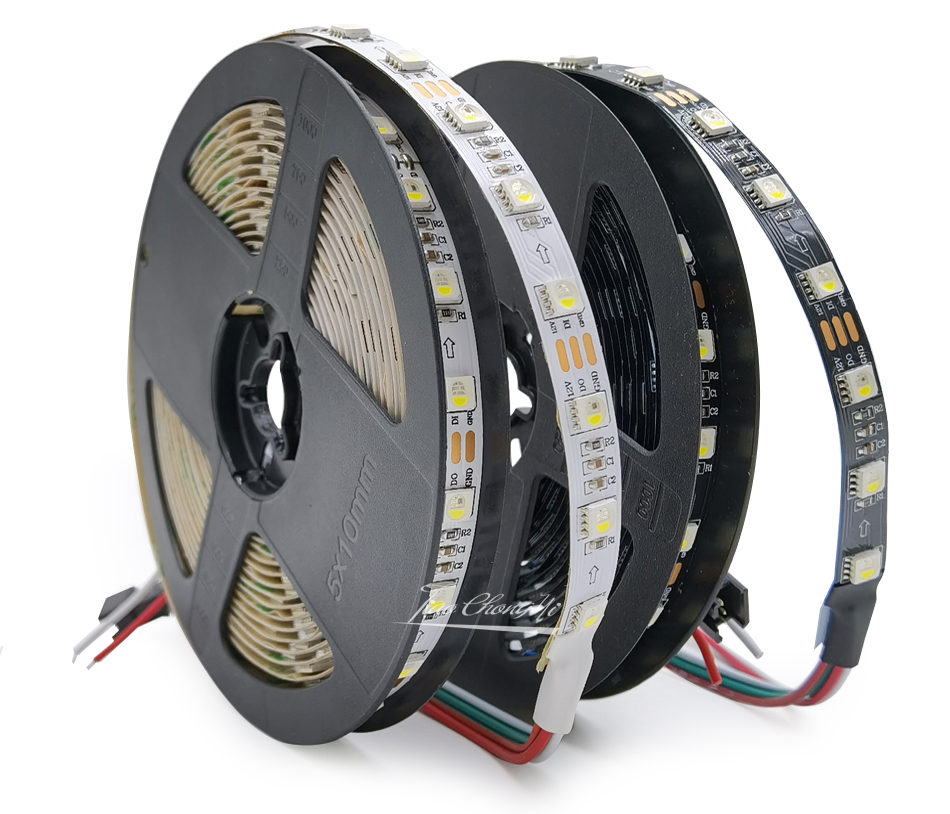

White : White PCB

Black : Black PCB

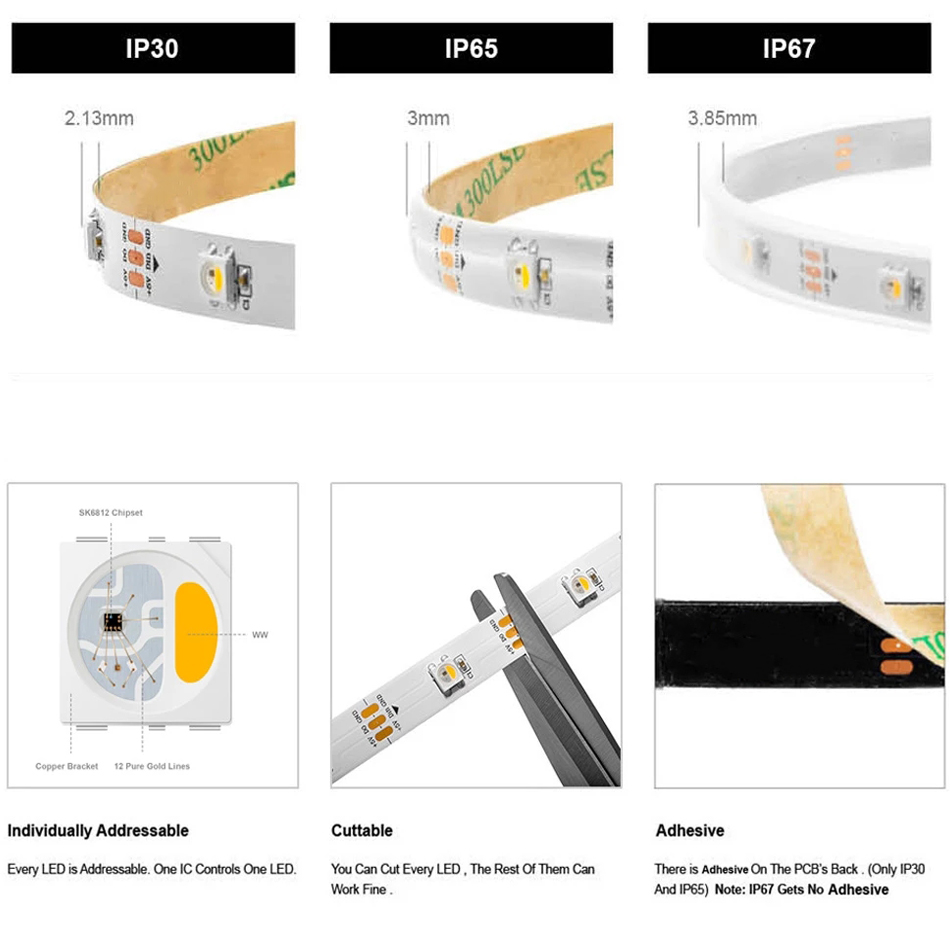

IP30: Non- waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in Silicon Tube

RGBW = RGB + Cool White (6000-6500k)

RGBWW= RGB + Warm White (3000-3500k)

Description:

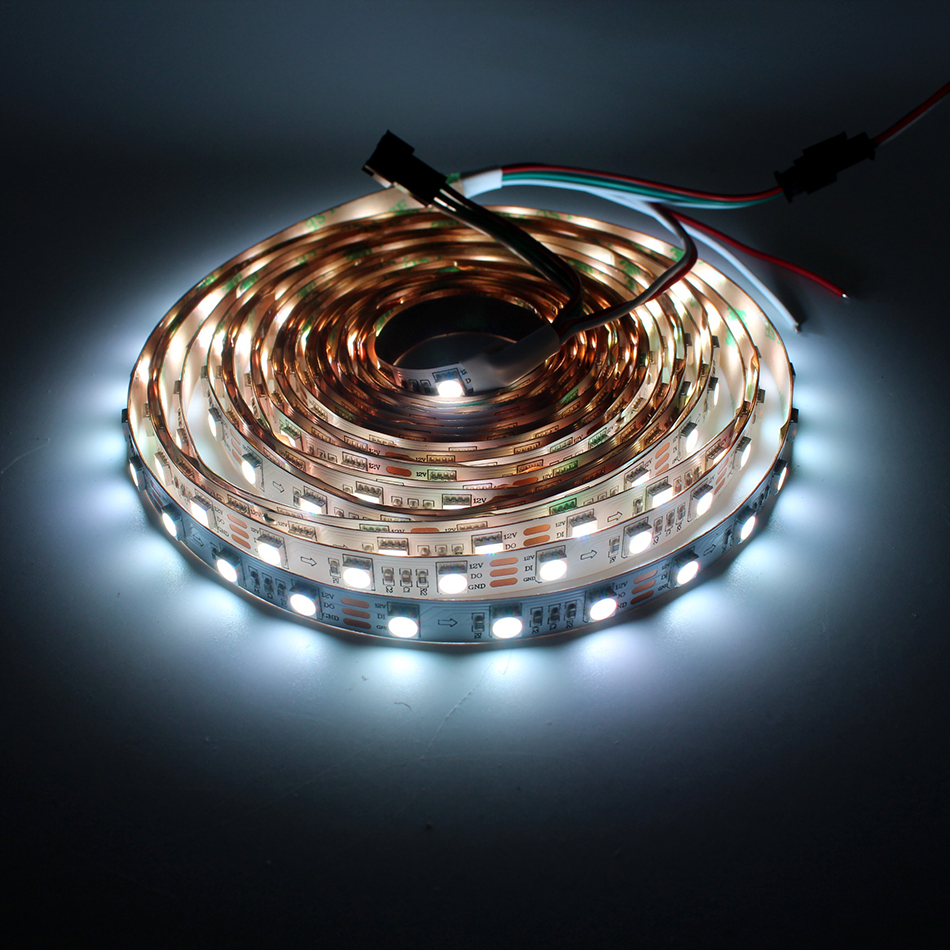

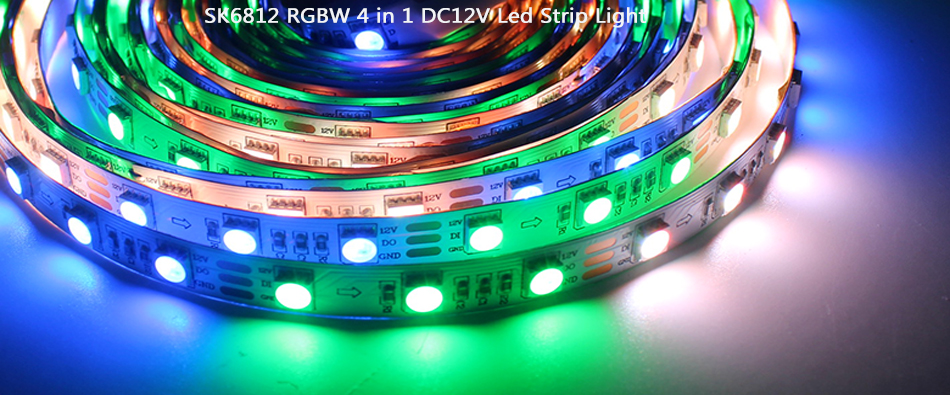

LED source :5050SMD RGBW built-in SK6812 chip

Voltage: DC12V

Power: 15W/M

LED type :SMD5050

IC type :SK6812(similar to WS2812B)

LED/per meter: 60 leds/Meter

IC/per meter: 20 IC/Meter ( 1 LEDS with IC , and 2 LEDS without IC)

Grey Grade: 256

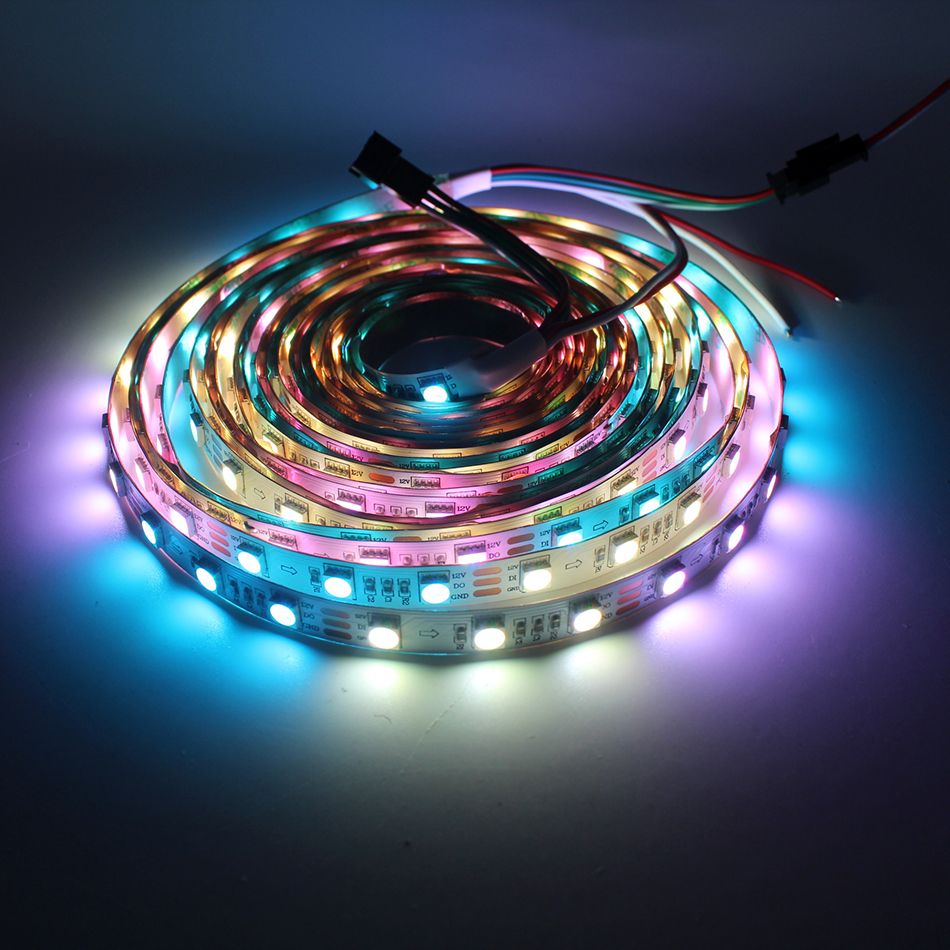

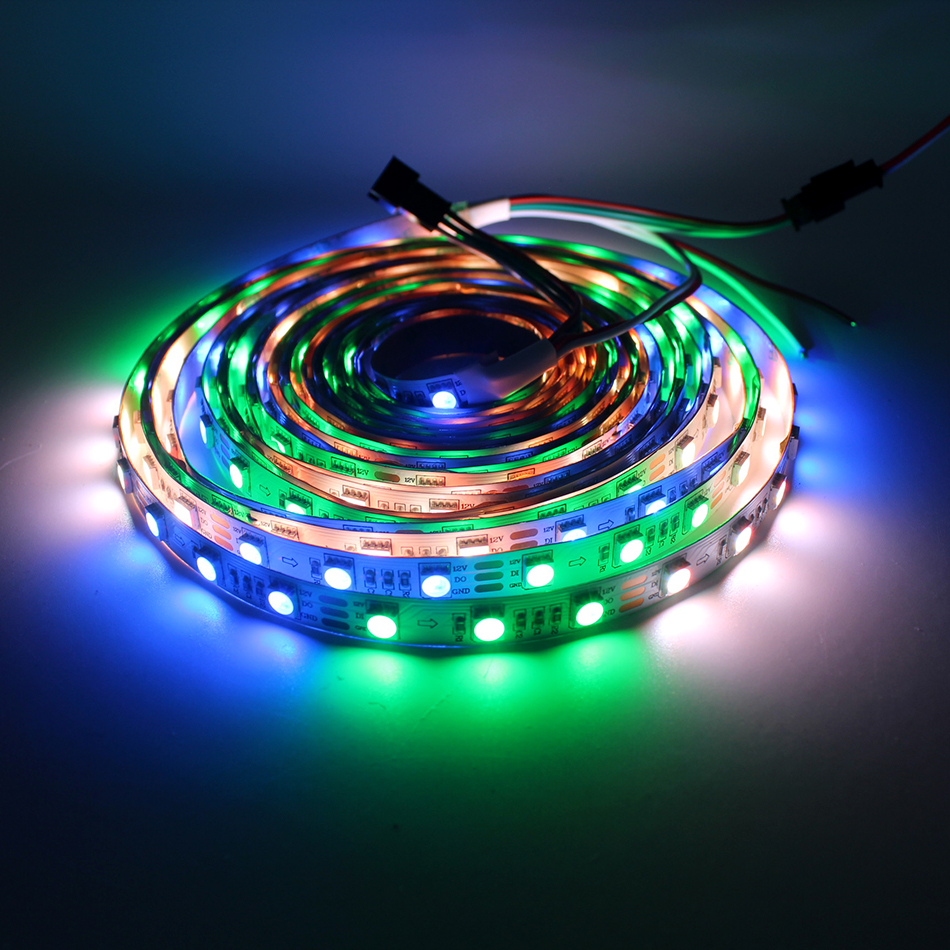

Color: RGBW(RGB+Warm White/White)

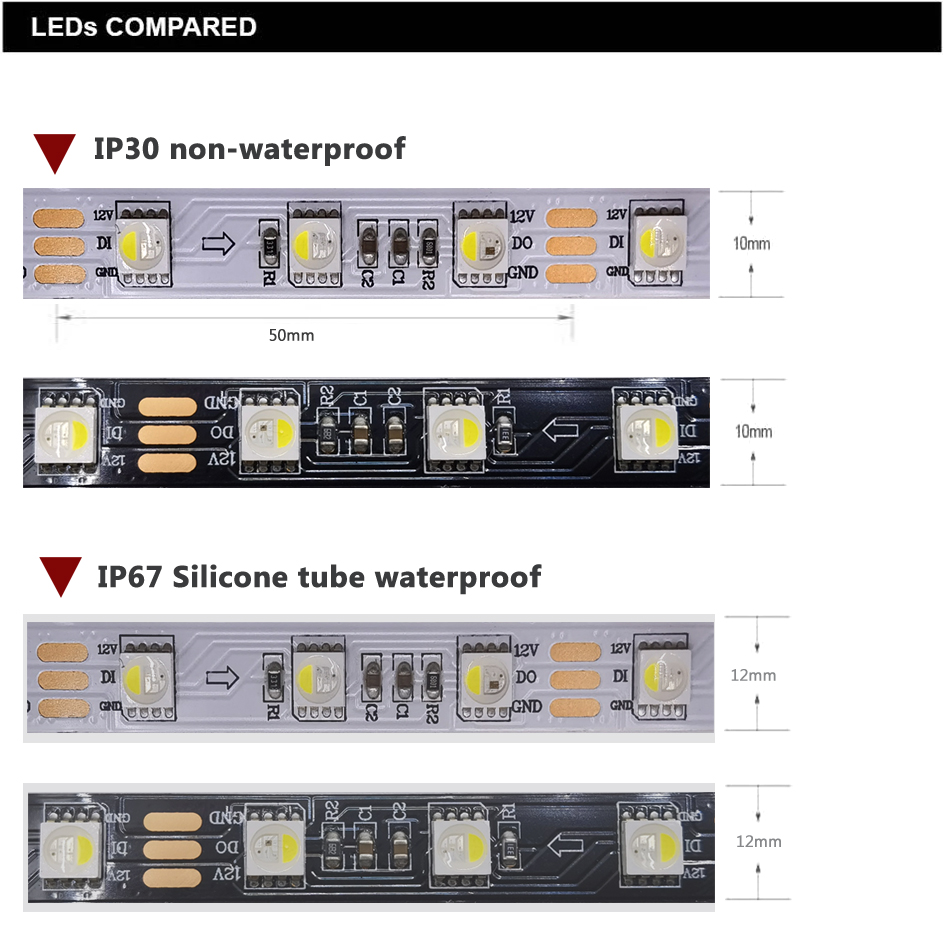

FPC size: Width: 10mm, High: 2.5mm

Cuttable:every LED is cuttable;

Features:

1.l Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.

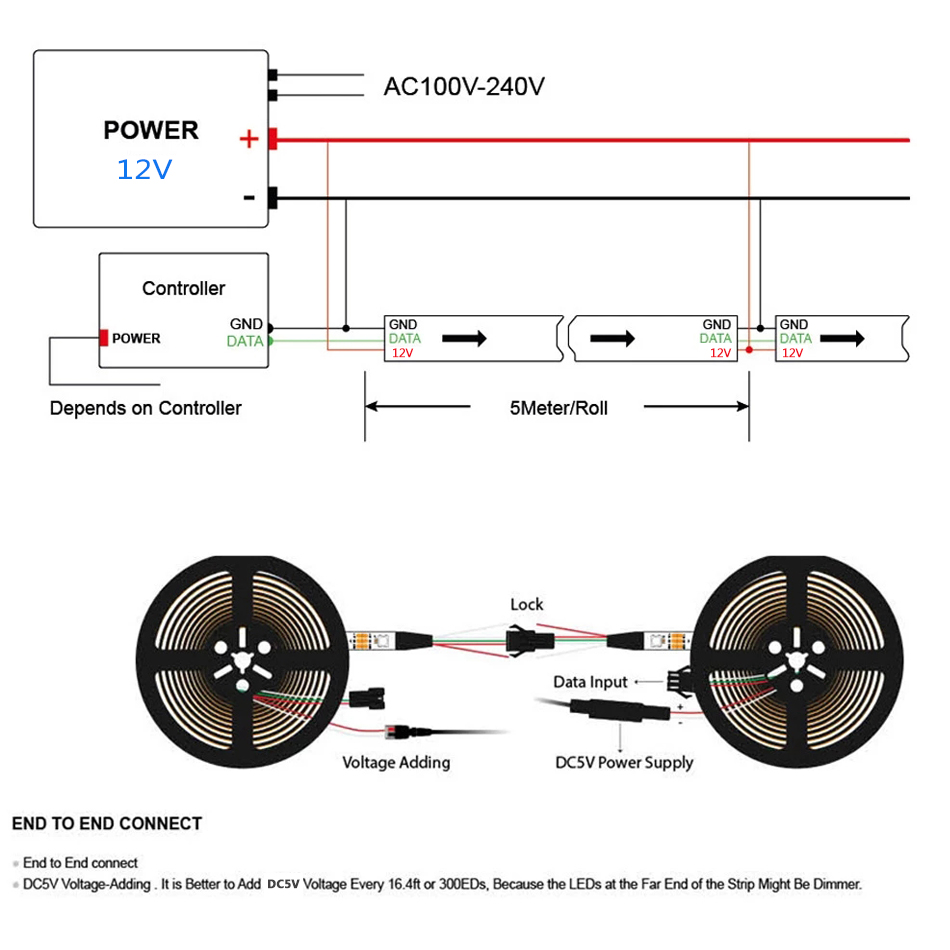

2.l The control circuit and the LED share the only power source.

3.l Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.

4.l Built-in electric reset circuit and power lost reset circuit.

5.l Cascading port transmission signal by single line.

6.Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limitedby signal transmission speed.

7. The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power,and long life.

8. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels.

9. high intensity and reliability, Long lifespan >50,000 hours

Please note that since the development of this light beads, there are occasional dead leds. If the light strip you receive has the following phenomena, please try to repair it by yourself. It's very simple. Please don't rush to open a dispute. Thank you. Cut three dead leds and reweld the rest. Will work.
