Main Features:
1.Forward/Reversed/VSWR ration in one push button.
2.LED backlight display for easy reading.
3.Powered by AAA batteries/ external USB port.
4.Applicable rechargeable battery.
5.Micro USB-DC 5V output (not include adapter).
6.Convenient control layout for ease operation.
1.Forward/Reversed/VSWR ration in one push button.
2.LED backlight display for easy reading.
3.Powered by AAA batteries/ external USB port.
4.Applicable rechargeable battery.
5.Micro USB-DC 5V output (not include adapter).
6.Convenient control layout for ease operation.
Specifications
Frequency range 130-150MHz, 430-520MHz (commercial band applied)
Center calibrated: 145Mhz(VHF) 435Mhz(UHF)
Measurable power range 0 - 120WMax. Power 120W
Accuracy 5W range (AVG) +/- 10%
Accuracy 120W range (AVG) +/- 5%
Min. Power for SW 1W
Insertion loss 0.3 dB or lower
Testing functions Forward, SWR
Impedance 50 ohm
Dimension 70W x 78H x 30D mm
Weight 220 g
Connector MJ - MJ (N optional)
Feature

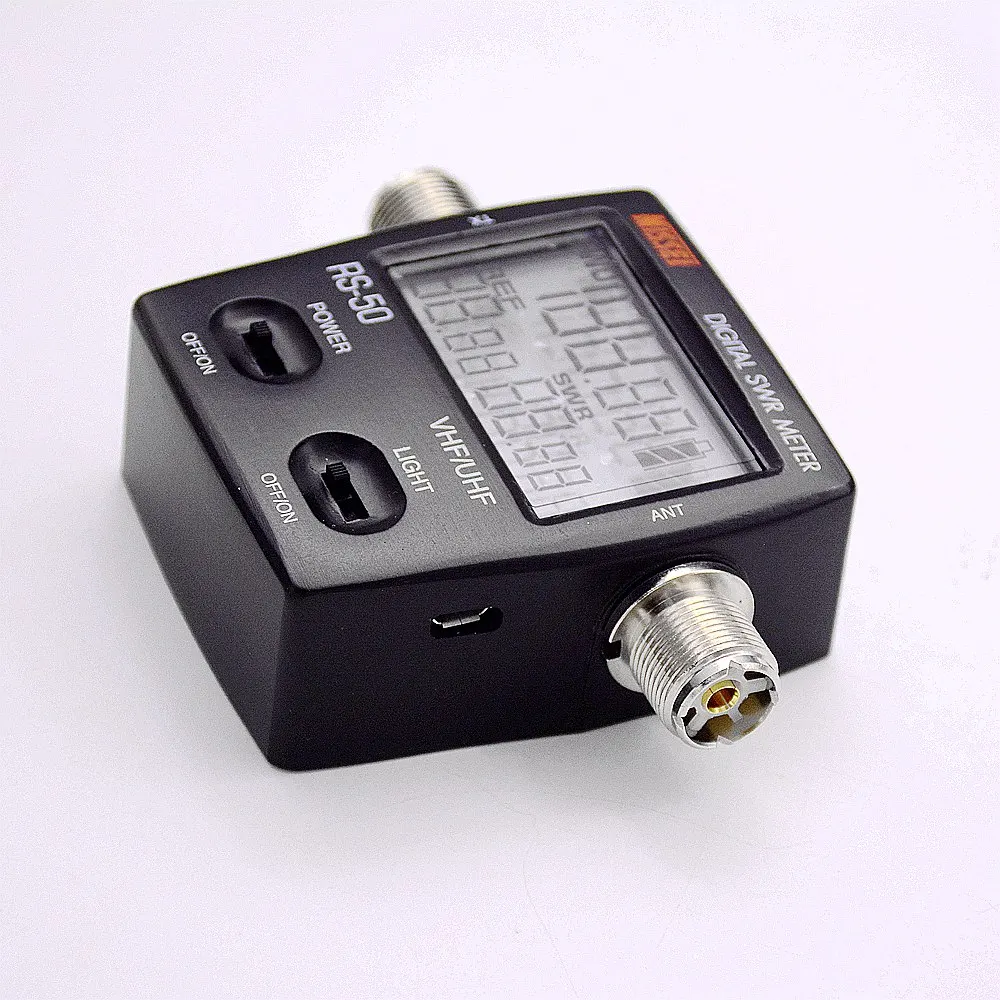

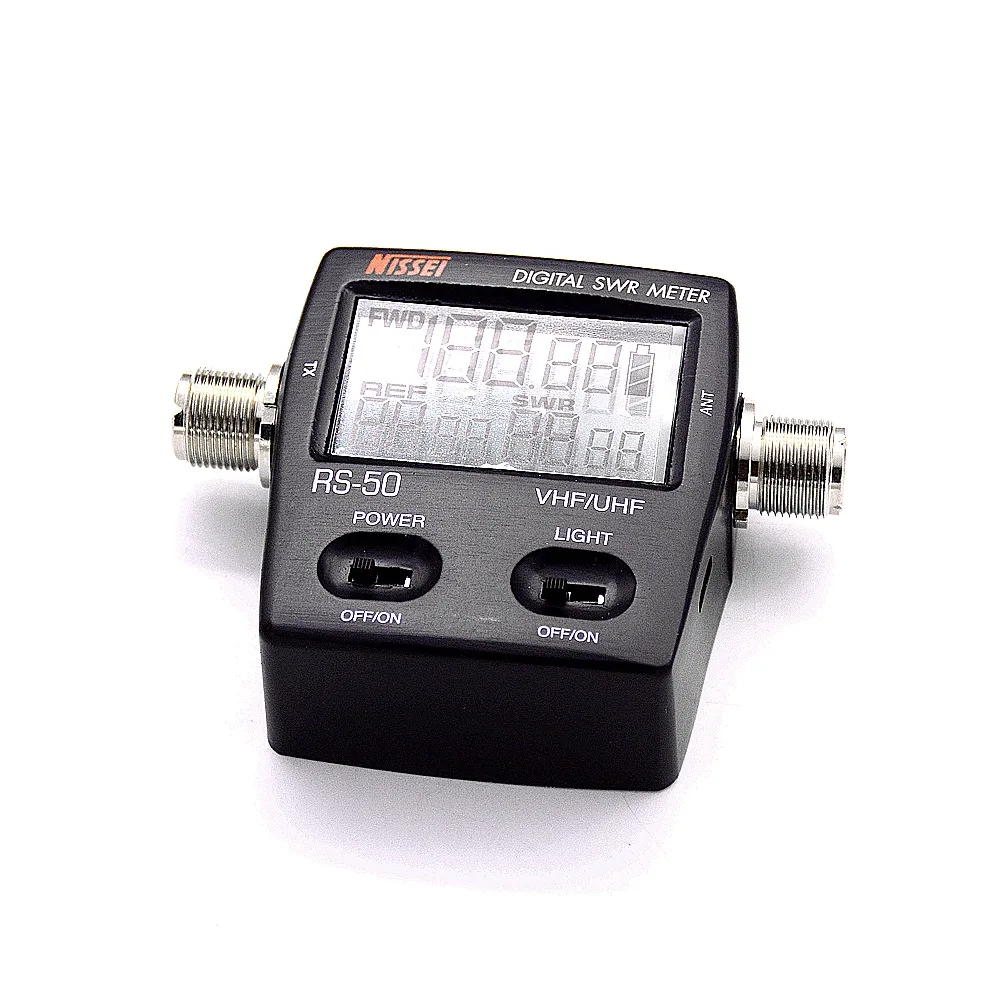

RS-50 SWR&POWER meter can read out directly without any
calibration. RS-50's maximum measurable power range up to 120W. Low insertion
loss structure allows it to be connected permanently.
Measurement:
1, Apply output of transceiver to "TX" and antenna or load to "ANT".
2."POWER" on for ready to use.
3.LCD display show simultaneously "Fwd/Rev Power and SWR".
4.For back-light, please switch "LIGHT" to "ON".
No function in 30 seconds, the backlight will automatically off.
Once PTT launched, the backlight will be back.
1, Apply output of transceiver to "TX" and antenna or load to "ANT".
2."POWER" on for ready to use.
3.LCD display show simultaneously "Fwd/Rev Power and SWR".
4.For back-light, please switch "LIGHT" to "ON".
No function in 30 seconds, the backlight will automatically off.
Once PTT launched, the backlight will be back.
Battery installation:
1.Remove the black screw from the cover to open the rear panel.
2.Install 2 pcs "AAA" batteries.
3.Can be used with alkaline or Ni-Ca, Ni-MH rechargeable battery.
4.This unit has no built-in charging circuitry.
5.Be sure to correct polarity of battery.
6.Remove the battery if the unit won't be used in long period.
1.Remove the black screw from the cover to open the rear panel.
2.Install 2 pcs "AAA" batteries.
3.Can be used with alkaline or Ni-Ca, Ni-MH rechargeable battery.
4.This unit has no built-in charging circuitry.
5.Be sure to correct polarity of battery.
6.Remove the battery if the unit won't be used in long period.
| MODEL | RS-50 | RS-70 |
| Frequency range | 125 - 525 MHz | 1.6-60 MHz |
| Measurable power range | 0 - 120W | 0 - 200W |
| Max. Power | 120W | 200W |
| Accuracy | (AVG) +/- 5% | |
| Insertion loss | 0.3 dB or lower | |
| Testing functions | Fwd/Rev Power, SWR | |
| Impedance | 50 ohm | |
| Power source | Battery - "AAA" x 2pcs / Micro USB port | |
| AC110-240V (adapter output 5V / 2.0A) | ||
| Connector | SO-239 ("N" type optional ) | |
| Dimension | 70W x 78H x 30D mm | |
| Net Weight | 220 g (No batteries) | |
Packing List:
1 x NISSEI RS-50 Power Meter
1 x NISSEI RS-50 Power Meter
1 x Engilsh Manual
