Product Information：

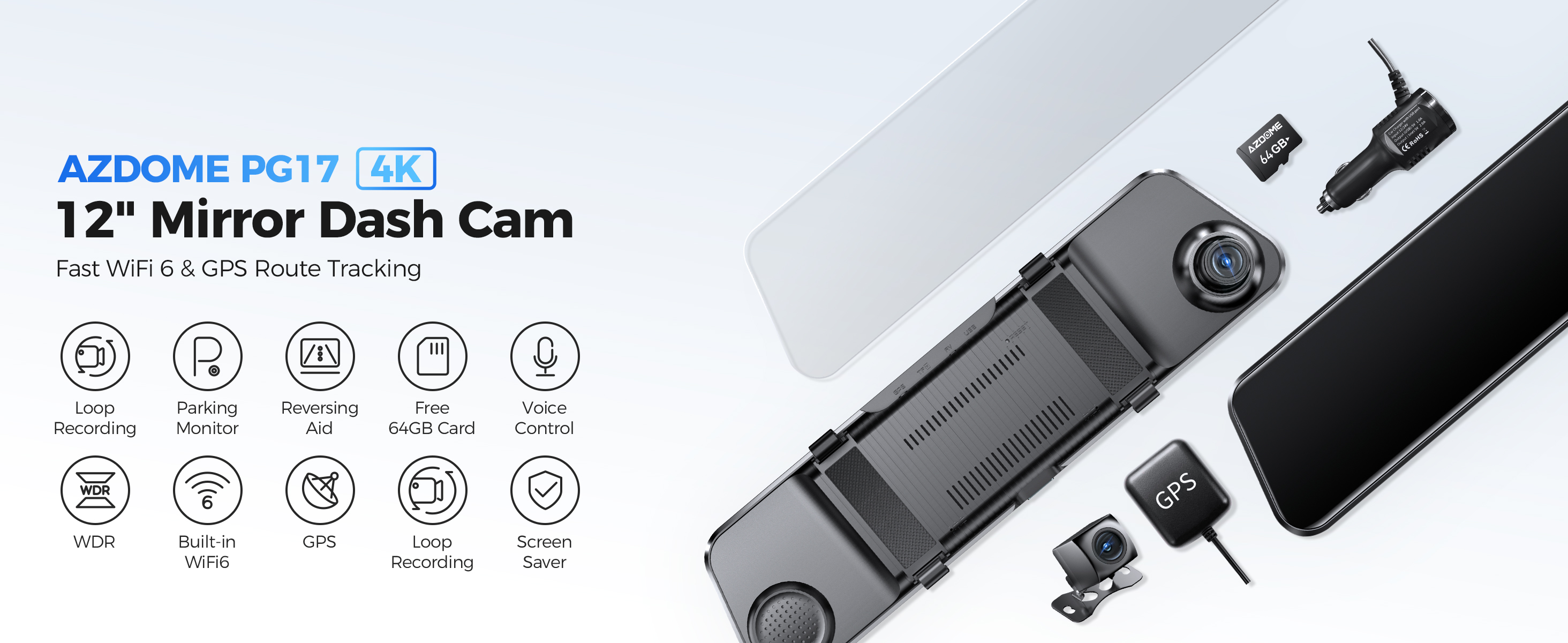

12" Touch Screen & 4K+1080P Dual Recording: With its 12 inch front camera and 1080P rear camera, AZDOME PG17-4K mirror dash cam front and rear ensures detailed capturing, exceptional video quality, and effortless vehicle number plate reading. It features a 150-degree wide front angle and a 150-degree wide rear angle to minimize blind spots.
Only Front：4K(3840x2160p@30fps)
Front + Rear：4K+1080P
Built-in WiFi6 & GPS：The AZDOME PG17-4K WiFi Car Camera features a new design with built-in WiFi 6. The transmission speed of WiFi 6 is twice as fast as that of 2.4 GHz. WiFi 6 introduces OFDMA (Orthogonal Frequency Division Multiple Access) technology and the WPA3 encryption protocol, which improves network capacity and provides stronger network security to protect your privacy and prevent network attacks. With built-in GPS, you can check GPS details through the computer, and view driving routes, real-time speed and other information through the computer player.
24h Parking Monitoring：
AZDOME PG17-4K dash camera offers 2 parking modes:
1、Collision Detection Parking Mode:If the dashboard camera's G-Sensor detects a collision or a hard hit to the vehicle, and the impact force reaches the set G-Sensor level, the camera turns on > then starts recording continuous video, and saves and locks the video in the EMR folder > then the camera turns off.
2、Time-Lapse Parking Mode:If someone hits your car, and the impact force reaches the set G-Sensor level, the camera starts locking the current loop of the time-lapse video clip, and saves and locks the video in the EMR folder > then returns to the time-lapse 1fps recording mode.
(To avoid fire, our product does not install a large capacity battery, so if you want it to work for you when the car is parked, you need to install a hard wiring kit. If you need it, you can buy it from this link: https://www.ebay.com/itm/256487986659 or https://www.ebay.com/itm/256004133341 ).
Superior Night Vision：PG17 4K car rear view mirror camera applies an anti-glare film to reduce glare during daylight hours and is equipped with WDR technology to enhance image details in low light conditions.
4 Display Modes：
AZDOME PG17-4K Mirror dash cam has Smart split-screen function, support the same screen display of front and rear camera images.
4 Display Modes to choose from:
-Front Camera
-Rear Camera
-Split Screen
-Normal Mirror / Screen Saver
Note: Press the POWER button to turn off the display as a normal mirror, in any mode, the front and rear is recording simultaneously.
Loop Recording & G-sensor：Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity; to make your safety and legal rights be always under protection, the built-in G-Sensor monitors and detects unusual impacts or vibration and automatically triggers the Emegency Video Protection, locking the footage to EMR folder to prevent the video from being overwritten.
1080P HD Backup Camera：The PG17-4K is equipped with IP67 waterproof device which is very durable. Besides, it also has reverse assist and vertical flip function, the rear view camera will automatically display the assist line on the screen for safe parking.
Driving Fatigue Alert：When dashcam working for 1/2/4 hours, a sound will be made to remind you to be awake. This function aims to warn you to take a break to ensure driving safety. Please note that continuous driving may cause fatigue for a long time, so it is recommended to stop and rest at the appropriate time to maintain alertness and safety.
Free 64GB SD Card：AZDOME 64GB card has already been inserted into the dash cam.Users do not have to purchase SD card separately. Dash camera for car supports up to 128GB SD card. Please format 64GB SD card at first time using for your dash cam.
Warranty：Azdome PG17-4K offers a 12-month warranty and 24/7 technical support. Please contact us by email if you encounter any problems after purchase. Azdome development team will try to reply you within 24 hours on working days.
Other Friendly Features：①Adjustable brightness；②Adjustable lens；③Adjustable field of view；④Voice Control；⑤G-Sensor；⑥Time Lapse Recording.
Specifications:
| Model： | PG17-4K | Video Format： | MP4 |
| Hersteller： | AZDOME | Recording Resolution： | 4K+1080P/2K+1080P/1080P+1080P |
| Number of cameras： | 2 (Front + Rear) | GPS： | Support external GPS module |
| Power interface： | 5V/2.5A | WIFI: | WiFi 6 |
| Aperture： | F=1.8 | Max External Memory： | 128GB (Class10,U3 Speed, Included 64 GB SD Card) |
| G-Sensor： | Support | Product Dimensions： | 12.83 x 3.19 x 4.65 inches |
| Color： | Black | Item Weight： | 1.65 pounds |
| Language： | Multi Language | Battery： | Super Capacitor |
| Warranty： | 1 Year | Storage Temperature： | -30 °C bis 85 °C |
| Photo Format： | JPG | Operation Temperature： | -20~65℃ |

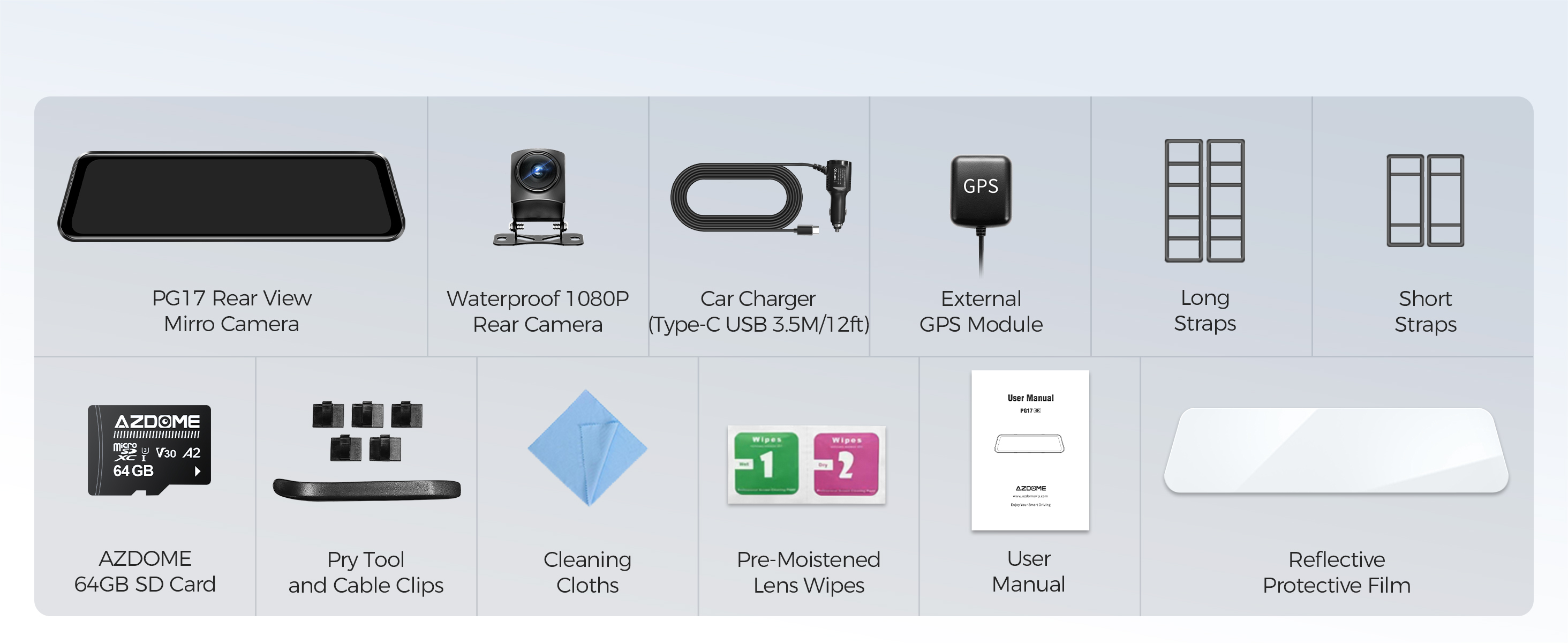

PG17-4K Standard Packing List:
1× PG17 4K Rear View Mirro Camera
1× Waterproof 1080P Rear Camera
1× Car Charger (Type-C USB 3.5M/12ft)
1× External GPS Module
1× Long Straps
1× Short Straps
1× AZDOME 64GB SD Card
1× Pry Tool
1× Cable Clips
1× Cleaning Cloths
1× Pre-Moistened Lens Wipes
1× User Manual
1× Reflective Protective Film

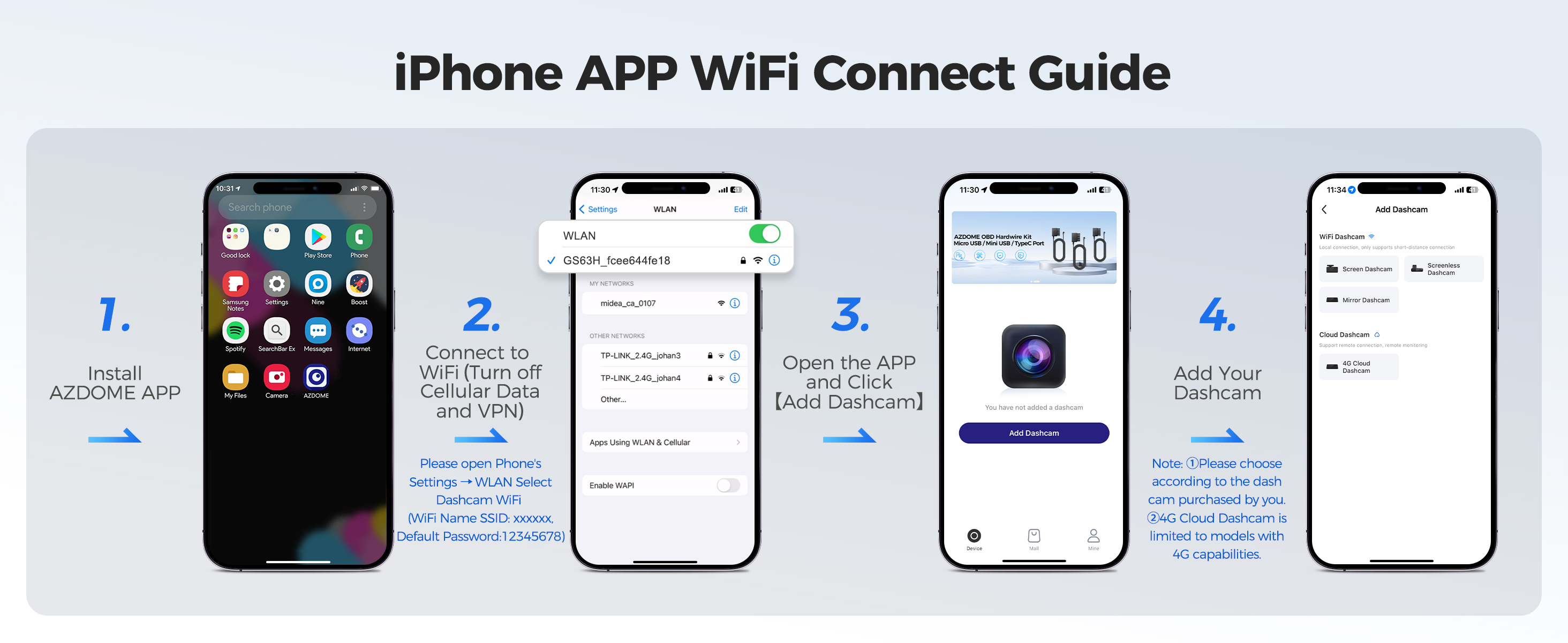

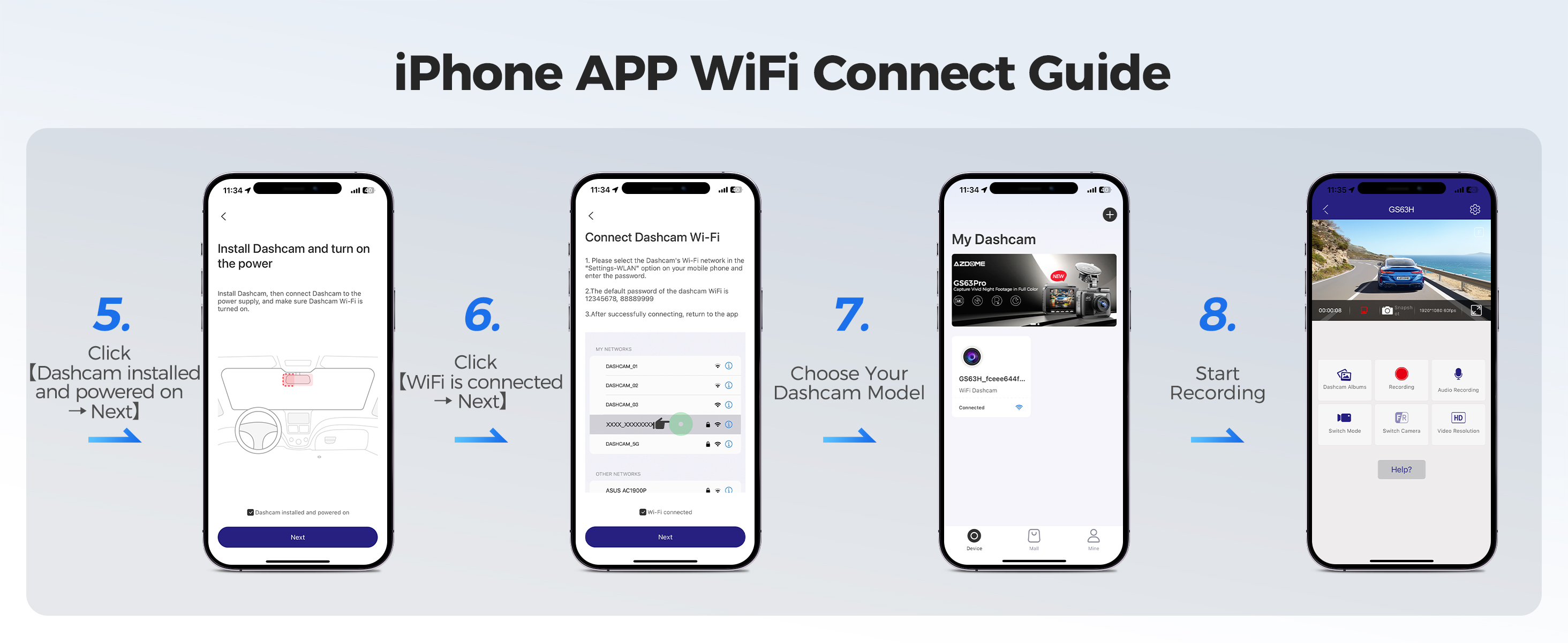

How to connect to WiFi？
The content of the following two pictures and videos can help you to connect the WIFI of the car recorder, if there are more questions about this step, please contact customer service, thank you!
Warm Tips
1. Please always connect Dash Cam to external power while it is in use, the output current needs to reach 5V/2.5A.
2. Every AZDOME PG17-4K mirror dashcam comes with an original AZDOME 64GB SD card in the packaging as gift. Class 10 Speed SD Card is required. Max Support: 128GB. Be sure to format your SD card with your dash cam for the first time use.
3. If no operation is detected after few minute, the Mirror Dash Cam will enter screensaver mode. Touch the mirror dash cam will reactivate the screen. If you don't need this function, you can close the screensaver setting.
4. At AZDOME, our goal is to continue working hard to provide you with innovative hardware & software for the camera to give you that personalized experience. We offer updates for camera firmware, software, iOS & Android app improvements regularly for FREE.
5. This dash camera for cars is backed by full 1-YEAR WARRANTY. You can text us for (Faster Response) or Email our customer service and we will answer all your questions and resolve any issues quickly. If you are having any doubts, it comes with a FULL REFUND within 30 DAYS.
Customer questions & answers
Q1: What is a WiFi Feature?
A: The WiFi feature has been designed so you can pair your dash camera wirelessly with your smartphone and access your recording instantly from the dash cam. Here you can view, download and share your videos easily with your friends and family. Just like how you would connect your Bluetooth speaker to your smartphone for wireless music play, the same way dash cameras use WiFi signal (instead of a Bluetooth) to pair your smartphone with AZDOME PG17-4K.
Q2: Can I watch the videos around my car remotely?
A: NO.AZDOME dash cam is NOT made to broadcast footage over the cloud or internet. It is NOT a cloud or an IP camera and it is NOT meant to do that. You can get live video and footage on AZDOME dash cam's APP as long as you stay within the 10FT range from the dashcam.
Q3: What is the WiFi Range?
A: The WiFi signal range is about 10FT when there are NO obstructions in the middle. Please NOTE that just like your home WiFi network, you don't have WiFi signal outside your home, the same way, WiFi range is 10FT from this small device.
Q4: Camera turns ON/ OFF automatically?
A: Ensure that the output current can reach 5V/2.5A and use our car charger.And ensure that the cabin camera and the rear camera are connected correctly. It is to improve stability that the dashcam reboots automatically once if it detects that there are different cameras connected.
Q5: The poweris on, can not be turned on
A: If the Mirror dash cam does not function normally,try restarting it. To restart the Mirror dash cam with a flattened paper clip, press the small“Reset”hole on top of the device next to the USB port.
Q6: Video does not play smoothly？
A: You are viewing high-bit rate version of video files. General computer configuration may have problem with faster data processing. Please record videos at lower resolution and try again. If this does not solve the problem, please contact our customer service.
Q7: Device fails to record video or take a picture
A: Plug in the card. If the card is not recognized, unplug it and plug it in again, or clean up any contamination from the card contacts. If not solved, format the memory card in dash cam.
Q8: All buttons fail to function
A: Press Reset Key to restart the device; If not solved, remove the memory card or rear camera to confirm if the accessories have a effect on it.
Q9: Why the rear cam image is converse on the screen?
A: According to your habit, please set the function named“Rear Video Mirror”at OFF.
Q10: Why dash cam can't get the GPS signal?
A: 1.Check if the GPS icon status on the screen (it will take 1-3minutes to get GPS signal successfully)
2.Depending on the vehicle and the location of the GPS signal can be blocked due to strong radio interference of other electronic devices in the car, the cloudy/rainy weather or mountains, tunnels, tall buildings on both sides of road etc.
3.Please check if GPS works by taking the GPS Module from the car to outside. If it works then there must be a heavy interference in the car,for example thick car Explosion-proof membrane, metal item and etc.
Q11: Time display is incorrect after setting
A: Please ensure to choose the correct time zone when GPS antenna is connected. The Time Zone settings that influence the displayed time & date will be applied upon receiving a GPS connection. Some examples of GMT time off sets are: -GMT-7: Los Angeles-GMT-4: New York-GMT+10:Sydney. Please make sure to adjust time zone setting during standard vs. daylightsavings time. If you are unsure of yourGMT off set please look up your city on www.greenwichmeantime.com/time-zone/usa/
Q12: Dash cam will be warm
A: lt is normal. A dash cam of this caliber is a pretty high-tech piece of equipment.When you think about it from an engineering perspective, capturing high quality full HD video takes alarge amount of computer processing power. Heat is the by-product of all that data processingthat is going on. But not to worry.The case of the Dash cam itself is actually used as a heat-sink (notice the nice vents you see along the top and bottom of these models), so that's why you may notice it is warm or hot to the touch. Don't worry, this is normal,and your AZDOME is operating as designd.
Q13: Video has no sound?
A: Ensure that "RecordAudio" icon is turned ON. Ensure that "Time Lapse Parking Mode" setting is turned OFF within the Menu.
