Power: 4W
Modulation Mode: AM/FM

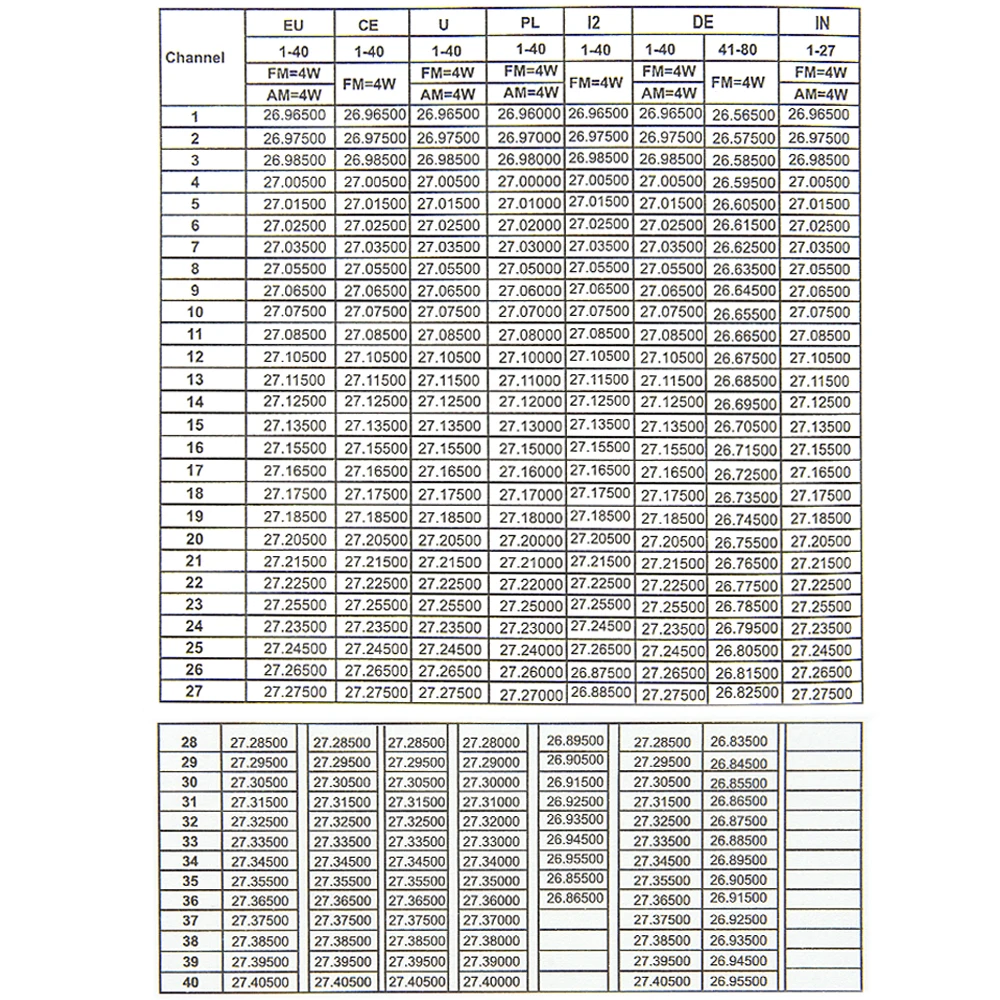

Frequency Range: 27MHZ(26.965-27.405MHz)
Frequency Tolerance: ±5.0ppm
Input Voltage: 12V
Dimensions(in mm): 165(W) x 67(D) x44(H)
Weight:Approx.444.5g
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20°C TO + 55°C
Transmit: 2A MAX
Current Drain: Receive(Squelched 0.3A) VOL Max(0.8A)
Antenna Connector: BNC
Battery Model: WB58L Battery Capacity: 4100mAh Battery Watt Hours: 49.2Wh
Receiver:
Sensitivity: Less than 1uV for 10dB(S+N)/N
Image rejection: 70dB
Adjacent channel rejection: 60 dB
IF frequency: 1st 10.695MHz 2nd 455KHz
Automatic gain control(AGC): less than 10dB change in audio/output for inputs from 10 to 50000uV
Squelch: less than 1uV
Frequency response: 300-3000Hz
Main Feature:
▲40 Channel Multi band CB
(Incorporates 40UK/40EU channels plus other European and North American frequency bands)
▲TFT LCD Display
▲8 Optional Channels
▲CTCSS/DCS
▲DTMF
▲TOT
▲Automatic Squelch function
▲Squelch level adjustable
▲Receive gain control adjustment
▲Editable channel scan
▲Shortcut channel 9/19
▲NB/ANL wave filter
▲Audio high frequency cancellation
▲Keyboard Lock
Transmitter:
▲Power output: 4Watt/FM/AM
▲Transmission interference: inferior to 4nW(-54dBm)
▲Frequency response: 300-3000Hz
▲Modulated signal distortion: inferior to 5%
▲Output impedance: 50 ohms
Packing List:
Option 1. Battery Case
1x QYT CB-58 27mHz CB Radio
1x Battery Back Case (not include battery, you need install 8xAA Batteries )
1x User Manual in English
1x Radio Antenna
Option 2. With Li-lion Battery
1x QYT CB-58 27mHz CB Radio
1x 4100mAh Li-ion Battery Pack
1x User Manual in English
1x Radio Antenna
1x Charger Base
1x Adapter
Option 3. Add Whip Antenna
1x QYT CB-58 27mHz CB Radio
1x 4100mAh Li-ion Battery Pack
1x User Manual in English
1x Radio Antenna
1x Long Whip Antenna
1x Charger Base
1x Adapter
