Description
100% full load burn-in test
Universal AC input / full range
It's good quality & high performance
Input: AC110-265V 50/60Hz
Out put: DC 12V ;DC 24V,DC 5V ;
Protections: overload/ over voltage/ short circuit
Cooling by free air convection
(Not suggest for use in bathroom)

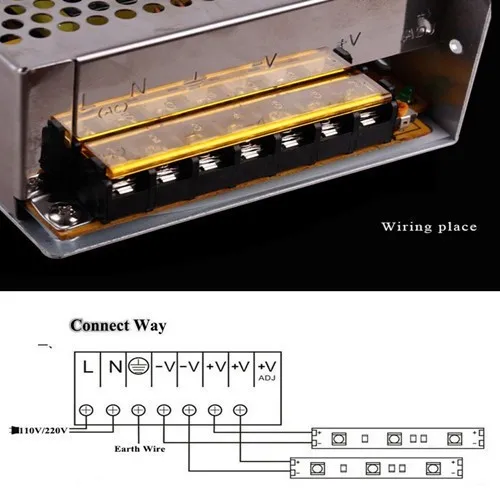

Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+V / ADJ: Adjust the output voltage
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights
Dimension :
(Manual measurement,Maybe it has 3-8mm measurement error.)
|
Type (Output) |
Size (LxWxH) |
Intput Voltage (AC) |
| 12V 1A 12W | 70mm*40mm*30mm | 85V-265V |
|

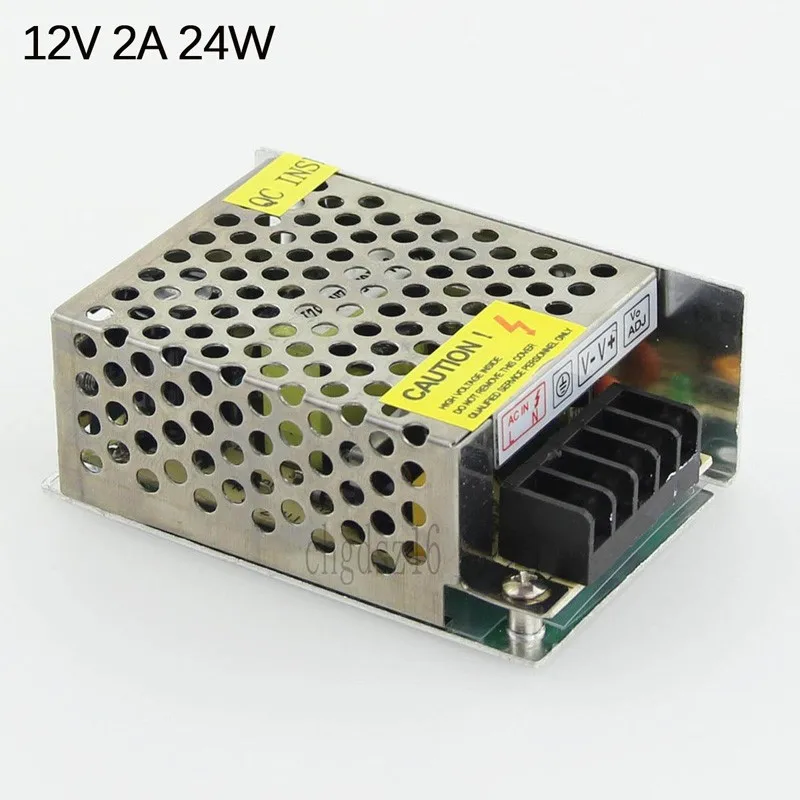

12V 2A 24W |
85mm*57mm*33mm |
85V-265V |
|

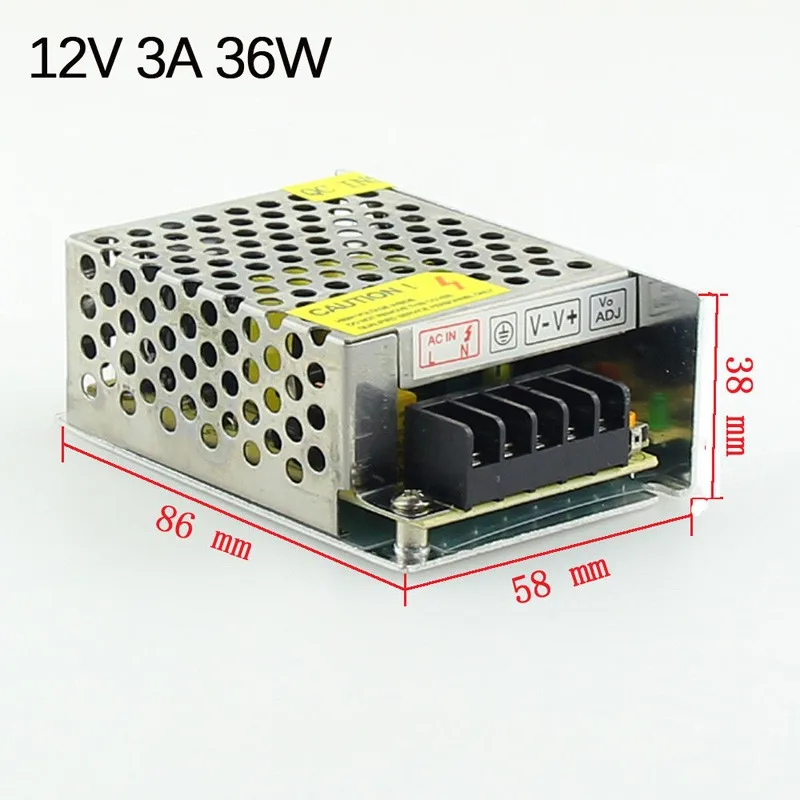

12V 3A 36W |
85mm*58mm*38mm |
85V-265V |
|
12V 5A 60W |
110mm*78mm*36mm |
85V-265V |
|
12V 8A 96W |
160mm*98mm*42mm |
85V-265V |
|
12V 10A 120W |
162mm*98mm*44mm |
85V-265V |
| 12V 12.5A 150W | 198mm*98mm*43mm | 85V-265V |
|

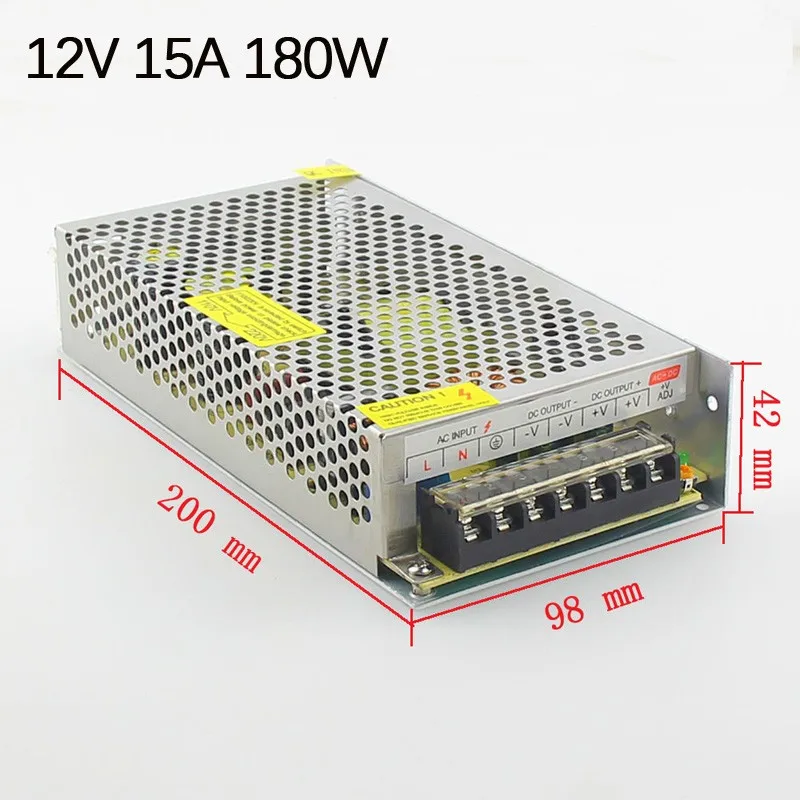

12V 15A 180W |
198mm*98mm*43mm |
85V-265V |
|
12V 20A 240W |
200mm*100mm*44mm |
110V/220V +/- 15% |
|
12V 30A 360W |
200mm*100mm*45mm |
110V/220V +/- 15% |
|
12V 40A 480W |
215mm*115mm*50mm |
110V/220V +/- 15% |
|
12V 50A 600W |
242mm*124mm*65mm |
110V/220V +/- 15% |
| 12V 60A 720W | 245mm*125mm*68mm | 110V/220V +/- 15% |
| 24V 1A 24W | 85mm*57mm*33mm | 85V-265V |
|
24V 2A 50W |
110mm*78mm*35mm
|
85V-265V |
|
24V 3A 72W |
110mm*78mm*35mm |
85V-265V |
|
24V 5A 120W |
158mm*98mm*40mm. |
85V-265V |
|
24V 10A 240W |
198mm*98mm*40mm |
85V-265V |
|
24V 15A 360W |
198mm*110mm*50mm |
110V/220V +/- 15% |
|
24V 20A 480W |
198mm*110mm*50mm |
110V/220V +/- 15% |
|
24V 25A 600W |
215mm*115mm*50mm |
110V/220V +/- 15% |
|
24V 30A 720W |
215mm*115mm*50mm |
110V/220V +/- 15% |
|
24V 33A 792W |
242mm*124mm*65mm |
110V/220V +/- 15% |
|
5V 2A 10W |
70mm*40mm*30mm |
85V-265V |
| 5V 6A 40W | 85mm*57mm*33mm |
85V-265V |
| 5V 10A 50W | 110mm*78mm*36mm | 85V-265V |
| 5V 20A 50W | 160mm*98mm*42mm | 85V-265V |
| 5V 30A 50W | 162mm*98mm*44mm | 85V-265V |
|
5V 40A 200W |
198mm*98mm*43mm | 85V-265V |
|
5V 50A 250W |
200mm*100mm*44mm | 85V-265V |
|
5V 60A 300W |
200mm*100mm*45mm | 85V-265V |
| 5V 72A 360W | 215mm*115mm*50mm | 110V/220V +/- 15% |
Package include:
1 x Power supply
.
|
|
|
|
