ITEM DESCRIPTION

Welcome to car_part_accessoriesHope you have a great purchase.


Pls check the item pictures and size to get the suitable items.

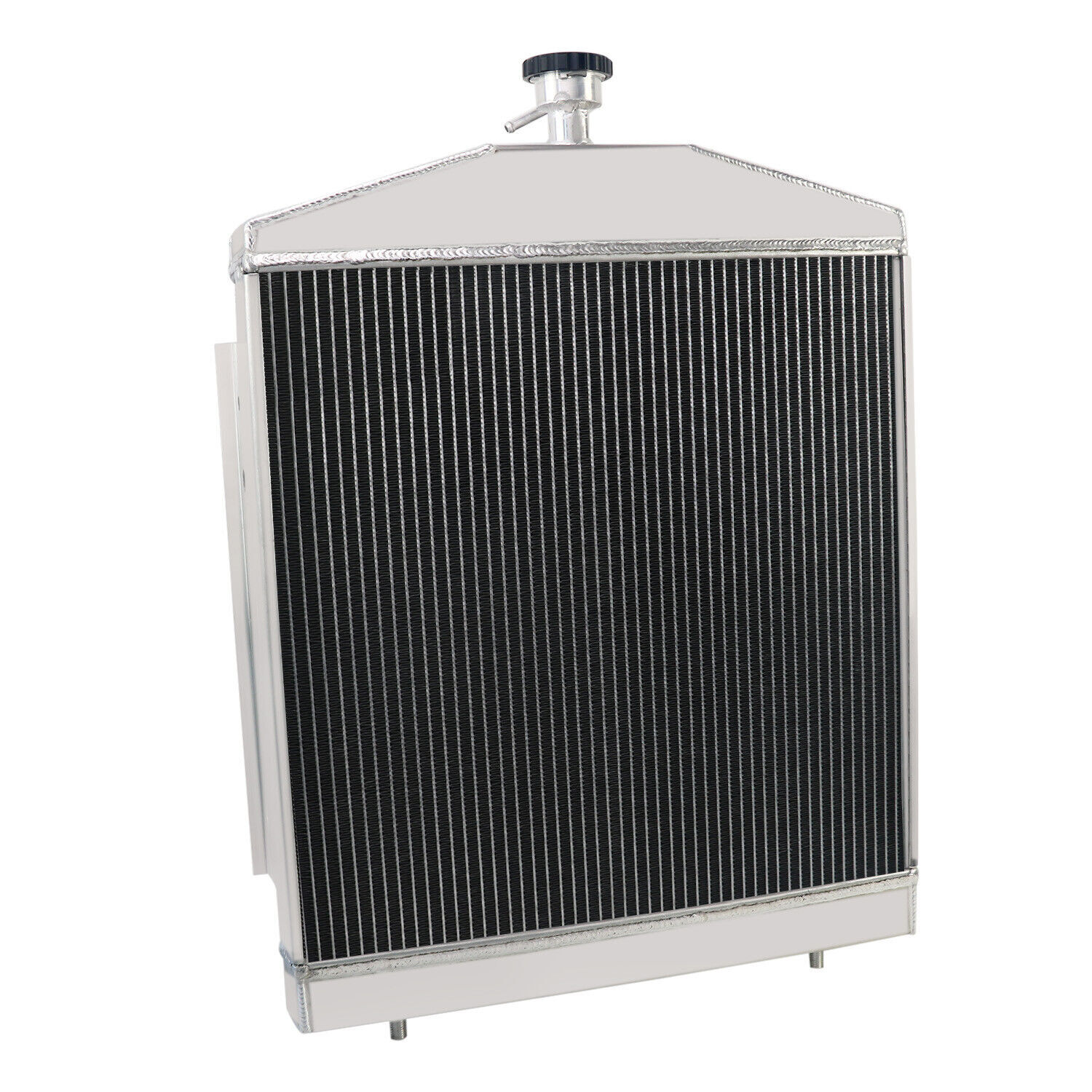

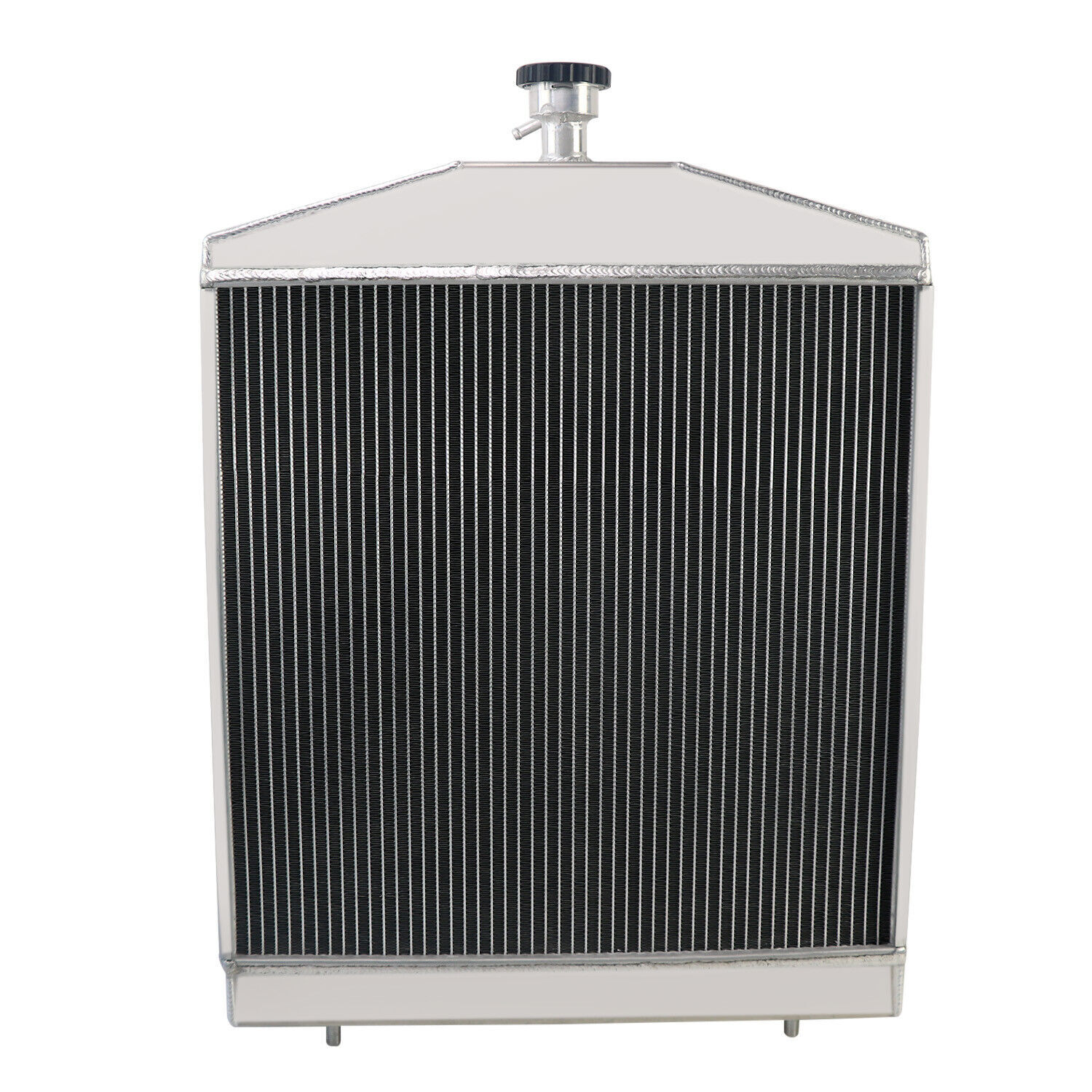

One New Aftermarket Replacement Lincoln Welder Radiator that fits 200 / 250 AMP


Details:

  • OVERALL HEIGHT: 24 3/4''
  • OVERALL WIDTH: 20 15/16''
  • CORE HEIGHT: 19 1/2''
  • CORE WIDTH: 19 1/4''
  • ROWS: 2
  • FILL NECK HEIGHT: 2 3/8
  • INLET: 1 1/2''
  • OUTLET: 1 1/2''
(Part Numbers 249748N, 249748, G10877198, H19491)


THAT FITS THE FOLLOWING LINCOLN WELDERS.
SA-200 and SA-250 with F162 and F163 Continental engines.
SA-200 codes 3417-9530.
SA-250 with F163 all codes.
SA-200amp machines with Perkins or Continental engines.
SAE 300 with F226, F227, F244 Continental codes 3211-8716.
SAE 400 with F224 and F245 Continental codes 5266-7370.
Classic I (Continental TM27) codes 10068, 10069.
Classic I codes 9835, 9968, 9999.
Classic III (Continental TM27) codes 10033,10072.
Classic III (TMD27) codes 10061 to 10156.
Classic 300 MP code 12423.
Classic 300D codes 10657, 10658.
Classic 300D (Perkins) codes 10545, 10546, 10911, 10927, 11248, 11280, 11411, 11472, 11545, 11572, 11573, 11641, 11809, 11915.
Classic 300D (Kubota) codes 11110, 11112, 11113, 11243, 11244, 11248, 11413, 11414, 11474, 11475, 11499, 11500, 11547, 11640, 11642, 11643, 11811, 12546.
Classic 300D WFM (Perkins) codes 11111, 11249, 11281, 11412, 11473, 11546, 11810.
Classic 300D (Kubota WFM) codes 11810, 11812, 11548.
Classic 300 HE code 11902.

Features

· Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish

· Brazed core technology to guarantee optimum performance and dependability

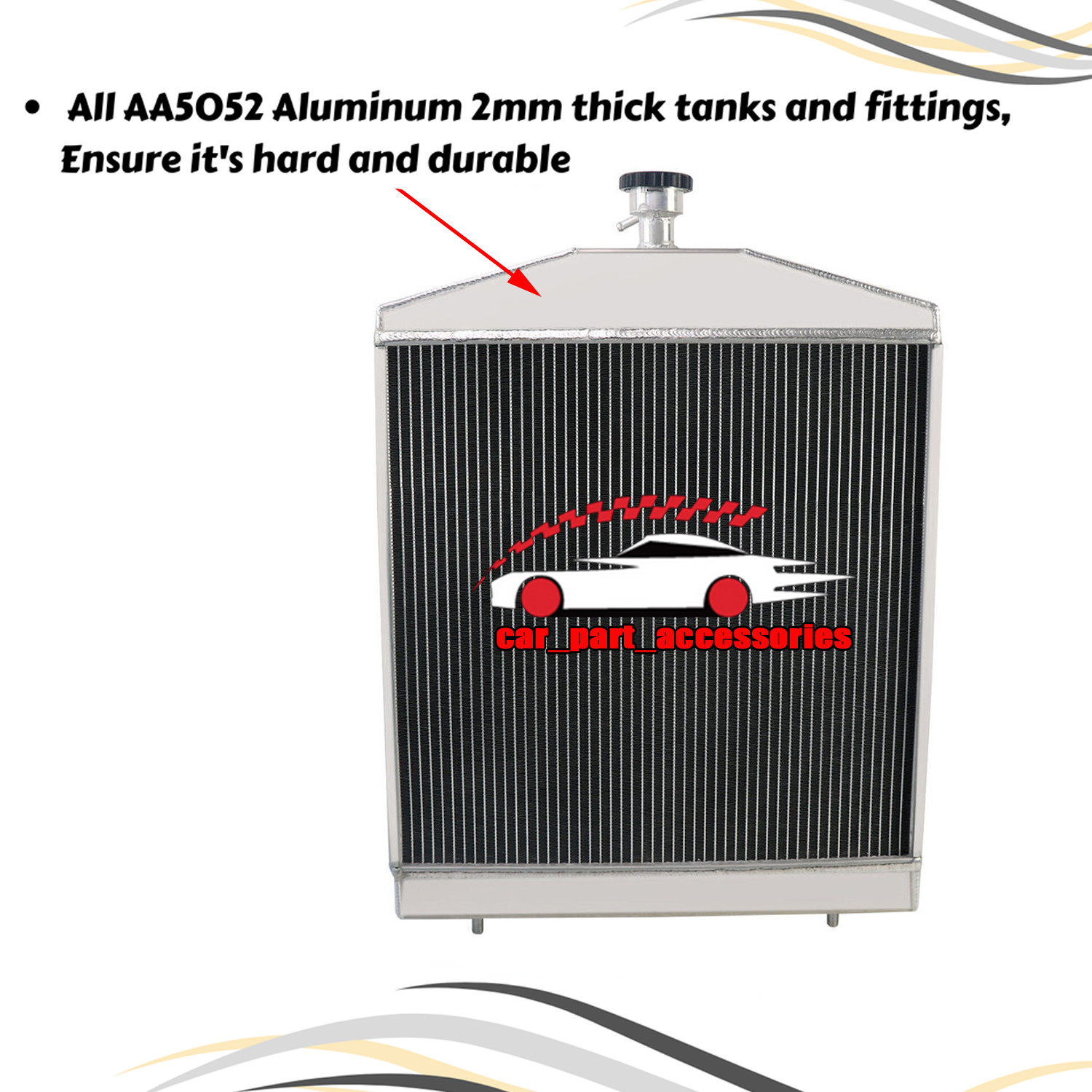

· All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

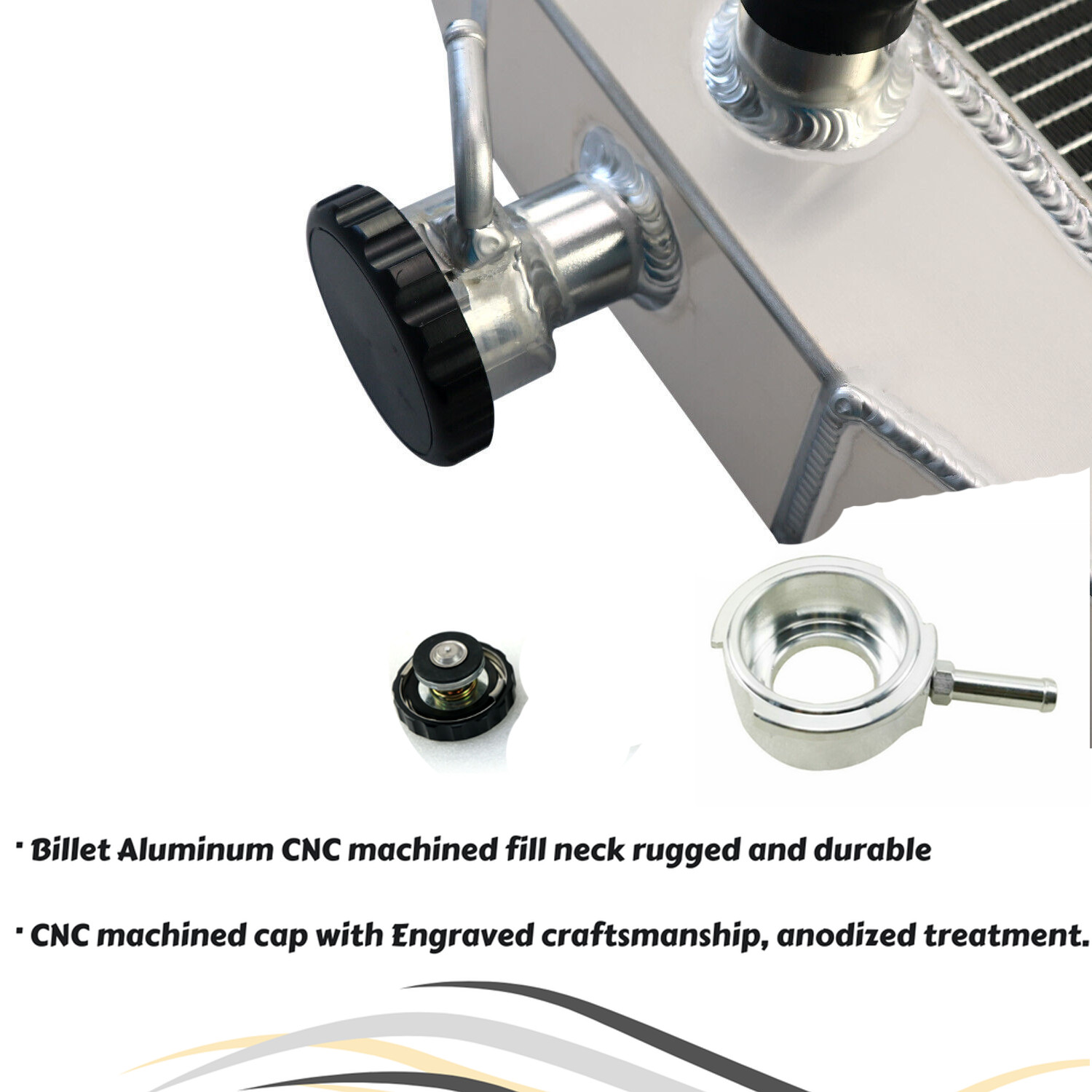

· Billet Aluminum CNC machined fill neck rugged and durable

· CNC machined cap with Engraved craftsmanship, anodized treatment.

· OEM style brass petcock drain much better than other plastic one on eBay

· Carefully crafted to exceptional OE standards for precise fit.





Reasons for choose our AA5052 Aluminum Radiator

1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).

2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.

3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

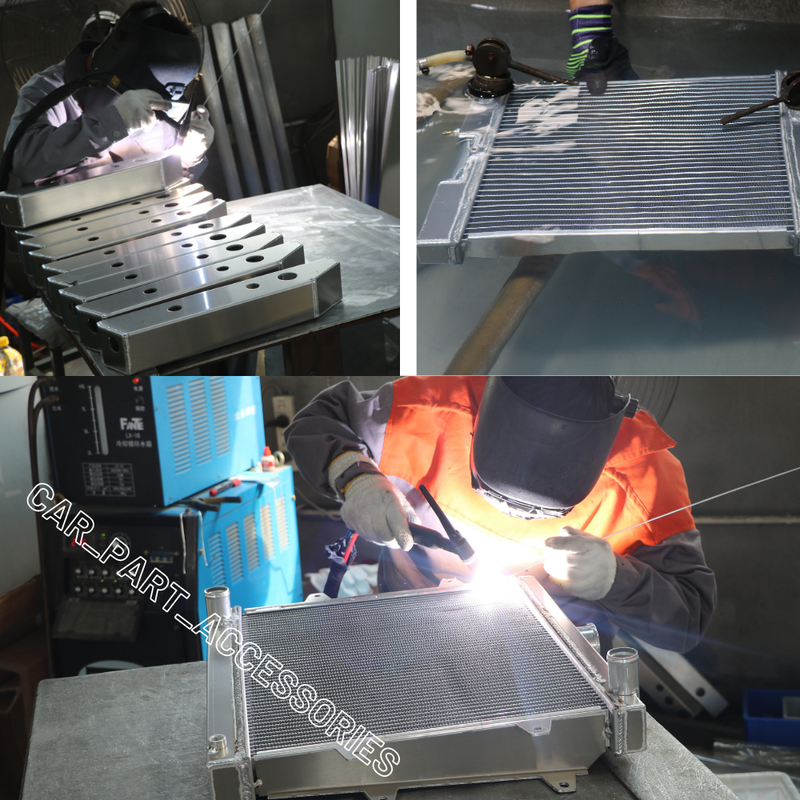

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
