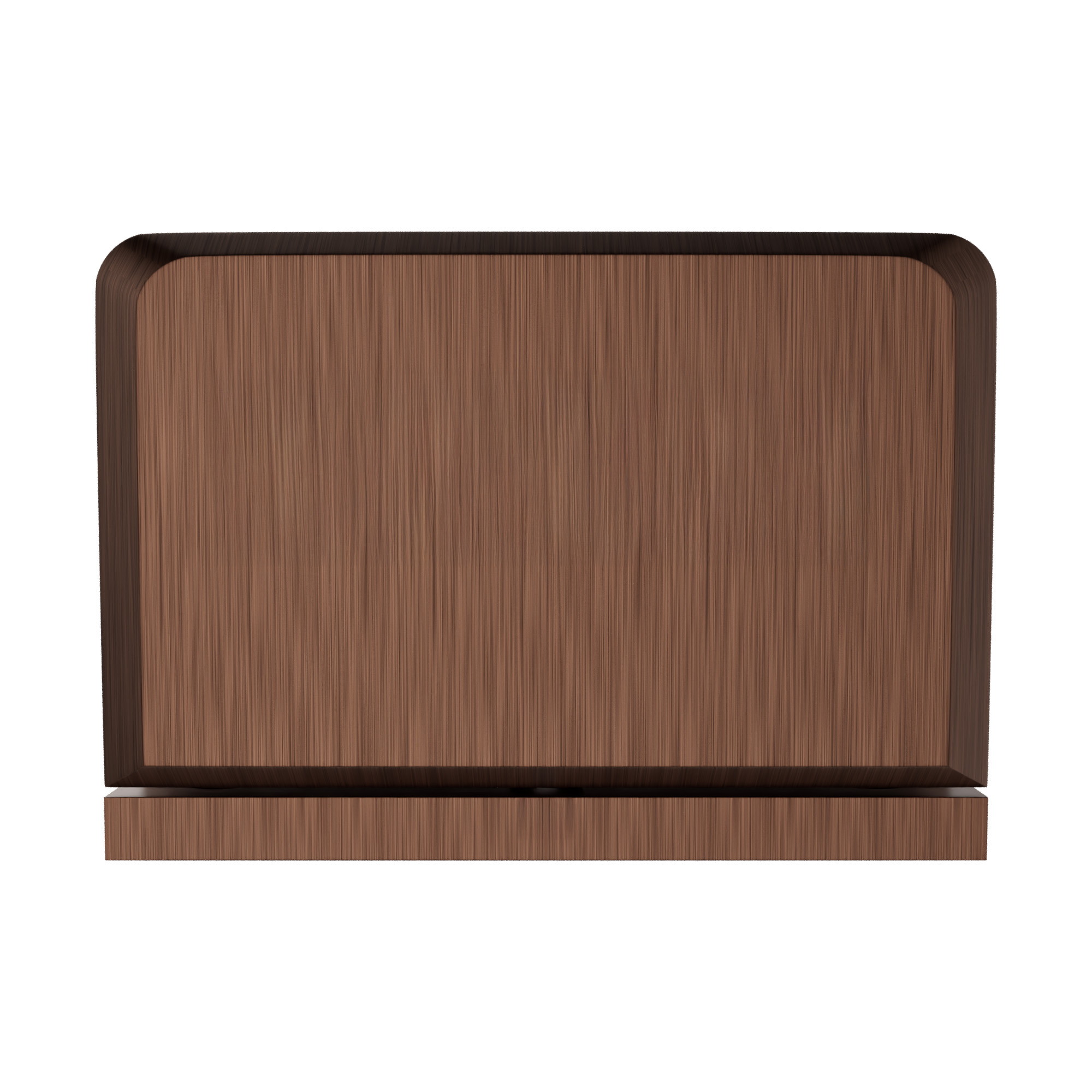

Brixwell H-PIVBGTH-ACP Glass To Header Mount Shower Door Pivot Hinge 3/8" and 1/2" Glass Thickness Euro Header Type Antique Copper Finish
FEATURES
- Antique Copper finish header mount pivot hinge made of solid forged brass with beveled edge profile.
- Designed for Euro Header systems in frameless shower doors requiring cutout fabrication.
- Supports glazing thickness of 3/8" (10mm) and 1/2" (12mm) for frameless shower installations.
- Provides self-centering 0 degree return action to align glass shower doors in closed position.

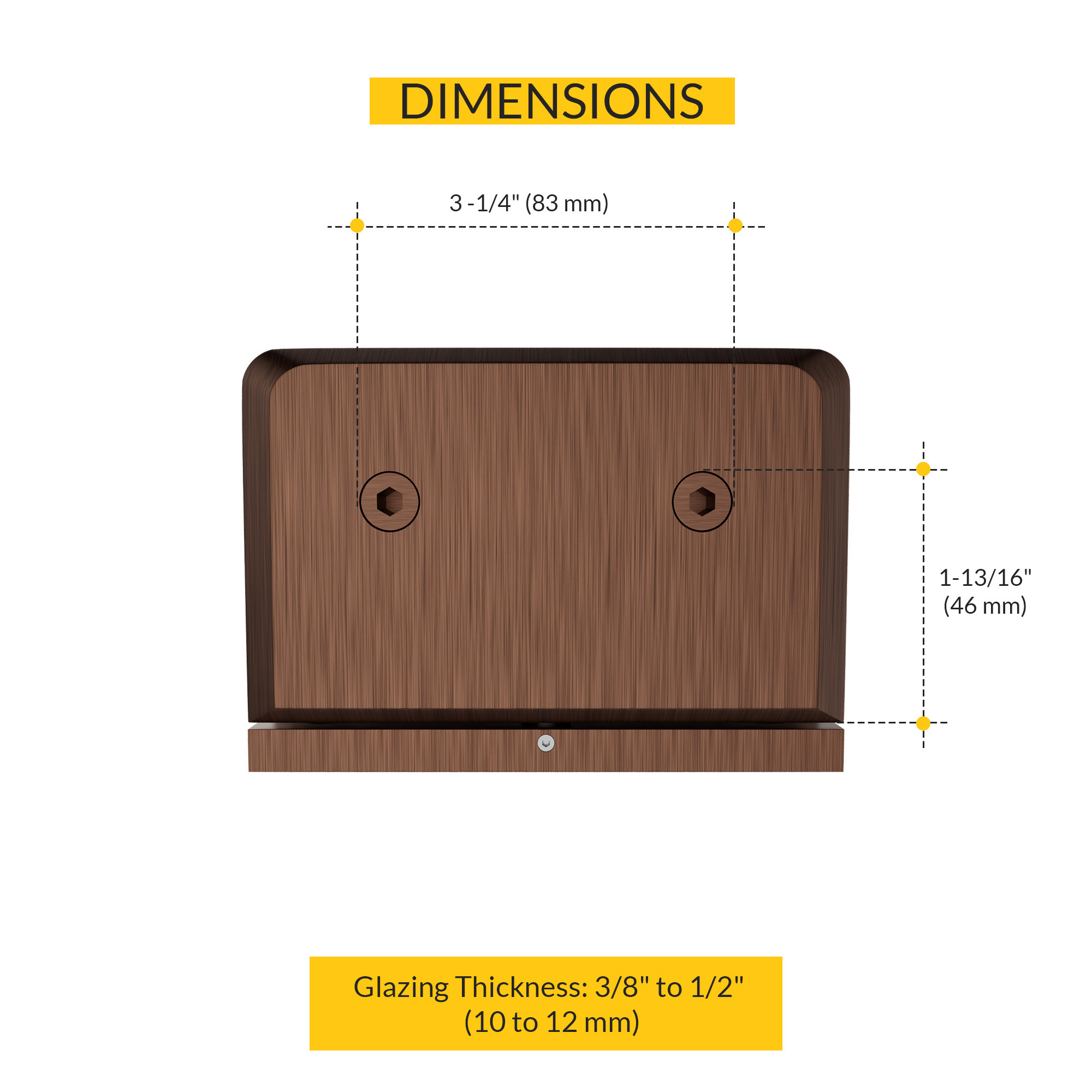

- Dimensions are glass edge to hole 1-13/16", end to end hole spacing 3-1/4", radius 3/8".
- Each hinge is rated at 40 lbs, with two hinges supporting 120 lbs max door weight.
- Supplied with matching finish stainless steel mounting screws, crosshead screws, hex wrench.
DESCRIPTION
The Glass to Header Mount Shower Door Pivot Hinge in Antique Copper finish is designed for frameless shower enclosures requiring a secure connection to Euro Header systems. Constructed from solid forged brass with precision-machined stainless steel internal components, this hinge offers strength, durability, and smooth operation for shower hardware, glass hardware, and door hardware applications. It is equipped with precision wound stainless steel return springs that provide self-centering 0 degree return and self-closing from a 25 degree door angle, ensuring reliable function in daily use. The hinge is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, requiring fabrication cutouts for installation. Each hinge is rated at 40 lbs capacity, and with two hinges, a frameless shower door can be supported up to 120 lbs with a maximum width of 36". Dimensional details include glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and a cutout radius of 3/8" at each corner, allowing accurate installation and fit. For weight guidance, 3/8" glass weighs 5.05 lbs/sf while 1/2" glass weighs 6.40 lbs/sf. The beveled edge profile provides a smooth finish, enhancing the look of frameless hinge systems. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench for installation. This hinge integrates seamlessly with frameless hinge, pivot hinge, and mount hinge applications, making it ideal for both residential and commercial frameless shower projects.
SPECS
| Weight of 3/8" Glass | 5.05 lbs/sf |
| 5 Degrees Preset | No |
| Glass Edge To The Hole | 1-13/16" (46mm) |
| End To End Hole Spacing | 3-1/4" (83mm) |
| Design Style | Non Mouse Ear |
| Adjustable | No |
| Hardware Includes | SS Hex Clamping Screws and Wrench, CrossHead Screw |
| Self-Closing | From 25 Degrees |
| Edge Profile | Beveled |
| Max Door Width | 36" (914mm) |
| Glazing Thickness | 3/8" (10mm) and 1/2" (12mm) |
| Type | Euro Header |
| Material | Solid Forged Brass |
| Mounting Type | Header Mount |
| Finish | Antique Copper |
| Glass Fabrication | Cutout Required |
| Max Door Weight 2 Hinges | 120 lbs |
| Cutout Radius (Each Corner) | 3/8" (10mm) |
| Self Centering | 0 Degrees Return |
| Weight of 1/2" Glass | 6.40 lbss/sf |
