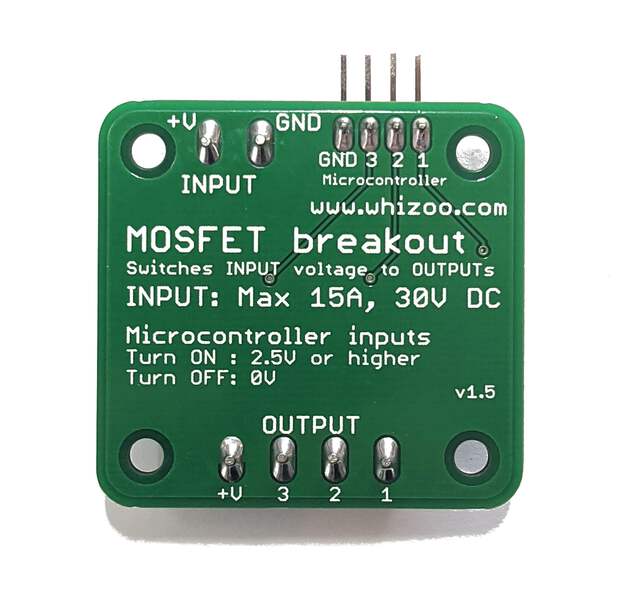

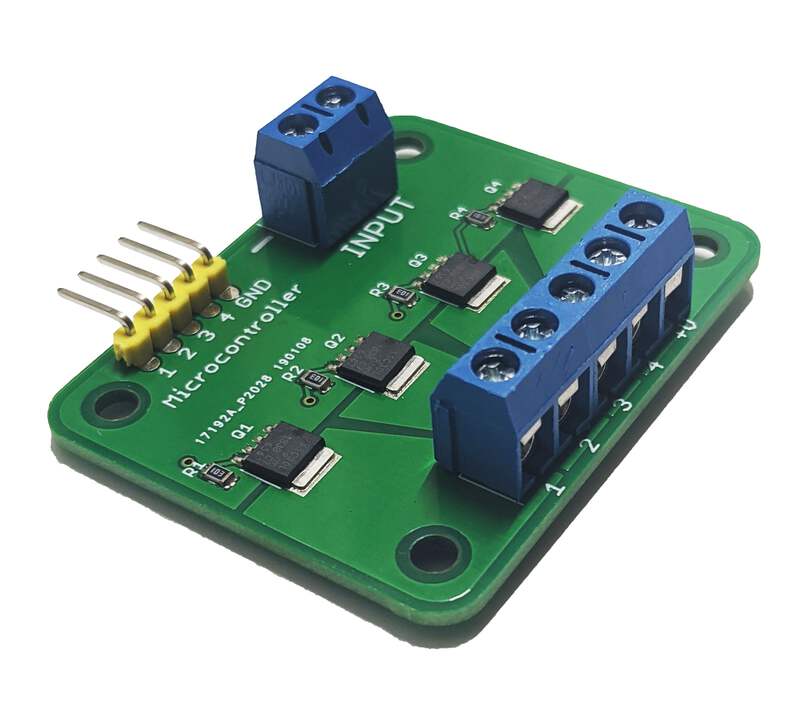

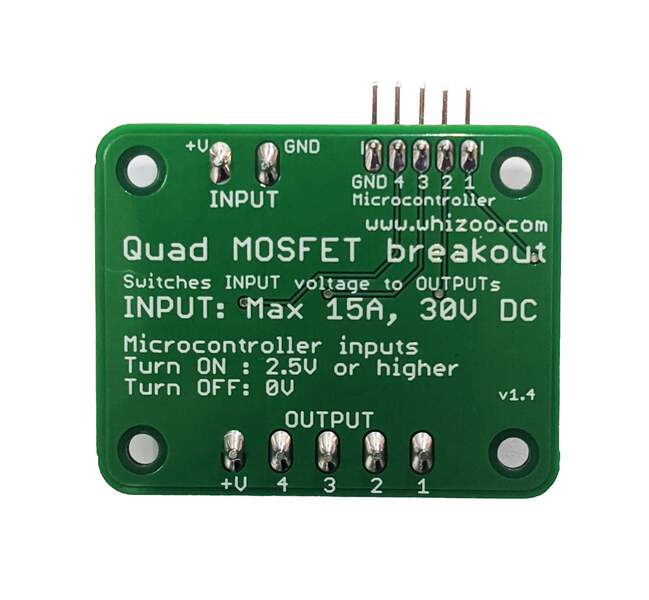

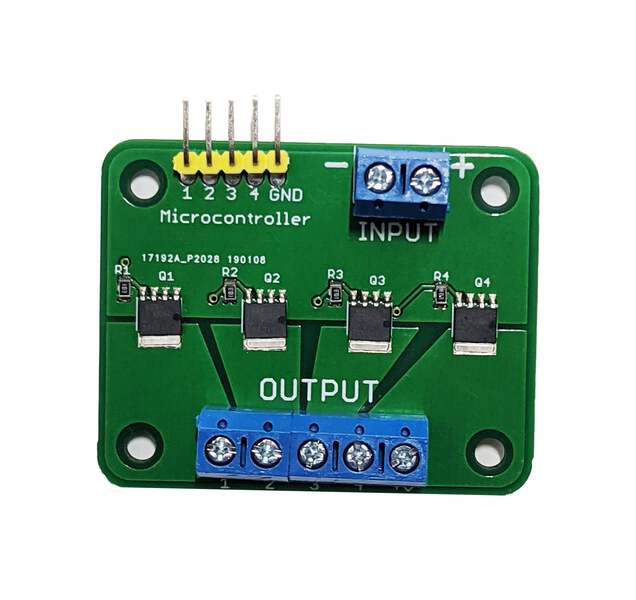

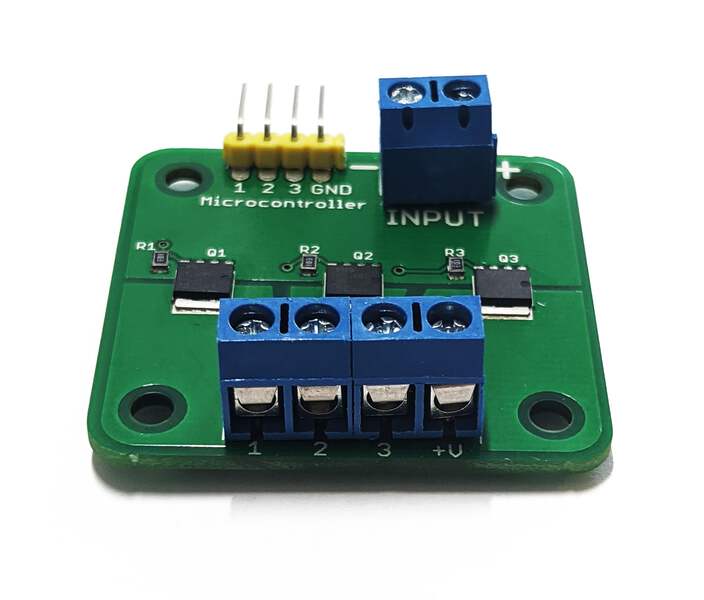

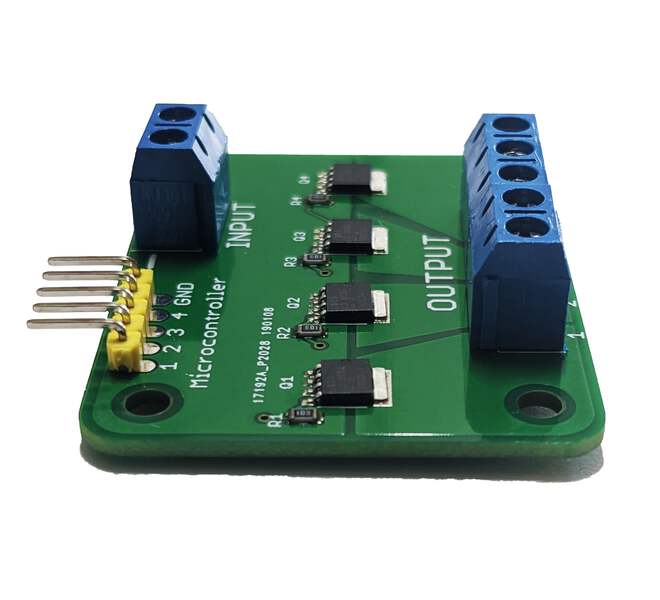

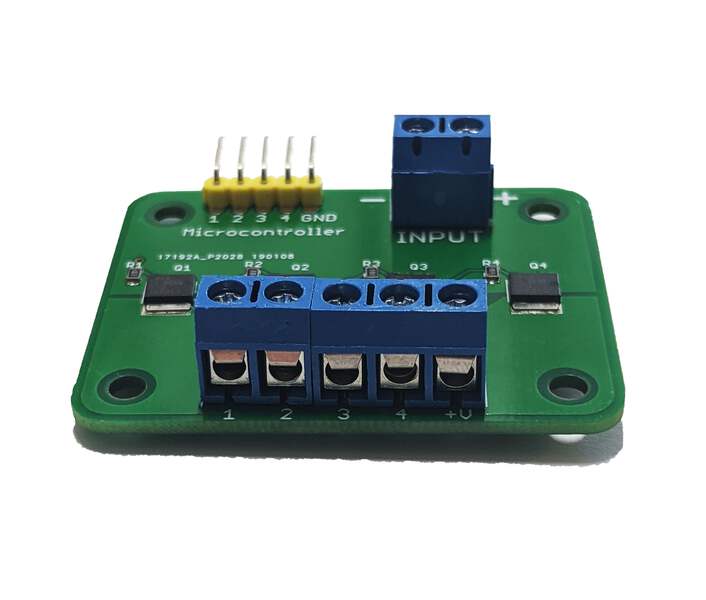

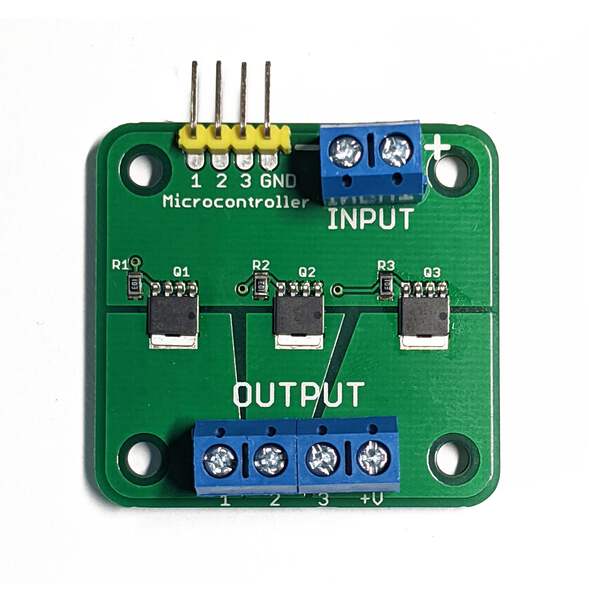

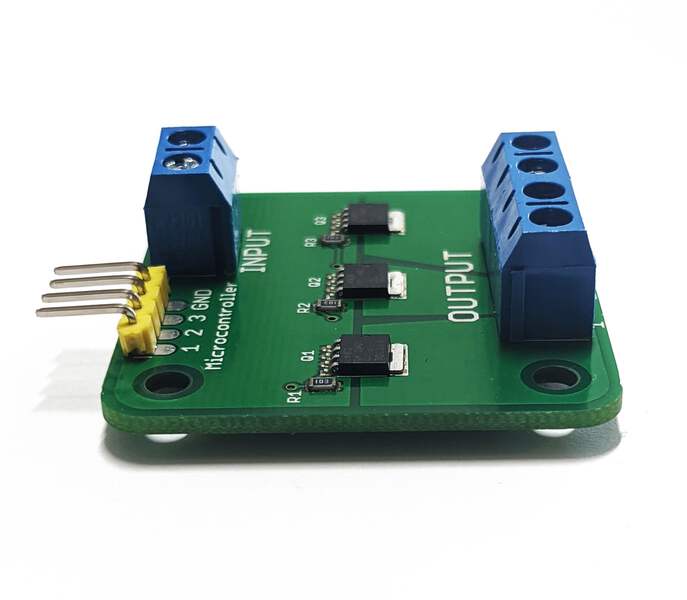

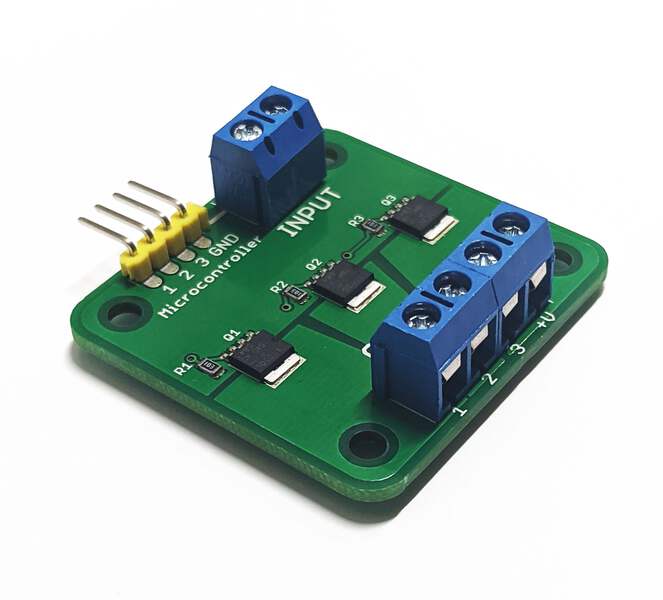

Quad/Tri MOSFET Breakout 30V 15A Low Resistance, High Power, PWM Support

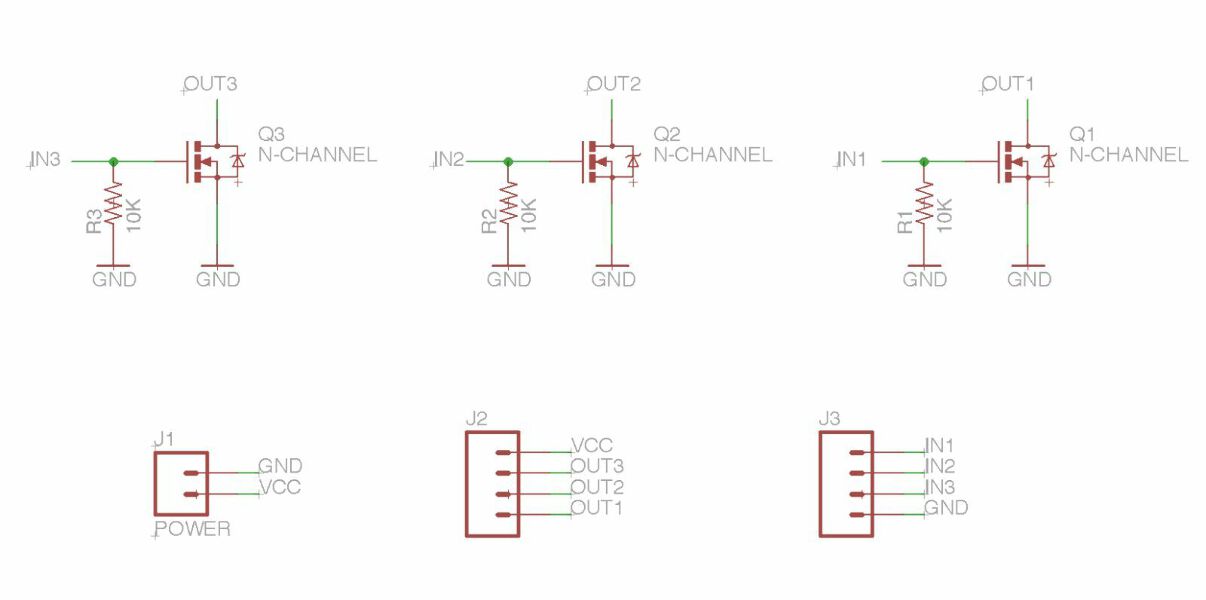

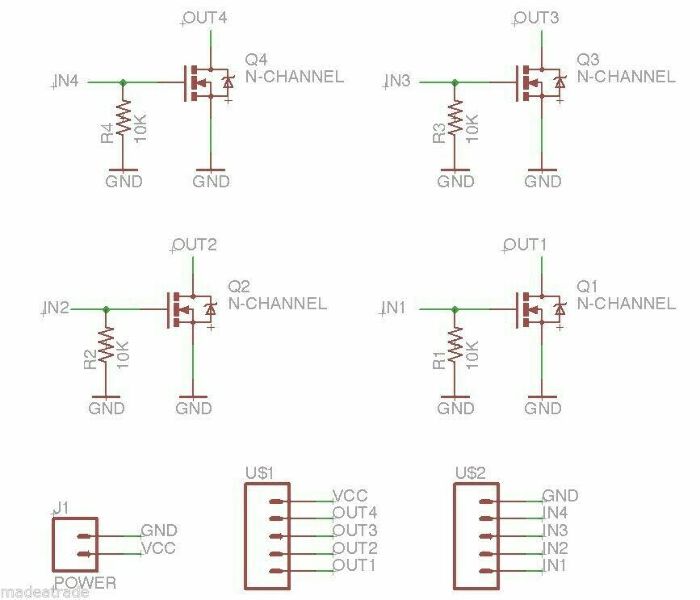

This breakout board makes it easy to switch loads on and off using your favorite Arduino, Raspberry Pi, BeagleBone, or other microcontroller. It uses N-Channel PSMN011-30YLC MOSFETs. Features Operating voltage up to 30VDC; continuous current of 15A per output; continuous current of 15A cumulative for all outputs; turns output on with 2.5V - 20V to the gate Pre-soldered connectors allow for easy, out-of-the-box use. The pins use a 0.1" pitch, making them breadboard-friendly. Compatible microcontrollers - including Raspberry Pi, Arduino, and BeagleBone - allow for easy control of RGB/RGBW LED light strips, motors, and other loads. PWM support allows for brightness control of lights. Low resistance MOSFETs (0.01Ω) means less heat and highly reliable operation at a wide range of temperatures. Quality control ensures that every board shipped meets our high standards and works as advertised. The board is designed and manufactured in California. Additional Information While each MOSFET can handle 37 amps, the board and connectors are only rated for 15 amps.This means the combined current for all of the MOSFETs cannot exceed 15 amps without risking damage to the board. The quad board has 4 outputs and the triple board has 3 outputs. This makes the quad board perfect for controlling RGBW light strings, while the triple board is perfect for controlling RGB light strings. The quad board's dimensions are 2.0" x 1.6" (50mm x 40mm). The tri board's dimensions are 1.6" x 1.7" (40mm x 42mm).
