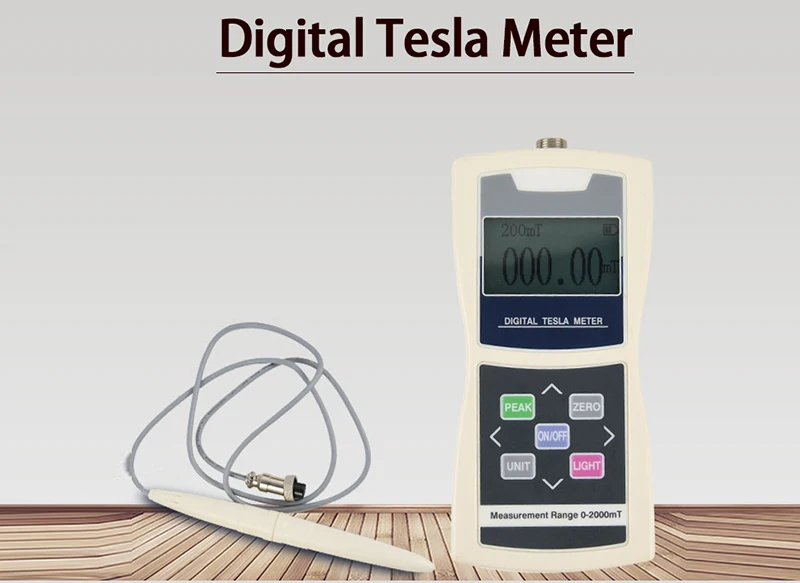

Digital Tesla Meter Gauss Meter Teslameter Fluxmeter With Radial Hall Probe
This link is for Level 5 Accuracy,if you need other Accuracy please contact us .
1,OVERVIEW
Tesla meter is a portable, multifunctional magnetic field measuring instrument equipped with high sensitivity, low drift hall sensor, and the application of advanced digital signal processing technology, suitable for measuring surface magnetic field of permanent, remanence of mechanical parts, magnetic separator or iron remover, etc. It can be used as a basic magnetic parameter measuring instrument in magnetic material manufacturers and companies, mechanical manufacturing enterprises, scientific research institute in colleges and universities.
Three types of accuracy: Level 1, Level 2 and Level 5 for different magnetic field measurement situations.(This link is for Level 5)

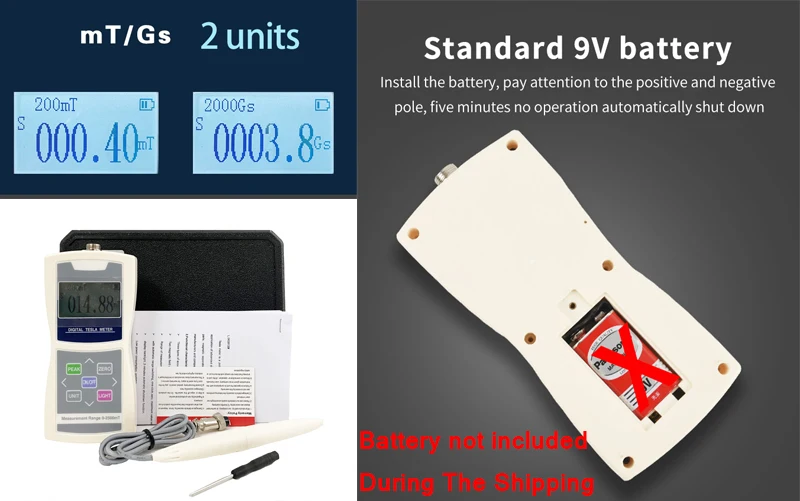

Two magnetic field units: mT (mtr), Gs (Gauss),1 mT=10Gs
Range of measurements :0-2500 mT (25000Gs).

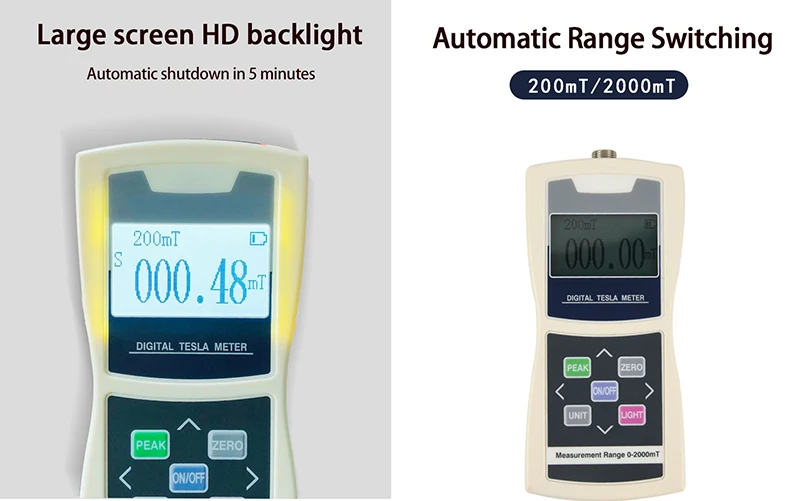

with automatic range switching, one-click zero, maximum value retention function.
display backlight ,5 minutes automatic shutdown function.
Low power consumption, portable.
Multiple Hall probes available.
3,Technical parameters
Range | 200 mT (2000Gs) | 2000 mT (20000Gs) |
Load divison value | 0.01 mT (0.1 G) | 0.1 mT (1G) |
Accuracy (level 1) | ±1.0% | |
Accuracy (level 2) | ±2.0% | |
Accuracy (level 5) | ±2.0%(0...1000 mT),±5.0%(1000 mT...2400mT) | |
Power supply | 1 pcs 9 V Battery(not included) | |
Working environment | ||
Storage environment | -20℃~70℃,85%R·H,No condensation | |
Instrument dimensions | 160 mm×75 mm×34 mm | |
Weight of instrument | About 260g (including batteries and conductors) | |
Hall probe | Standard radial Hall probe, wire length about 1 meter | |
4,Packing list
Serial number | Name | Quantity |
1 | Tesla meter | 1 |
2 | Radial Hall probe | 1 |
3 | Instructions | 1 |
4 | Warranty card | 1 |
5 | desiccant | 1 |
