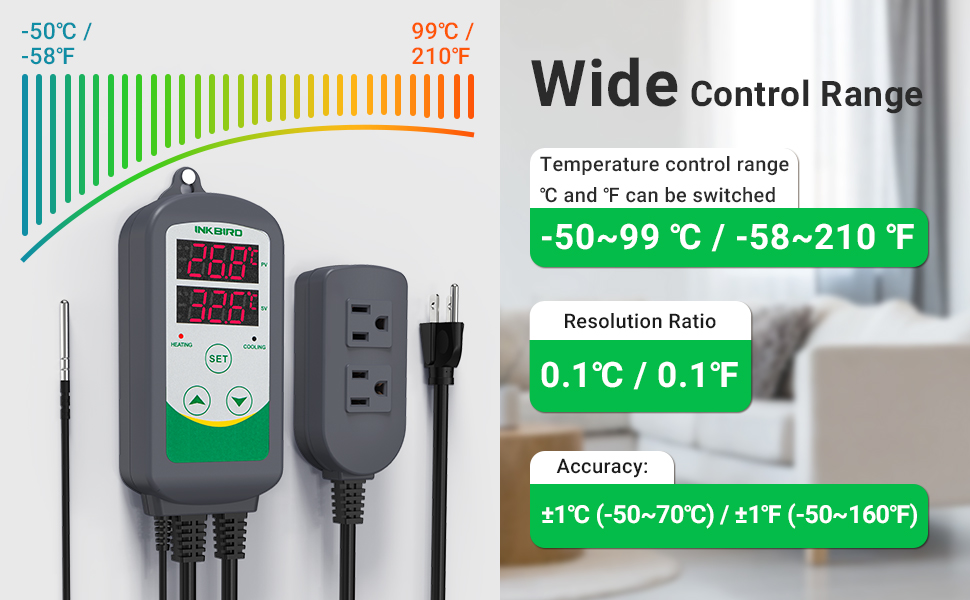

Temperature Control Range : -50~99 °C / -58~210 ° F- Temperature Resolution: 0.1 ° C / 0.1° F
- Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
- Temperature Control Mode :On/Off Control, Heating and Cooling
- Input Power: 120VAC, 50Hz/60Hz
- Temperature Control Output: Max. 10A, 100V ~240V AC
- Buzzer Alarm: High and Low Temperature Alarm
- Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
- Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
- Humidity 20~85% (No Condensate)
- Sensor Type: NTC sensor (Including)
- Sensor Length: 2m / 6.56ft
- Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
Main Features:
- Plug and play design, easy to use;
- Dual relay output, be able to connect with refrigeration and heating equipment at the same time;
- Support reading with Centigrade or Fahrenheit unit;
- Maximum output load: 1100W(110V);
- Dual display window, be able to display measured temperature and set temperature at the same time;
- Compressor delay protection for refrigeration control
- High and low-temperature alarms are available;
- Over-temperature and sensor fault alarm
- Temperature calibration;

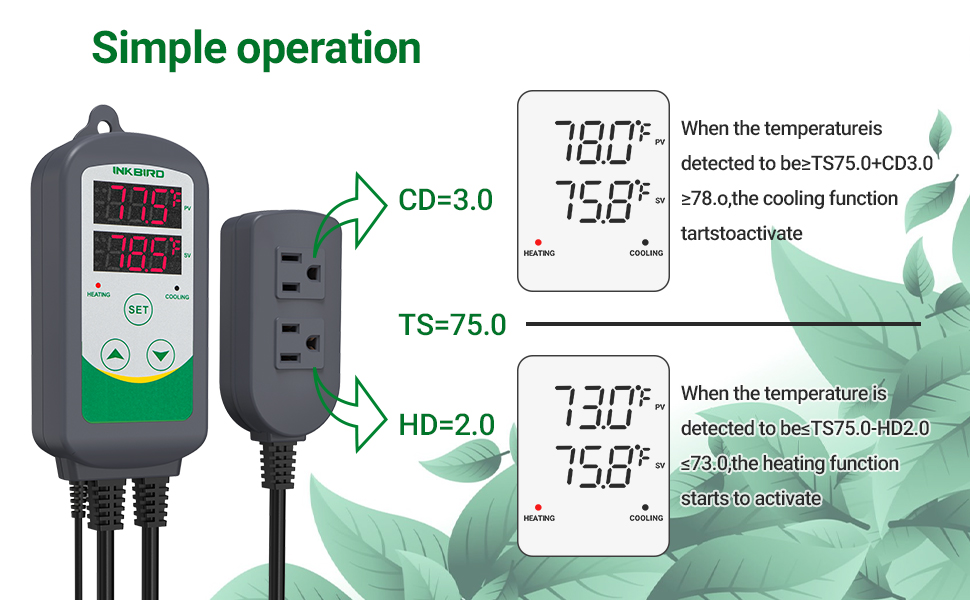

- Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.
