Description

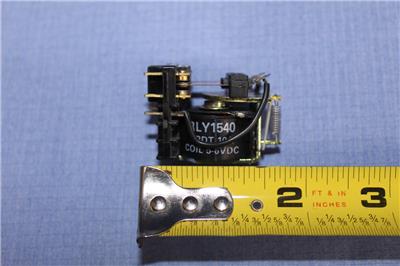

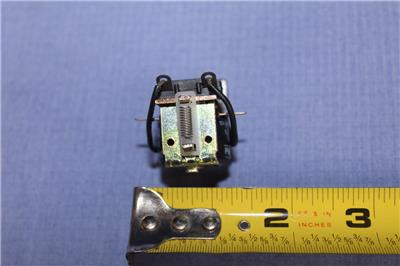

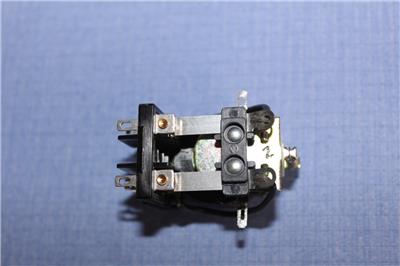

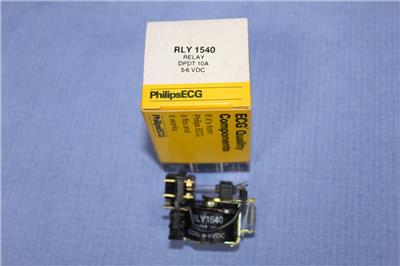

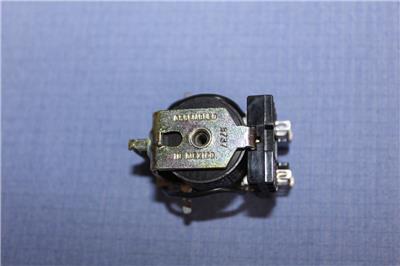

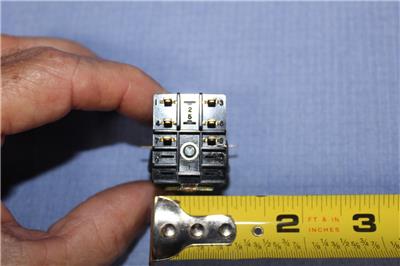

Phillips ECG Relay
RLY1540 same as NTE R0611D106
General Purpose, Open Frame Relay
DPDT, 10A, 5 to 6 VDC Coil
- Solder Terminals
- Compact
- Multicontact
- Specifications:
- Input Voltage : 5 to 6 VDC
- Typ. Res. Ohms: -
- Nom. Power: 2VA
- Contacts Arrang.: DPDT
- Max. Curr. @ 28VDC 120VAC: 10A
- Maximum Contact Ratings – AC (Resistive): 10 A @ 120VAC, 6 A @ 240VAC
- Contact Horsepower Rating: 1/3 HP @ 120VAC, 1/2 HP @ 240VAC
- Duty: Continuous
- Expected Electrical Life: 100,000 Operations
- Expected Mechanical Life: 10 Million Operations
- Operating Temp.: -10 deg.C to +55 deg.C
- Storage Temp.: -30 deg.C to +105 deg.C
- Initial Insulation Resistance: 100 Megohms
- Initial Breakdown Voltage:
- Between Open Contacts: 1000 Vrms
- Between All Other Elements: 1500 Vrms
- Operate and Release Time: 25 msec Max.
