1/2.9" FH8852+GC4053 4MP CMOS IP Camera Module

Ultra-low night vision illumination,

Support IR LED / White Light Led / Warm Yellow Light,

H.265 Support dual stream, Max 2560*1440,

Support full network&ONVIF protocol,

Support DWDR, IR-CUT,

Support corridor mode,

Single layer 38mm*38mm board.

Lens: 3.6mm Lens, Optional: 2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm
(If you need to choose the lens, please note)

Specifications:

Chipest

1/2.9" FH8852 + GC4053

Illumination

Color 0.01Lux/F1.2;  B&W 0.001Lux/F1.2

SNR

≥50db(AGC OFF)

WDR

DWDR: ＞80db

Audio Input / Audio Output

1CH MIC Input/linear input / 1CH Audio Input

IO Function

1CH Reset,1CH Alarm input,1CH Alarm output

Coding Format

H.265

Main Stream

2560*1440,1-30 FPS/S 2304*1296,1920*1080,1280*720,1-30 FPS/S

Sub stream

704*576,640*480,640*360,352*288,1-30 FPS/S

Video-coding Compression

128Kbps-3072bps continuous adjustable

Subtitle Overlay

Support channel name,Date,Four position of character stack is adjustable

Data Record

Video, Picture

Storage Method

Circular Recording, Alarm Recording

Alarm Transfer

Browser, Management Software, IO Output

Support Protocol

Default ONVIF 2.6&Full network protocol

PC Browser ​Mobile App

Support IE6.0 and above browser ​Support IOS,Android

Temperature / Humidity

-20℃- +60℃ /0% - 90%

Power supply

DC12V / POE

Consumption

1.5W

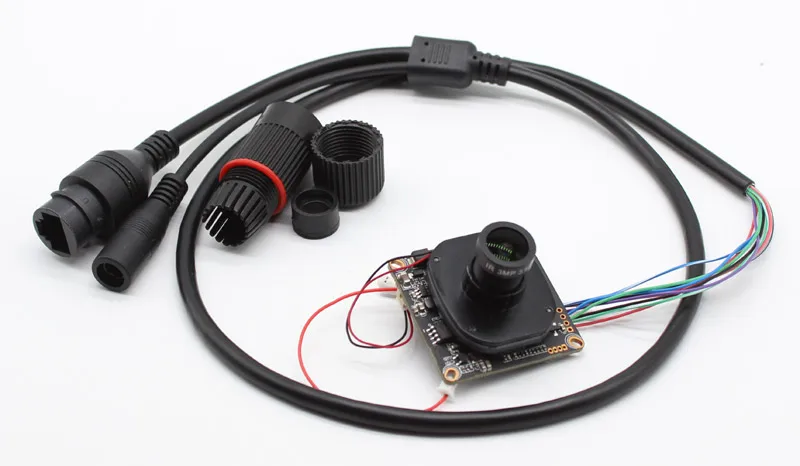

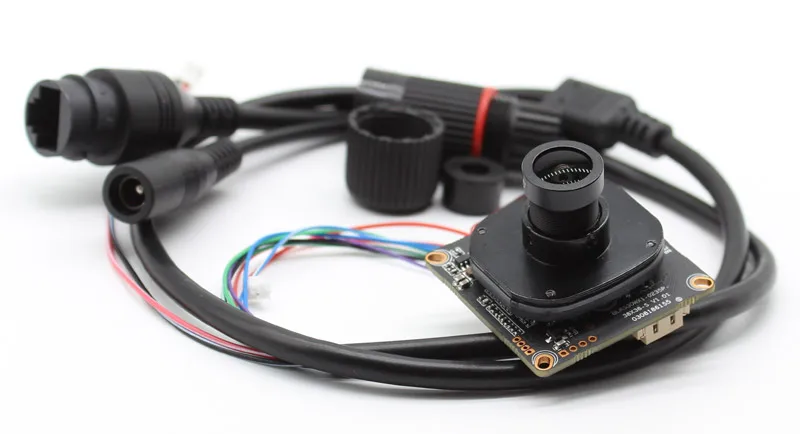

Packaging included:
1x HD 4MP CCTV IP Camera Module
1x cctv microphone
1x HD 3.6mm lens
1x IR Cut
1x Module Video Power Cable

Warranty Term: One Year Warranty
