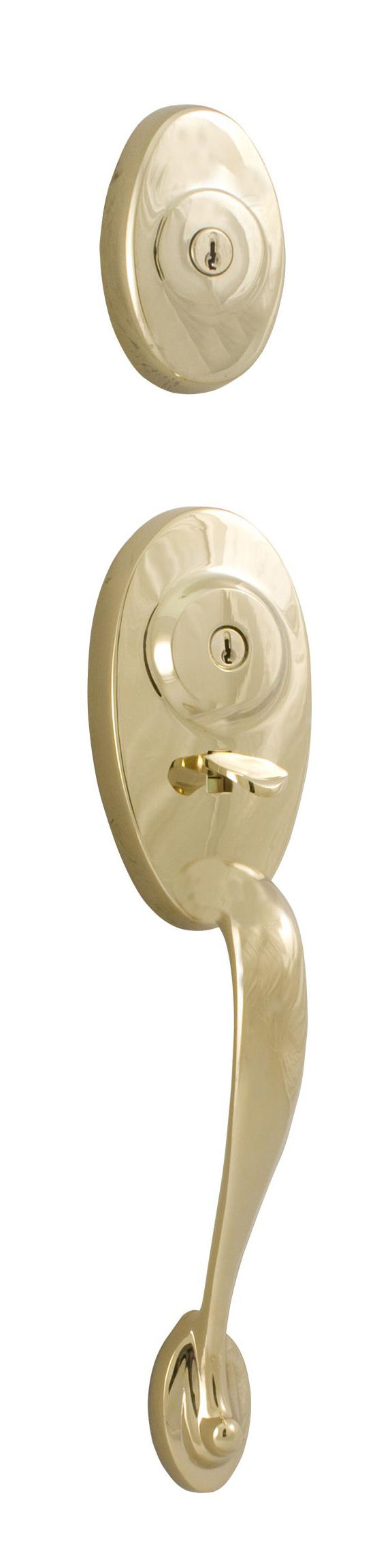

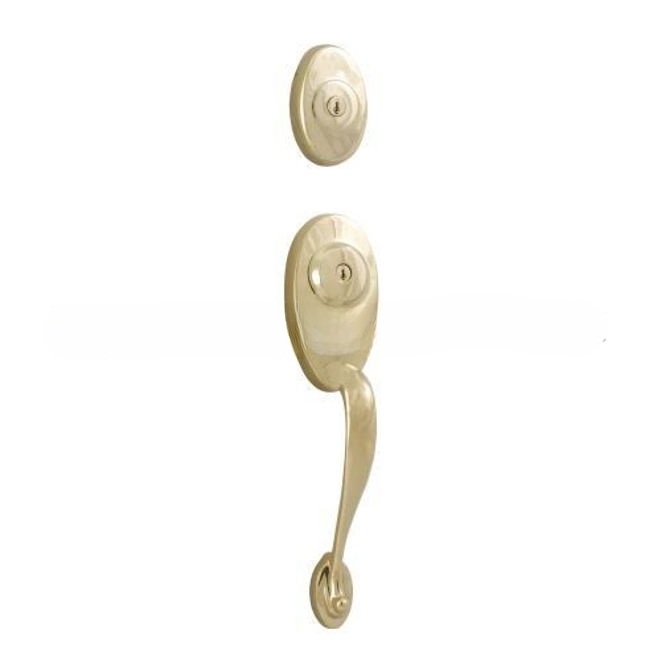

Weslock 01343-B--002D Lexington Exterior Active Dual Cylinder Handleset Lifetime Brass Finish
FEATURES
- 2 Point Locking System
- Meets ANSI A 156.2 Grade II Lock Standards
- Removable Knobs/Levers Prevents Scratching During Installation
- Panic Proof Privacy/Keyed Entry - One Turn of Interior Knob/Lever Unlocks and Opens Door
- Turn Button Locking
DESCRIPTION
Weslock LEXINGTON Single Cylinder Handleset
Standard features
Downloads and Resources Weslock CatalogWeslock General SpecificationsInstallation Instruction
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II Lock standards
- Constructed with solid brass
- Internal mechanism features Weslock s unique cylindrical Lock design.
- A 1" throw bolt with two hardened steel rollers to prevent sawing.
- Adustable latches 2-3/8" or 2-3/4" with removable faceplates
- Optional door thickness up to 2-1/4"
- Adjusts to door thickness from 1-3/4" 2"
- Fits doors prepared with 2-1/8" top ( 1/5/8" optional ) and 2-1/8" bottom cross hole and 1" edge hole
- 5-1/2" center to center cross hole spacing ( 5-1/4" minimum )
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
- Limited Lifetime PVD Finish on Exterior Polished Brass
Downloads and Resources Weslock CatalogWeslock General SpecificationsInstallation Instruction
SPECS
| Finish | Lifetime Brass |
| Function | Active |
| Series | Traditionale Series |
| Design | Lexington |
| Handing | Reversible |
| Latch Faceplate | Round Corner, Square Corner |
| Handle Style | Grip |
| Edge Bore | 1" |
| Cylinder | 5 Pin |
| Projection | 2.75 |
| Manufacturer Warranty | Limited Lifetime |
| Center to Center | 8 |
| Handle Material | Metal |
| Lock Style | Two Point |
| Product Class | Residential |
| Configuration | Handleset |
| Panic Proof | No |
| Interconnected | No |
| Material | Brass |
| Concealed Screws | Yes |
| Backset | 2-3/4", 2-3/8" |
| Width | 3.375 |
| Theme | Traditional |
| BHMA Certification | Grade 2 |
| Mount | Sectional |
| Collection | Traditionale |
| Grip Center to Center | 8.1875 |
| Height | 19.5 |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/4", 2-1/8" |
| ANSI Certification | A156.2 |
| Cross Bore | 1-5/8", 2-1/8" |
| Dimension | 18" x 2-3/4" with 2-7/8" Projection |
| Keyway | Weslock Keyway |
| Door Range | 1-3/8" to 2" |
| Hazardous Material | No |
| Cross Bore Size | 2-1/8" Bore |
| Finish code | B |
| No of inners | 1 |
| No Of Pins | 5 Pin Cylinder |
| Keyed | Yes |
| Keying | KD - Keyed Different (Standard) |
| Substrate Type | Brass |
| Door Thickness Range | 1-3/4" to 2" |
| Product Style | Lexington |
| Cylinder and Keyways | 5-Pin Cylinder, Weslock Keyway |
| Door Strike | Round Corner Strike |
| IMAP Policy | Yes |
