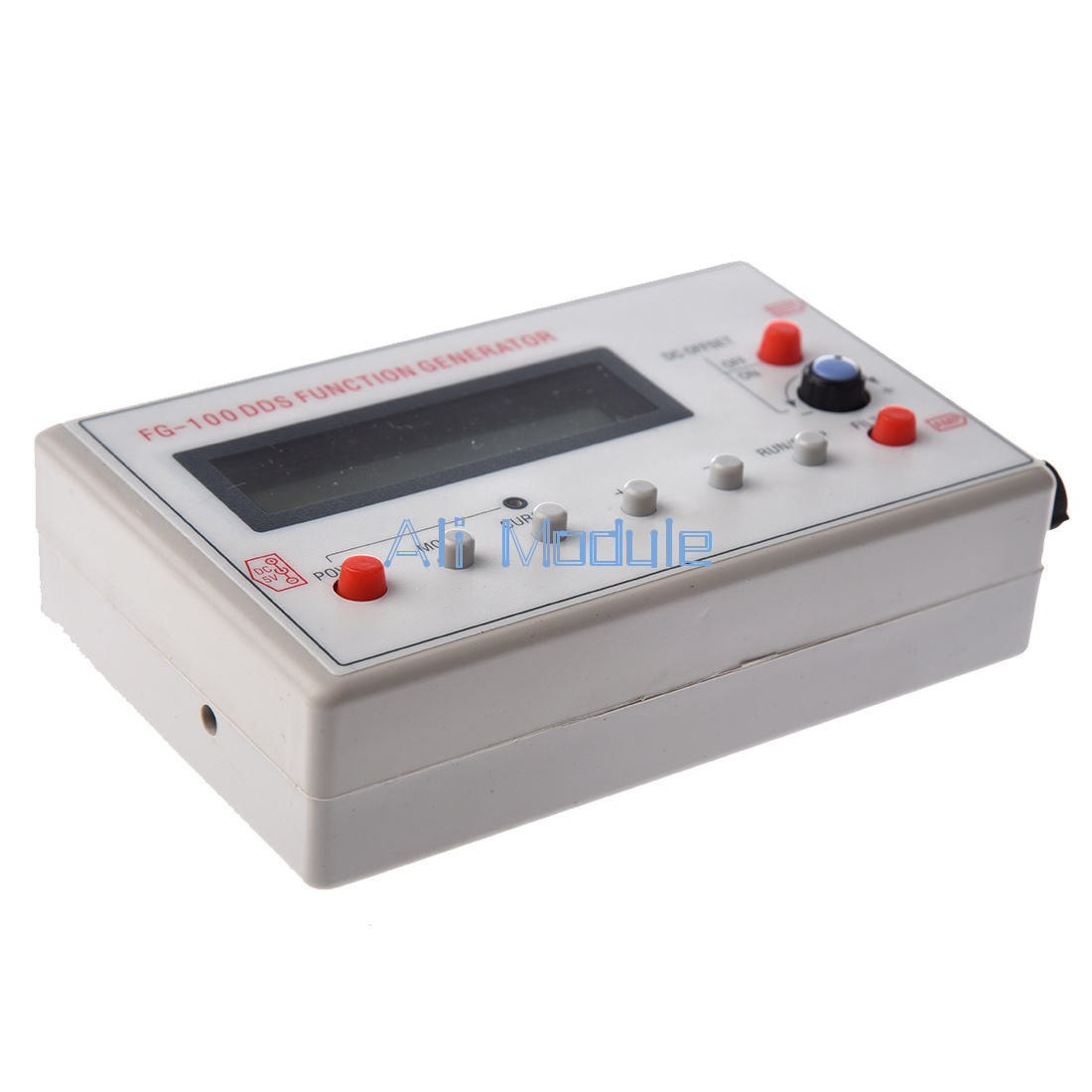

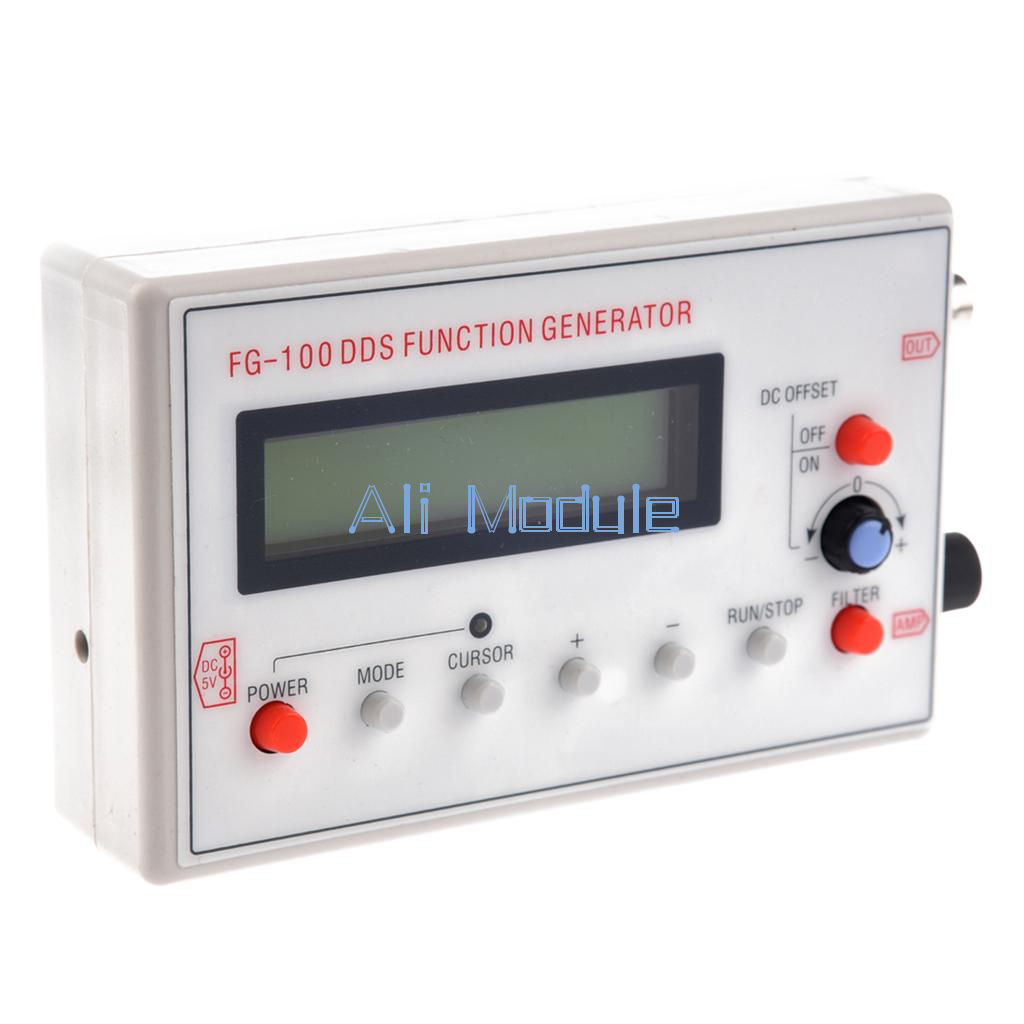

DDS Function Signal Generator Sine+Triangle + Square Wave Frequency 1HZ-500KHz

Description

Pattern Name: 1HZ-500KHZ

Used for alignment of audio equipment and up into the lower radio frequencies at the lower end of the Am band or Amateur bands

Features:

The main output waveform : sine wave and square-wave, triangle wave, sawtooth wave
Maximum output amplitude:± 10Vpp (no-load)
Output impedance :50Ω±10%
Dc bias: ± 10V (no-load)
Display: LCD1602
Resolution: 1 Hz
Power supply: DC 3.5-10V output frequency range
Sine wave: 1Hz-500KHz
Square-wave: 1 Hz - 20kHz (the valid range)
Triangle wave: 1 Hz - 20KHz (the valid range)
Sawtooth wave: 1 Hz ~ 20kHz (the valid range)


Package Included:

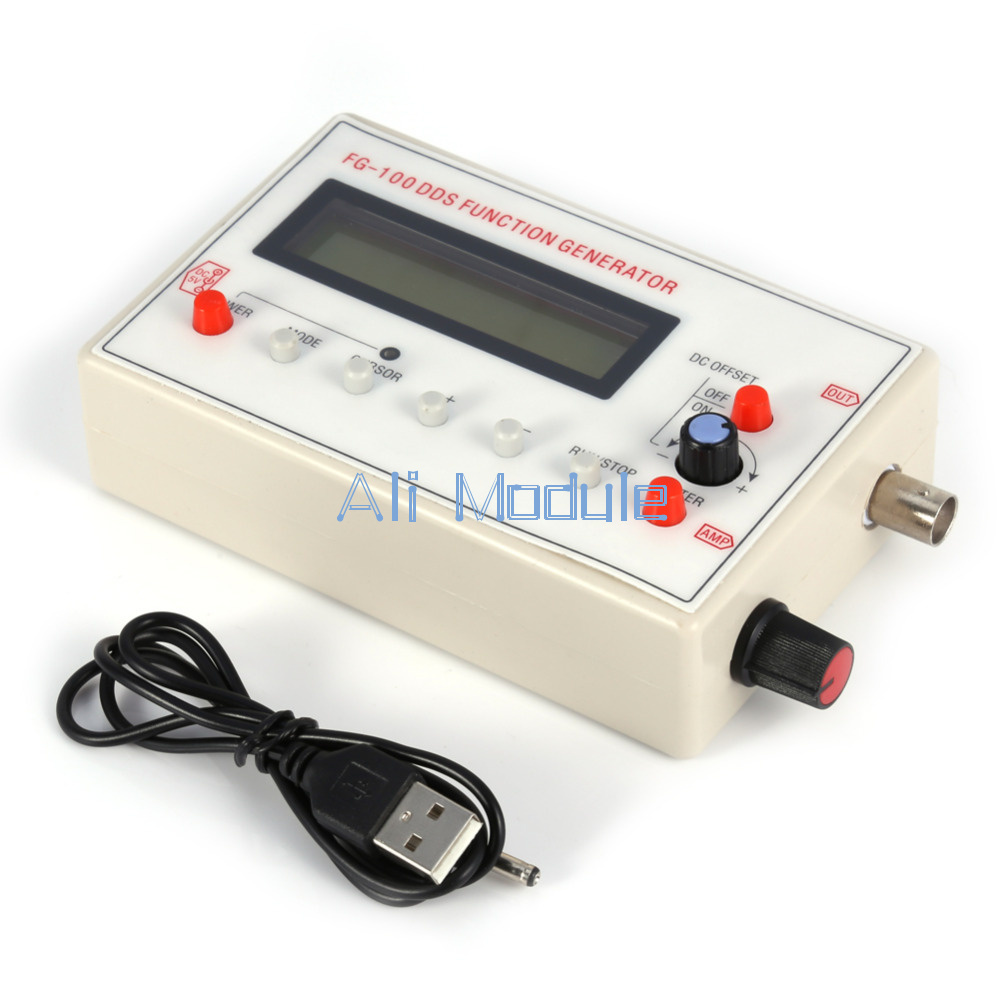

    1 x DDS Function Signal Generator

    1 x USB to DC Power Cable
