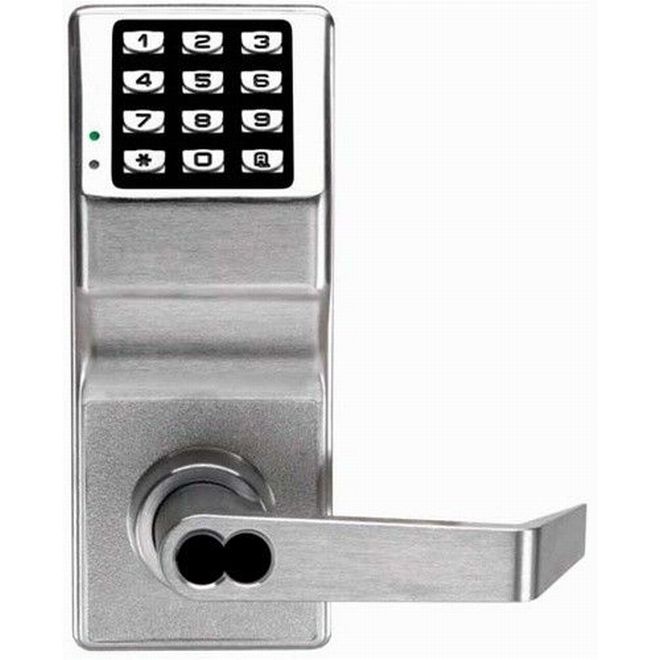

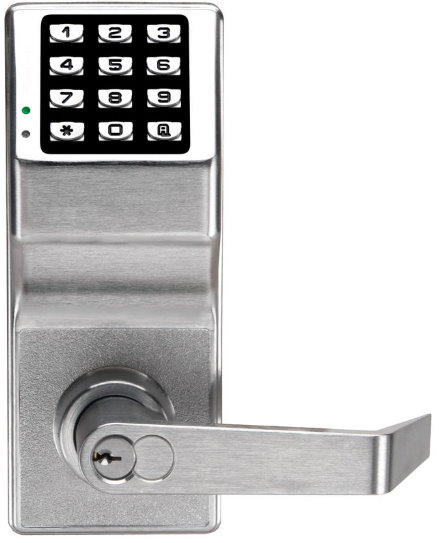

Alarm Lock DL2700IC US26D Trilogy Electronic Digital Lever Lock
FEATURES
- Constructed from Solid Steel
- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes
- 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
- Reversible Handing
- Multi-Level User Codes and One-Time Service Codes
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
- Free Passage, Group or Total Lock-Out Codes
- Typical 150,000 Cycle Battery Life
DESCRIPTION
DL2700Trilogy Electronic Digital Locks
Electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.
Features:- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
- Uses 5 AA batteries; 5 years battery life or 200,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
- Fits 1 5/8" to 1 7/8"
- 2 3/4" (2 3/8" also available)
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Non-handed
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override lock Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the HW620 tailpiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 10B - Oil Rubbed Dark Bronze
- 26D - Satin Chrome
SPECS
| Finish | US26D Satin Chrome (626) |
| Function | DL27-Standard Key Override |
| Series | DL2 Series |
| Design | Digital Keypad |
| Strike | ANSI & T-Strike |
| Backset | 2-3/4 Inch |
| Grade | ANSI/BHMA Grade 1 |
| Power | Battery Pack |
| Color Code | 626/US26D |
| Door Thickness | 1-5/8 to 1-7/8 Inch |
| Cylinder Type | Interchangeable Core |
| Fire Rated | 3 Hours {A} |
| Package Height | 7.125" |
| Package Length | 9.25" |
| Package Volume | 576.6796875 |
| Package Width | 8.75" |
| Number of users | 100 |
| Keypad Type | Electronic |
| Latch Backset Dimension | 2-3/4 In. |
| Lock Platform | Cylindrical Lock |
| Package Qty | 1 |
| Programmer | Optional |
| Reader Technology | Keypad Only |
| Software | Optional |
| Special Marks | Fire rated 3 Hours {A} |
| Strike Type | ASA; T Strike |
| Base Material | Brass or Bronze |
| Warranty | 2 Year |
| Pack Size | 1 |
| Backset size (in.) | 2-3/4 |
| Certifications and Listings | UL Listed |
| Door Handing | Universal/Reversible |
| General Material | Zinc |
| Hardware Finish Family | Chrome |
| Maximum User Codes | 100 |
| Required Battery Type | AA |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Lock Type | Keyed Entry |
| Finish Description | Satin Chrome |
| Lever Style | Straight |
| Product Type | Electronic Cylindrical Lock |
| UNSPSC | 46171500 |
| Cylinder | Less IC |
| Battery | 5 AA |
| Application | Schools; Healthcare; Pharmacies; Rental Properties; Offices; Retail; Airports |
| Hand | Non-Handed |
| Handing | Non-Handed |
| Power Source | 5 AA Batteries |
| Latch Throw | 1/2 Inch |
| ADA Compliant | YES |
| Finish Family | Satin Chrome |
| Included Components | (5) AA Alkaline Batteries; Screws for Wood/Metal Jambs |
| Strike Size | 1-1/8" x 2-3/4"; 1-1/4" x 4-7/8" |
| Standards | BHMA Certified; UL Listed; FCC Certified |
| Function Description | Clutch Mechanism Permits Turning Lever Without Retracting Latch, Reduces Stress on Lock Bodies and Spindle. Outside Lever Free Turning in Locked. Entering Access Code/Key Bypass/Remote Bypass Allow Lever to Retract Latch. Inside Lever Instant Egress |
| Front Size | 1-1/8" x 2-1/4" |
| Function Family | Digital Lock |
| Features | Standard ANSI 161 Series Prep; Vandal-Proof All Metal Keypad; 100 Different Multi-Level User Codes: Master, 10 Managers, 90 Users, 3 Service Codes; Battery At 200000 Cycles; 2-Wire Remote Override; Programmable Relay |
| Manufacturer Parent | Napco Security Technologies |
| Sub-Series | EAC_Electronic_Cylindrical_Locks_alarm_lock_4 |
| Dimension | 3-1/4" x 8-1/4" |
| Use With | Electric Lockset |
| Material | Zinc Alloy |
| Manufacturer Warranty | Limited 2 Year Warranty |
| UL Listing Type | UL10C |
| Power Supply | 5 AA Batteries |
| Door Range | 1-5/8" to 1-7/8" |
| Hazardous Material | No |
| Strike Dimension | 1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike |
| Cross Bore Size | 2-1/8" Bore with additional through-bolt holes |
| Finish code | US26D |
| Latch Faceplate Dimension | 1-1/8" x 2-1/4" |
| Chassis Type | Cylindrical Chassis |
| No of inners | 1 |
| Lever | 00 - Standard straight return lever |
| Audit Trail | No |
| Weather Resistance | Non-weatherproof |
| Battery Operated | Yes |
| Collection | DL2700 Series |
| Door Thickness Range | 1-5/8" to 1-7/8" |
| Standard Cylinder | Conventional Cylinder |
| Reader Type | Keypad |
| Door Strike | T-Standard and ASA |
| User Codes | 100 |
| Electronic | Yes |
| Weather Proof | Optional |
