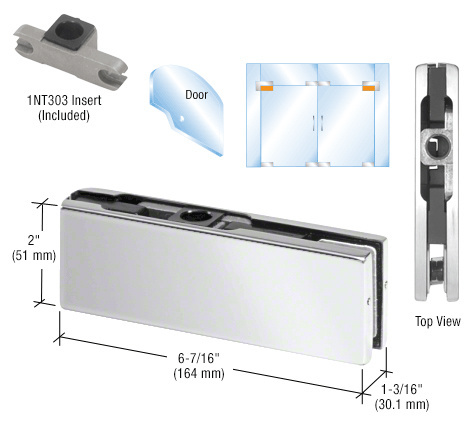

CRL PH20APS Polished Stainless Top Door Patch Fitting with 1NT303 Insert
FEATURES
- With or Without Locks
- Use Monolithic Tempered Glass
- 2-3/4" (70 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
DESCRIPTION
CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.
Product Warning:
These fittings are not for use with Laminated Glass.
.
SPECS
| Shipping Weight | 1 lb (454g) |
| Finish | Polished Stainless |
| Maximum Panel Weight (Pounds) | 194 |
| Pivot Backset (Inches) | 2-3/4 |
| Height | 2 |
| Maximum Width | 42 |
| Works with | 1NT303 |
| Glazing Thickness | 3/8 , 1/2 |
| Length | 6-7/16 |
| Finish/Color | Polished Stainless Steel |
| Maximum Door Height | 102 |
| Type | Top |
| Insert Type | 1NT303 |
| Maximum Panel Weight | 194 lbs. (88 kg) |
| Pivot Setback | 2-3/4 |
| With Insert | Yes |
| Load Capacity | N/A |
