Description:
This machine is widely used in the aluminum cylinders of disassembly machines of various brands. Its quality is comparable to the original accessories (This machine is an accessory installed on the tire grilling machine).
Specifications:
Color: Silver
Material: Stainless steel, Aluminum Cap

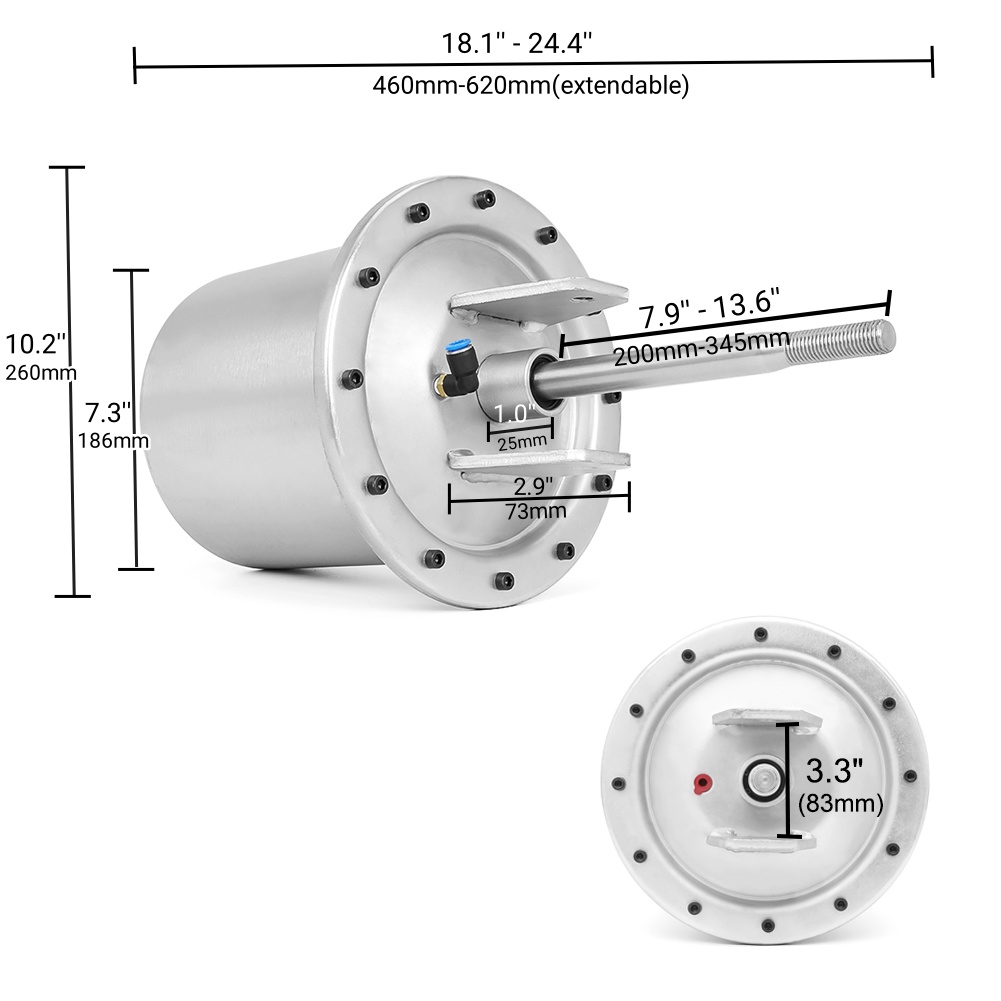

Maximum extension length of piston rod: 7.9''-13.6''/200-345mm
Inner cylinder diameter: 7.3"/186mm
Piston rod diameter: 0.8"/20mm
Trachea size: 0.3"/8mm
Package size: 19×10.2×10.2"/48×26×26cm
Gross weight: 15lbs/7kg
Maintaining:
1. Disconnect the power supply and air source before maintenance.
2. After the daily operation, please wipe the machine carefully and lubricate the sliding and transfer parts frequently.
3. Often check the gas-water separator and oil mist, when the water is too much, timely release, when the amount of oil is insufficient timely supplement.
4. Make sure that there is enough lubricating oil in the reduction box. The oil level can be seen from the oil window.
Questions & Answers:
1. Cylinder cylinder rust -- replace cylinder cylinder
2. Cylinder piston seal wear-replace ∮185 V-ring seal
3. The cylinder piston has air holes -- replace the piston
4. Five-way valve string air-replace the five-way valve
5. Air inlet pressure not up to requirements - repurchase the compressor
Package Content:

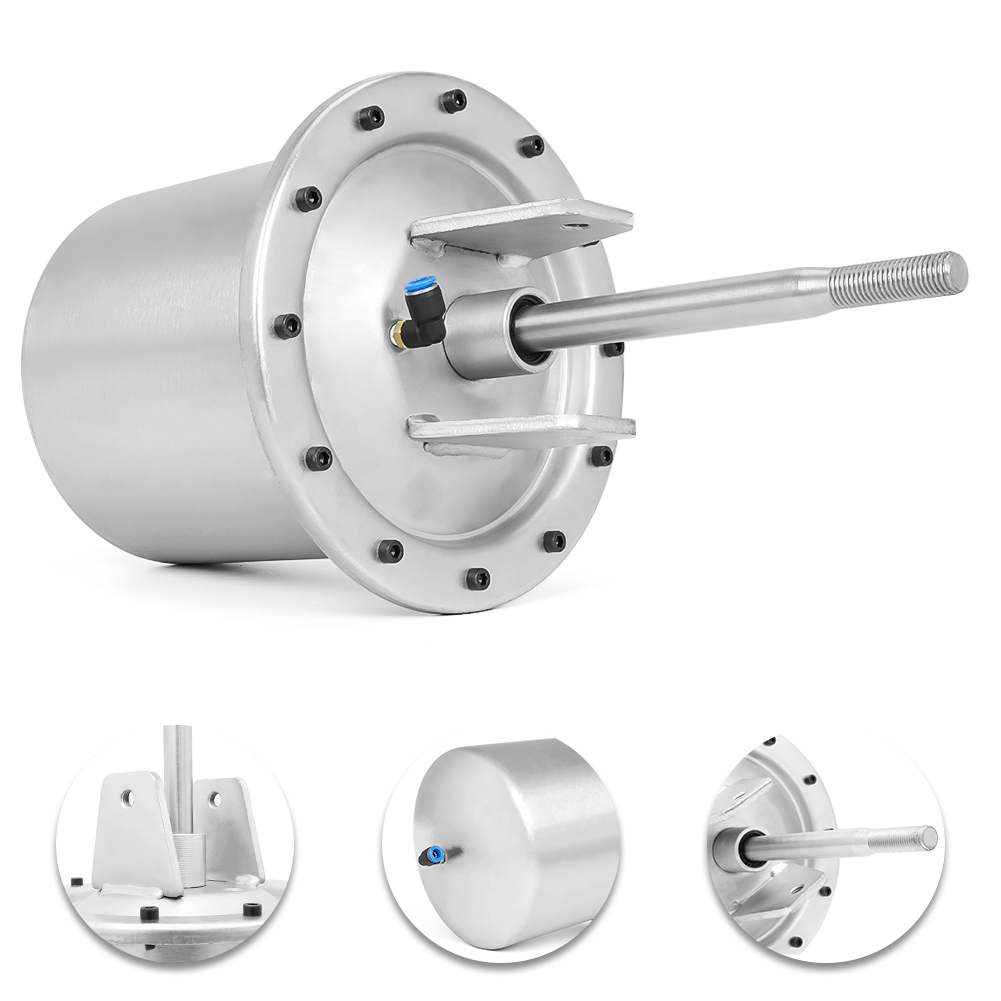

1× Tire Changer Bead Breaker Cylinder
