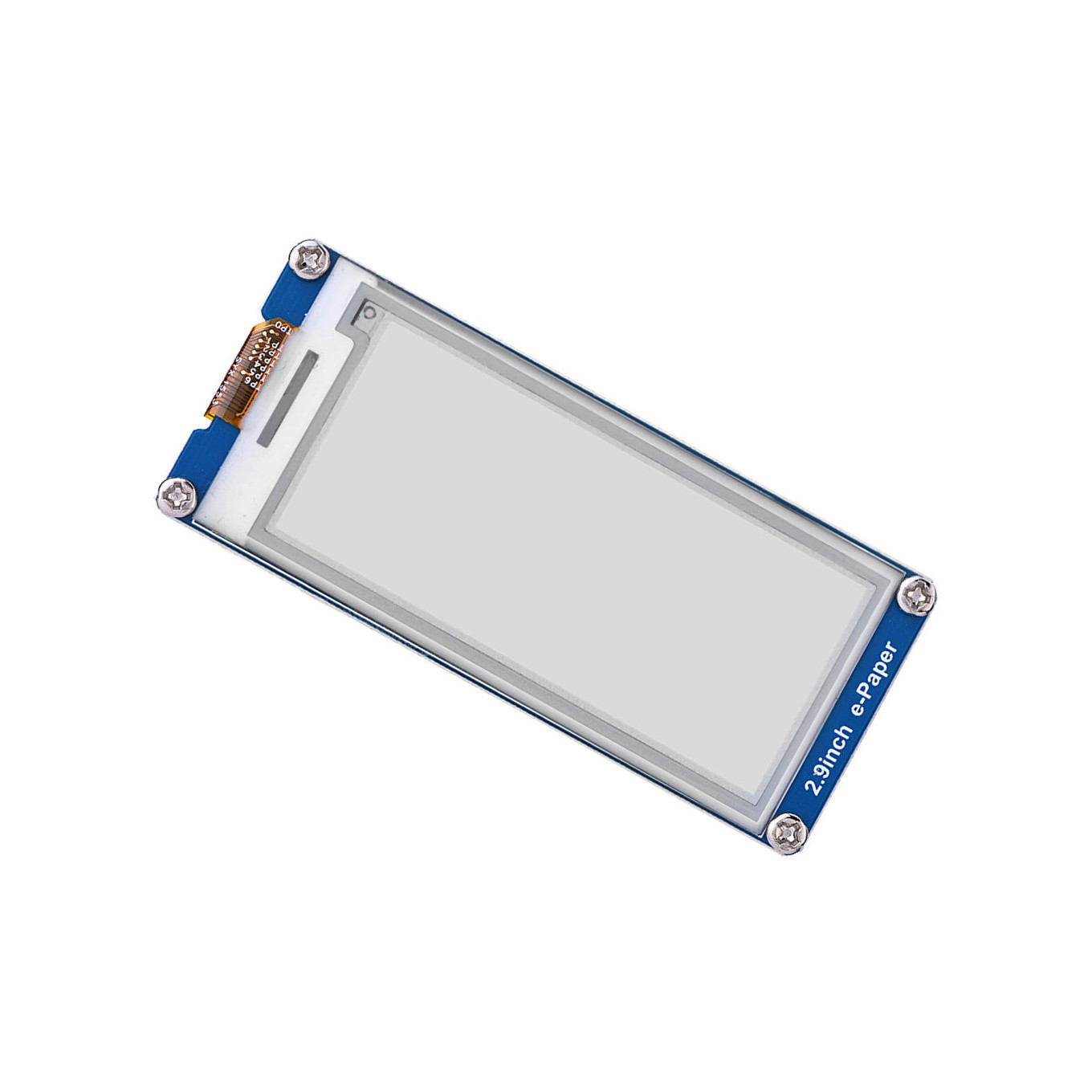

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features:

No backlight, keeps displaying last content for a long time even when power down.

Ultra low power consumption, basically power is only required for refreshing.

SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.

Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications:
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI

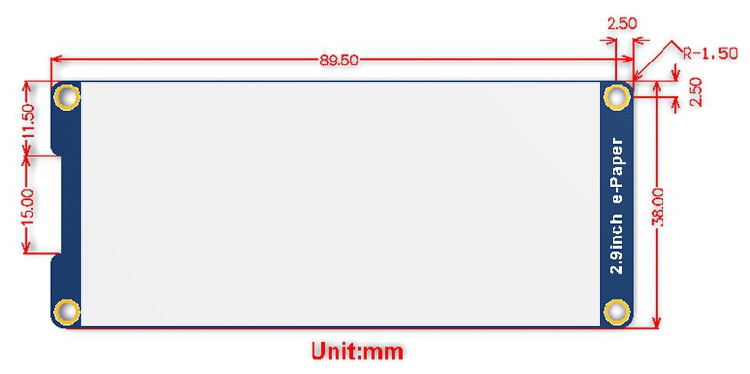

Outline dimension: 89.5 * 38mm / 3.52 * 1.50in
Package weight: 35g
Display size: 66.89 * 29.05mm
Dot pitch: 0.138 x 0.138
Resolution: 296 x 128
Display color: black, white
Grey level: 2
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

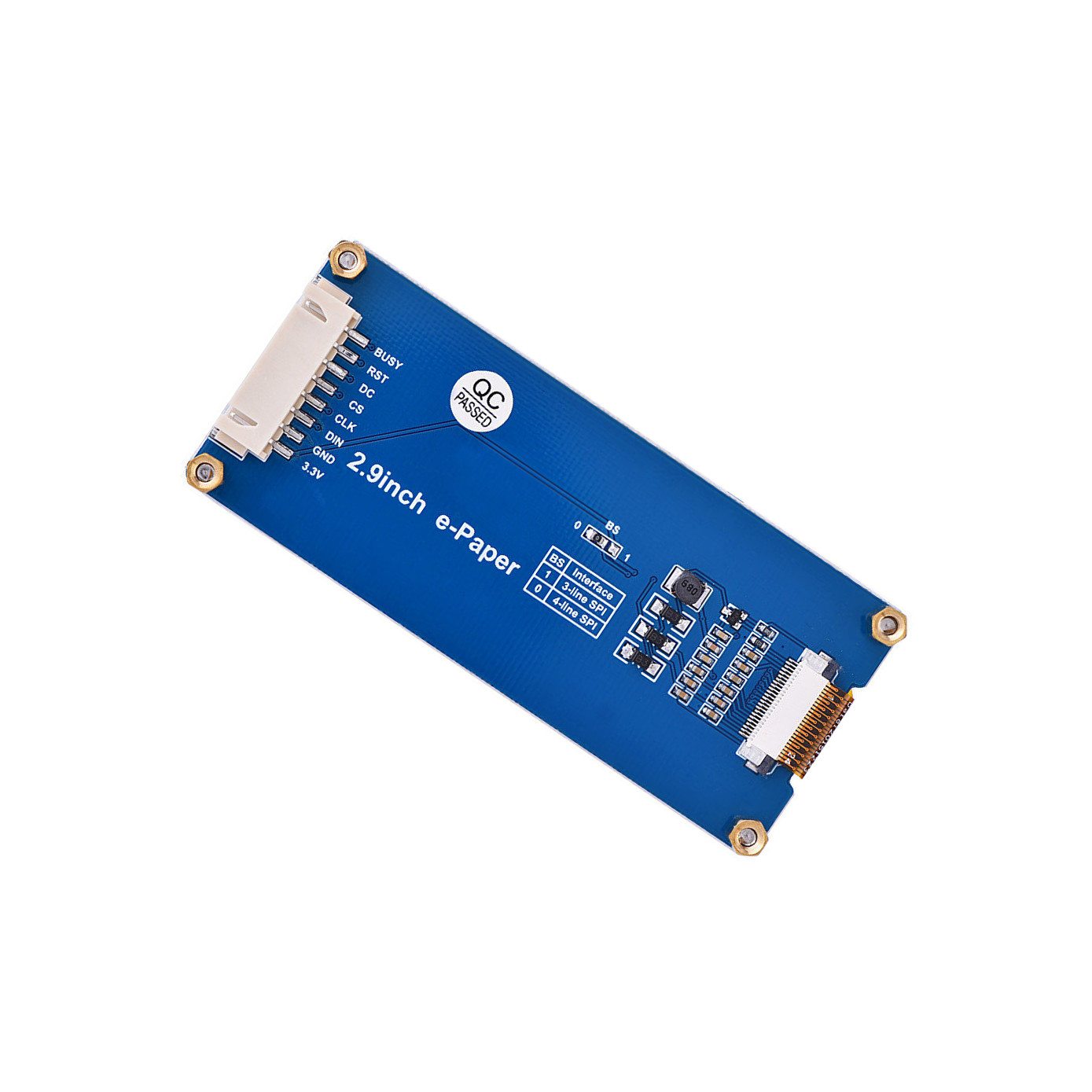

Interfaces:
SYMBOL: DESCRIPTION
VCC: 3.3V
GND: Ground
DIN: SPI MOSI pin
CLK: SPI SCK pin
CS: SPI chip selection, low active
DC: Data/Command selection (high for data, low for command)
RST: External reset, low active
BUSY: Busy status output, low active

Package Include:

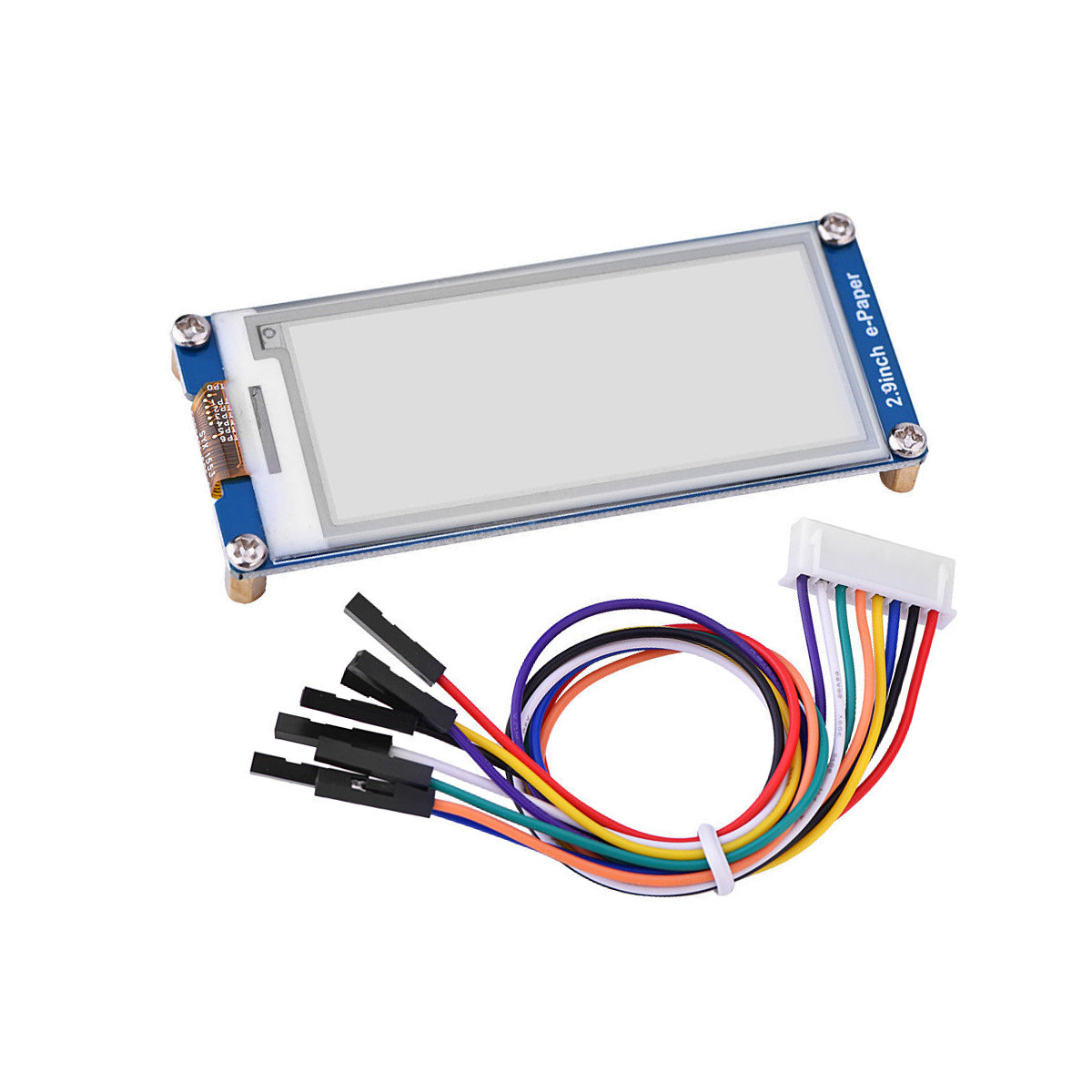

1 x 2.9inch e-Paper Module
1 x XH2.54 8Pin Cable (20cm / 7.87in)
