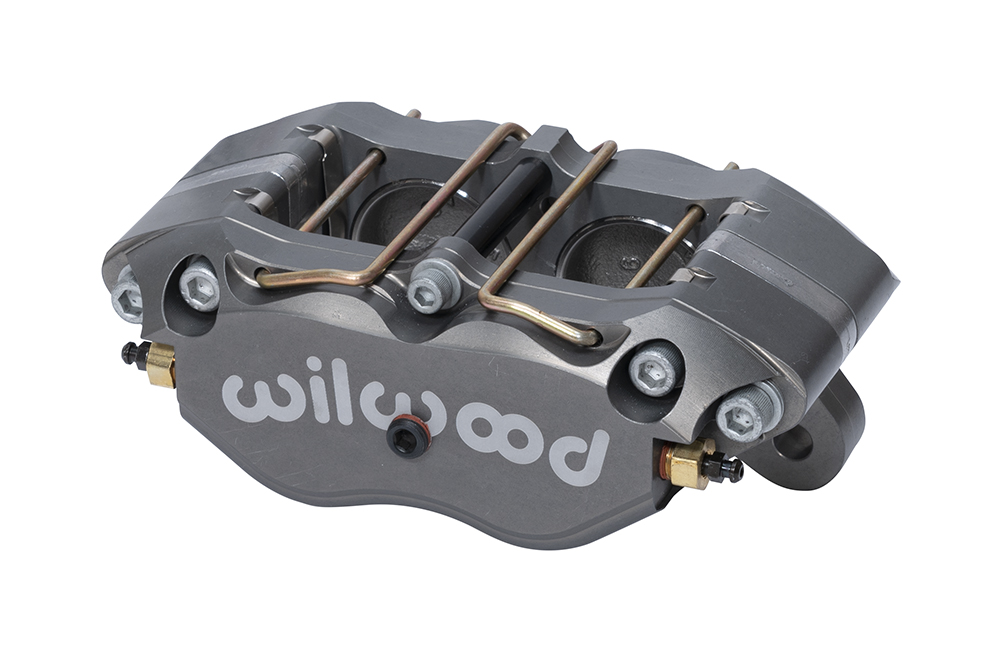

Wilwood Caliper-Dynapro 5.25in Mount 1.75in Pistons .81in Disc - 120-9693-SI

Description

BRAND NEW IN BOX


DESCRIPTION

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show.

The strength of the DynaPro is a combination of process and design. The DynaPro is stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power.

The DynaPro is loaded with other enhancements for performance and wider application. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications.

PRODUCT INFORMATION

Pistons
Piston Count 4
Piston Area (in²) 4.80
Piston Type Stainless
Dust Boot No
Rotor Width (in) 0.81
Rotor Diameter(in) 13.06
Pad Area (in²) 6.36
Pad Volume (in³) 2.1
Duty Rating & Material
Material Aluminum
Weight(Lbs) 3.8
Color Ano
Finish Type III Ano

Mounting
Mount Center(in) 5.25
Mount Side Universal
Mount Type Lug
UPC 889545007190

PRODUCT INFORMATION

Driving Environment           Vehicle Sub-Types                         Application Duty
Street Rods                                                                                  Heavy Duty
Street Performance                          Domestic                             Heavy Duty
Street Performance                             Import                               Heavy Duty
Rally                                                                                            Medium Duty
Road Race                                                                                 Medium Duty
Late Model Dirt              STARS, UMP, IMCA, etc...                    Heavy Duty
Drag Racing                                                                                 Heavy Duty
Northeast Modified                     Dirt or Pavement                     Medium Duty
Open Wheel              Sprint, Midget, etc… Dirt or Pavement    Medium Duty
Off Road                                                                                    Medium Duty
Industrial                                                                                    Medium Duty
