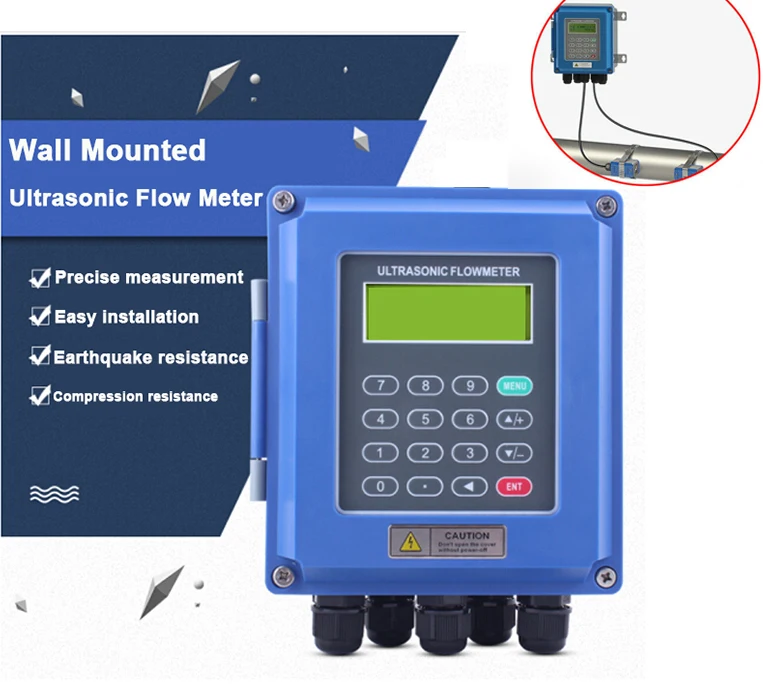

Ultrasonic Flow Meter Flowmeter DN25~100mm with TS-2 Small Transducer
Notice:
This type of Ultrasonic flow meter package with TS-2 small type Transducer (size: 42*25*32mm) for Pipe Diameter DN25~100mm, Temperature : -30~90C
TUF-2000B Flow meter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed water,cooling water,river water,plant.etc.
Feature :
High Accuracy
1%
Wide measuring range
Several types transducer for selection, pipe size from Dn15mm to Dn6000mm (optional)
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high
voltage line etc.
Powerful Recording Function
Automatically record the following data:
1. The totalizer data of the last 512 days/128 months/10 years
2. The time and corresponding flow rate of the last 6 4 times of power on and off events
3. The working status of the last 32 days
Support Heat Measurement
Connect the temperature transducer ,can finish the heat/energy measurement
Support SD card Memory
Optional SD card
Working Environment:
| Main Unit | Transducer | |
| Protection Level | IP67 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters:
| Accuracy | ≤1% |
| Velocity range | 0~±10m/s, Bi-directional measurement |
| Pipe size | DN25-100mm |
| Temperature | -30~90℃ |
| Type of liquid | Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed. |
| Signal output | 1 way 4-20mA output 1 way OCT pulse output 1 way Relay output |
| Signal input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data storage | SD card regularly store the pre-set results(optional) |
| Power supply | DC8~36V or AC85~264V |
Standard Configurations:
1. Ultrasonic Flowmeter
2. a pair TS-2 Transducer
3. 2 x5m Signal cable
4. Steel Belt
5. Certificate of Warranty
