​CE FCC certificate:

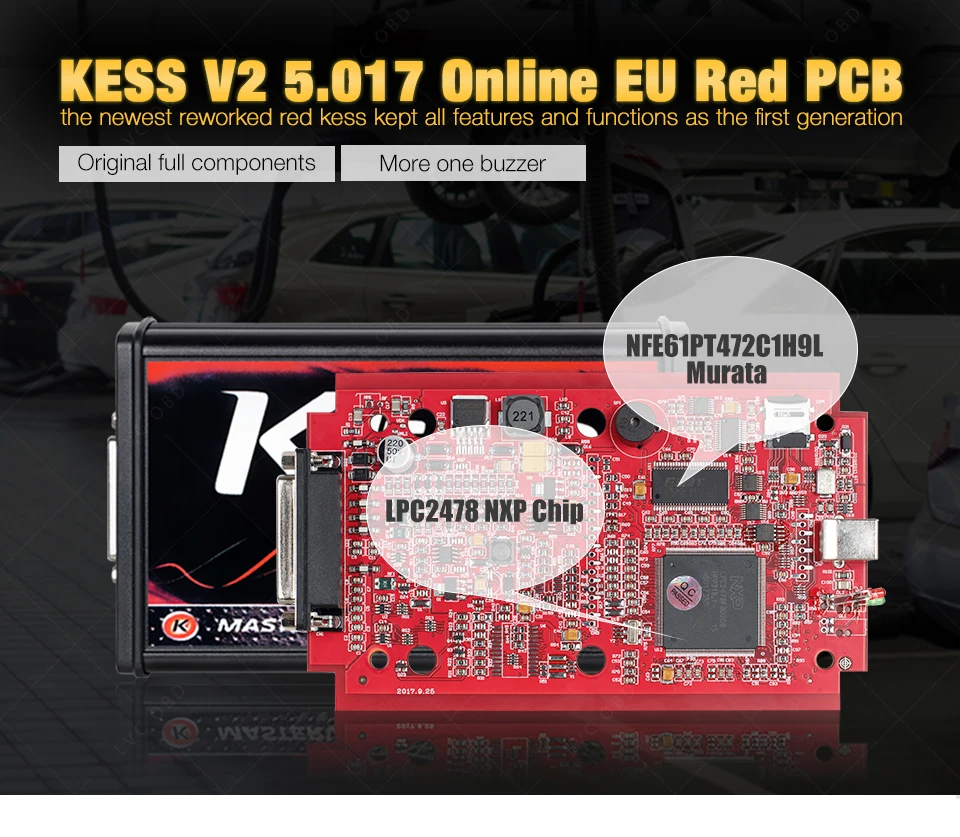

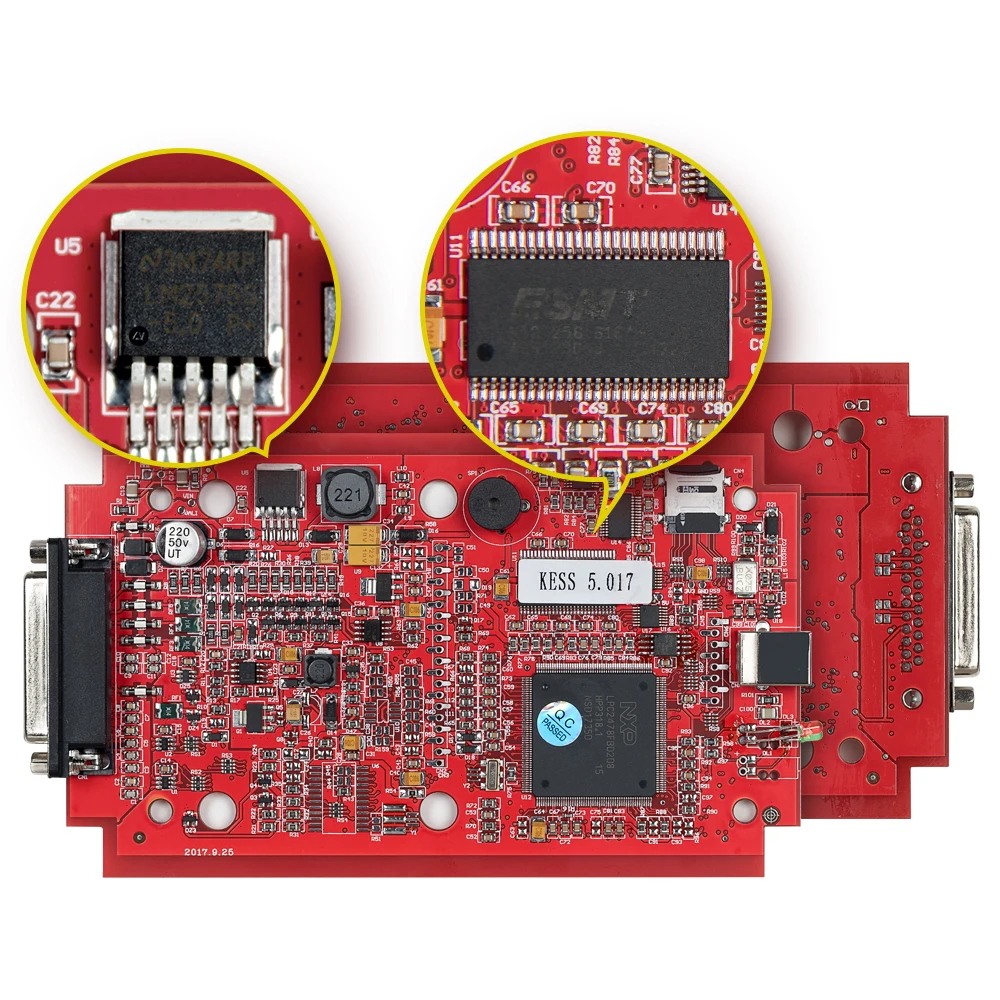

KESS V5.017 EU red PCB Feature :

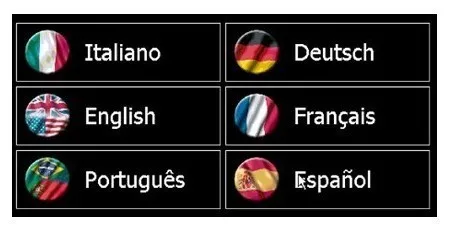

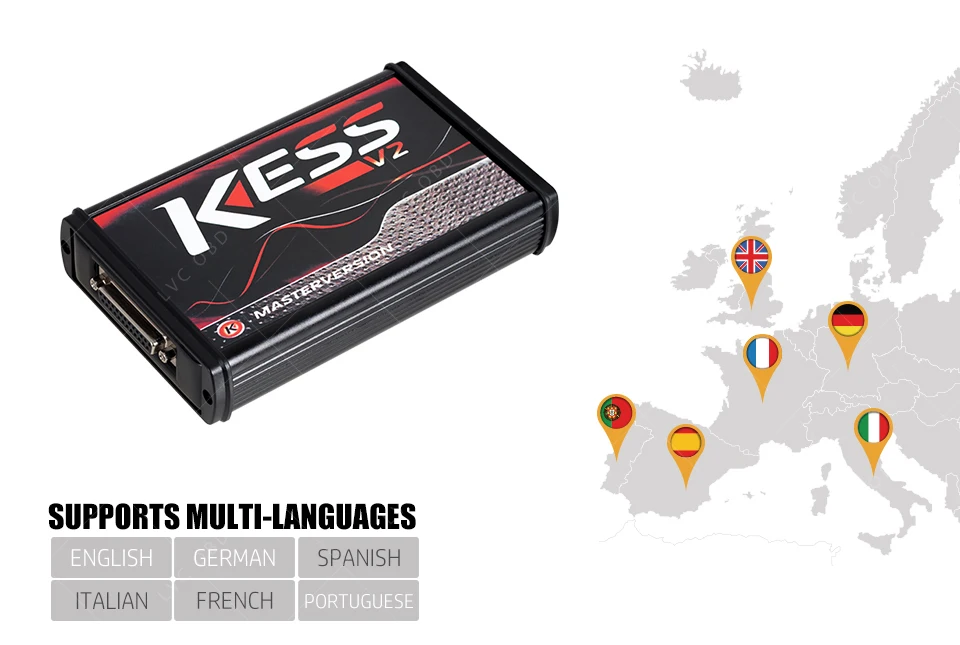

Support language:English, German, Spanish, Italian, Portuguese, French



1.the left upper corner and the lower right corner notch size is not the same

2.Extra buzzer

3.WFs = Infineon, BCR112 NPN Digital Transistor

4.27E = ON Semiconductor NUP2105LT1G

5.6DW = NXP BC817,215 NPN Bipolar Transistor

6.A6c =MMUN2113LT1G / MMUN2113LT3G

7.K5B = BC807-25-7-F PNP Bipolar Transistor

8.Using imported Japanese Murata filter NFE61PT472C1H9L





Kess V5.017 has several built in features and safeguards including:



1.Check of the battery voltage in real-time

2.Full Recovery function in case of problems

3.Automatic correction of the Checksum, (where available)

4.Boot-Loader mode supported

5.Management of the programming counters

6.ScanTool function to remove DTC

7.Several options of reading/writing speed

8.Option to write full file/section of the map

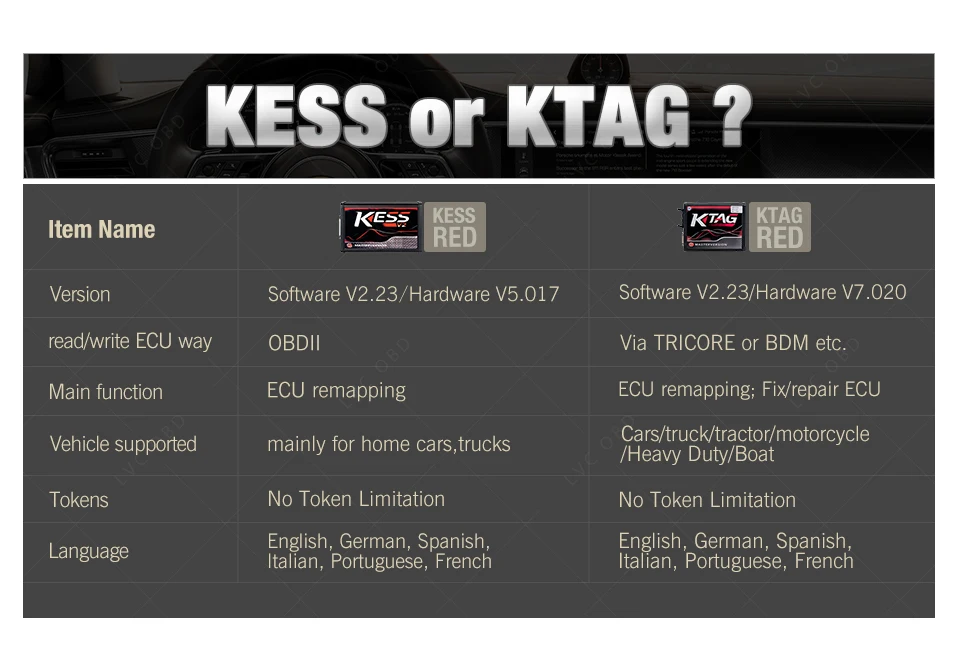

Kess or KTAG:



Item Name	KESS Red	KTAG Red
Version	Software V2.23/2.47 Hardware V5.017	Software V2.23 Hardware V7.020

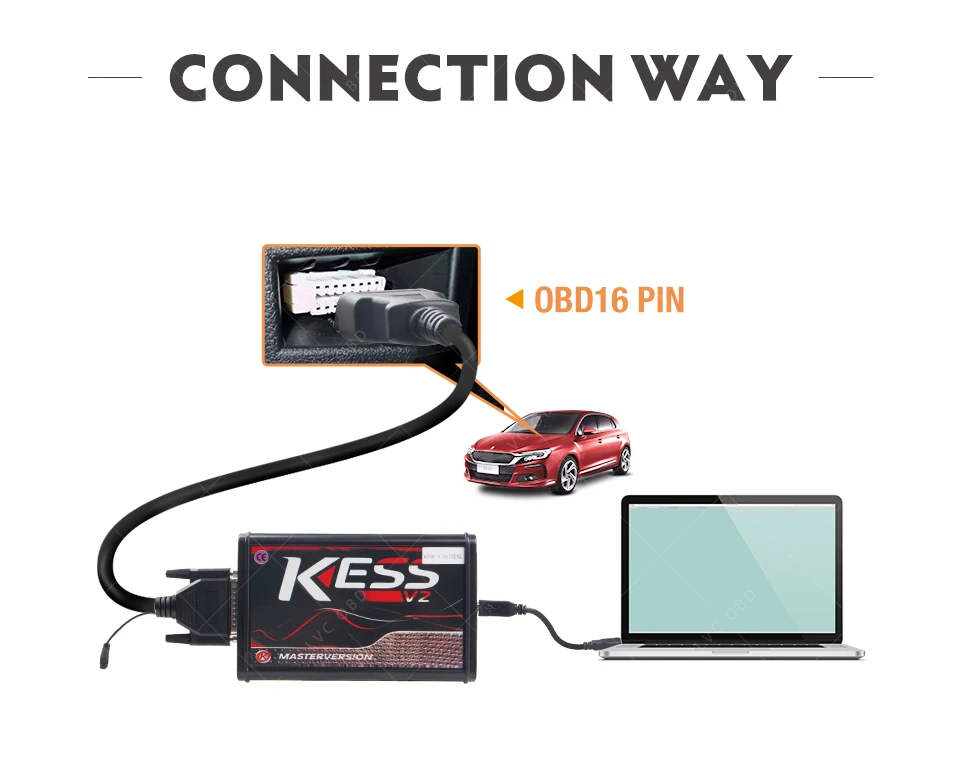

read/write ECU way	OBDII	via TRICORE or BDM etc.
Main function	ECU remapping	ECU remapping; Fix/repair ECU
Vehicle supported	mainly for home cars,trucks	Cars/truck/tractor/motorcycle/Heavy Duty/Boat



FAQ Frequently Asked Questions:



Q: What is the difference Between KESS V2 and K-TAG?

A: KESS V2 has OBD function, but Ktag does not have this function.



Q: How to do checksum for kess v2? Does the kess v2 automatically re-write it?

A: After reading the software, the device will automatically do checksums.



Q: I get “checksum error”druing read ECH with KESS V2, what I can do?

A: please search the software " microsoft visual C++ 2005,2008,2010" on google, then install it on your computer, then it can solve this problem.



Q: Kess V2 describes "9. Full integration with ECM Titanium" but I didn’t find it has ECM Titanium.

A: You misunderstood, this sentence means KESS V2 can work with ECM Titanium, not means KESS V2 contains ECM Titanium. KESS V2 is an ECU programming tool, and ECM Titanium is a set of programming software for adjusting power.



Q: KESS V2 has error “Connections not established”

A: Please check whether you install the KESS V2 driver well in device manager



Q: After I open “KSuite.exe” and try to run KESS V2, all of the following icons are gray and locked, I can't do any thing

A: Please check whether you install the KESS V2 driver well in device manager

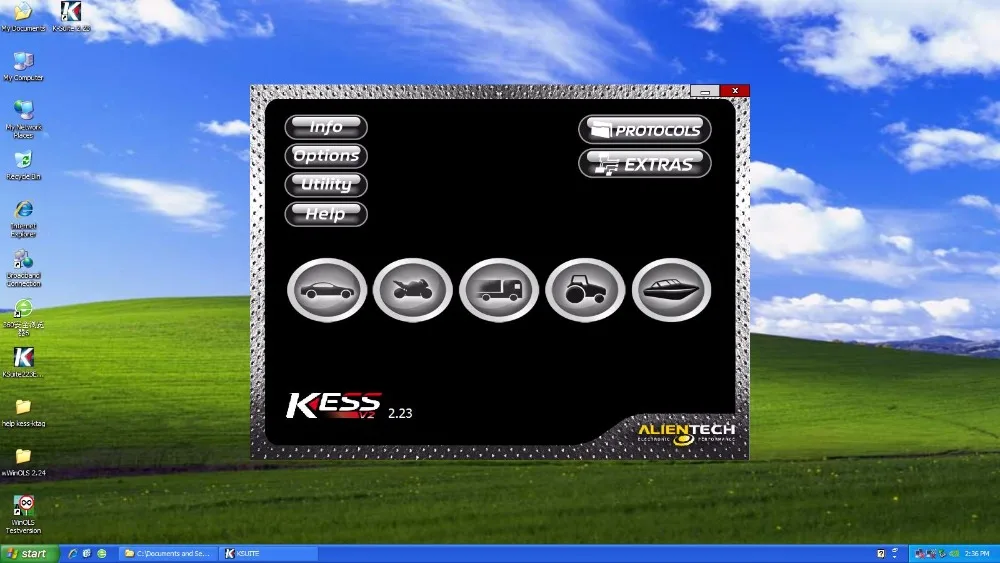

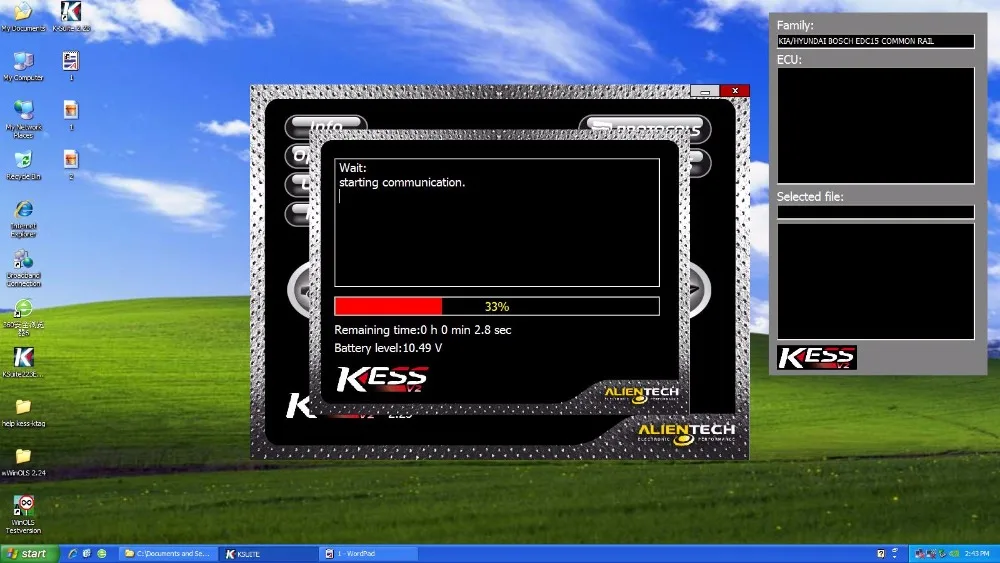

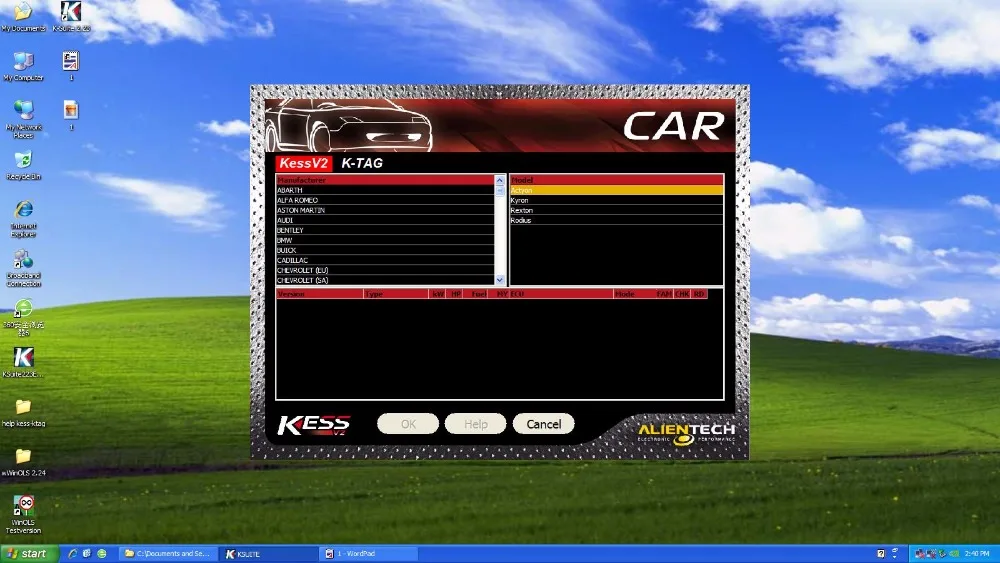

Software show:
