From CN via fast shipment within one days handling time ship out for you

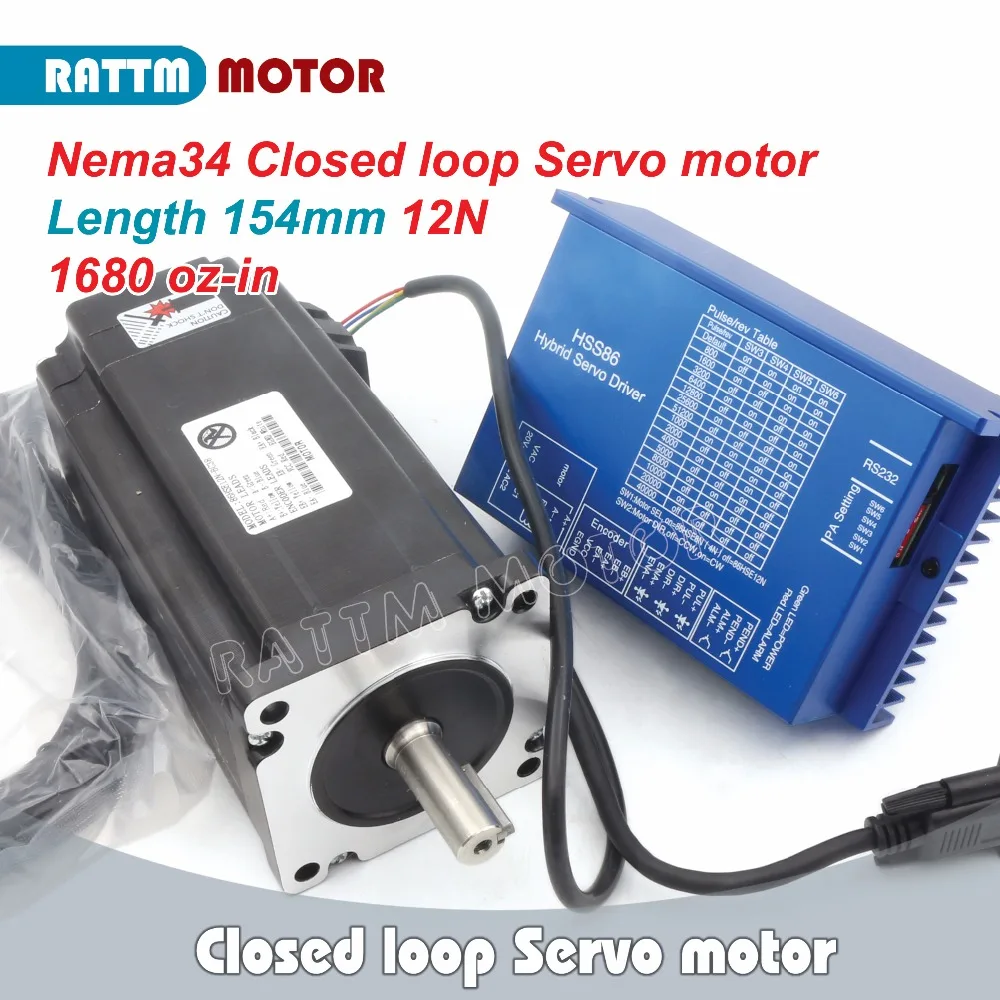

1 x 86HSE154 12N.m Closed Loop Servo motor 154mm
1 x HSS86 Servo Driver
1 x 3M Extension Wire
1. Closed loop servo motor
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-

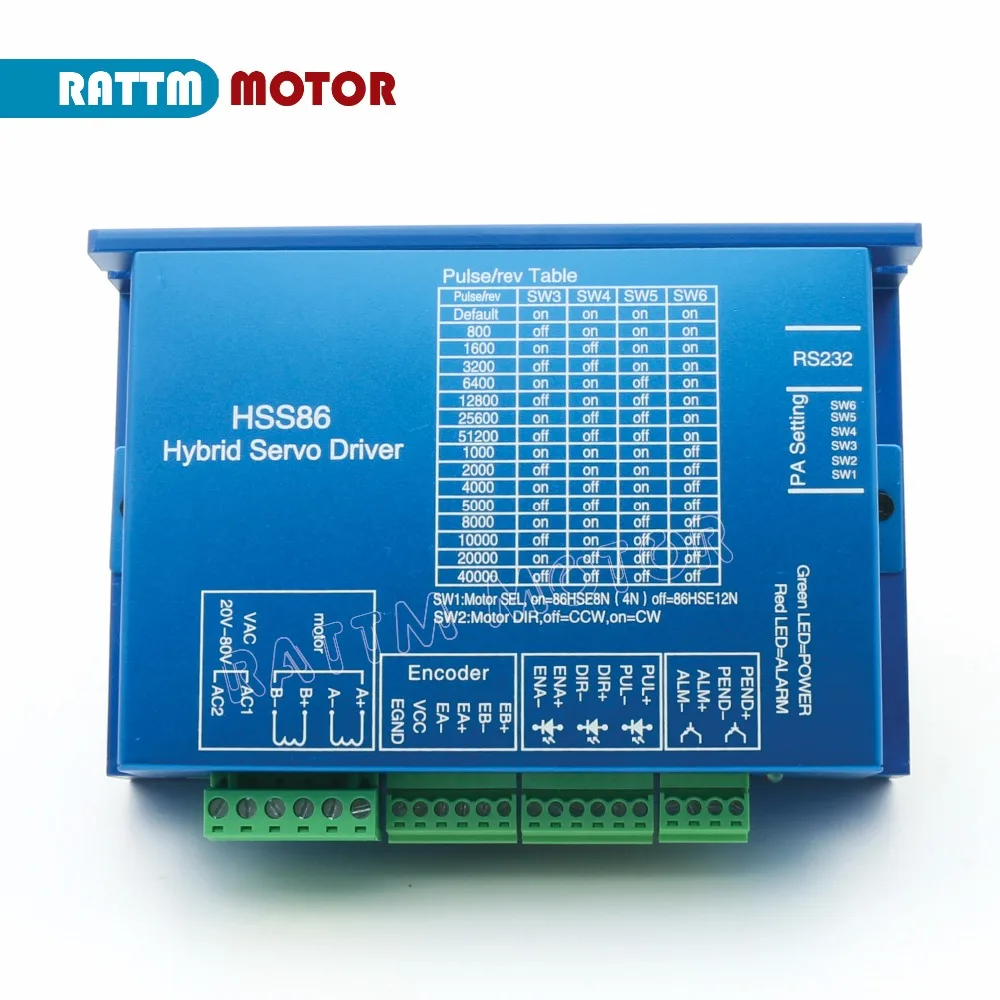

2. HSS86 2-Phase Hybrid Stepper Servo Driver
2.1) Overview
HSS86 is 2 phase nema 34 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.2.3 ) Electrical Parameter
Voltage range | AC24~70V or DC30~100V |
Peak current | Peak 8.0A (current change according to load) |
Logic input current | 7~20mA |
Frequency | 0~200KHz |
Suitable motor | 86HSE12N, 86HSE8N, 86HSE4N |
Encoder lines | 1000 |
Insulation resistance | >=500MΩ |
2.4) Applications
Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, laser phototypesetting, graph plotter, cnc machine, automatic assembly equipment and so on.
2.5) Installation Dimension
