DESCRIPTION
Specifications:
1.Model Type: High Power Integrated Chip(The shape of chip is little different from our pictures which might be square one.The functions and connection are the same,hope for your understanding,thank you!)
2. Product name: Integrated LED Bead
3. Shapes: Square
4. Integrated way:
5. Power: 10W/20W/30W/50W/100W
6. Forward Voltage: 30-36V
8. Luminous Flux: 90-110LM/W
9. color-rendering index: 60-85
10. Beam Angle: 120 degrees
11. Working Temperature: -20 centigrade to 60 centigrade

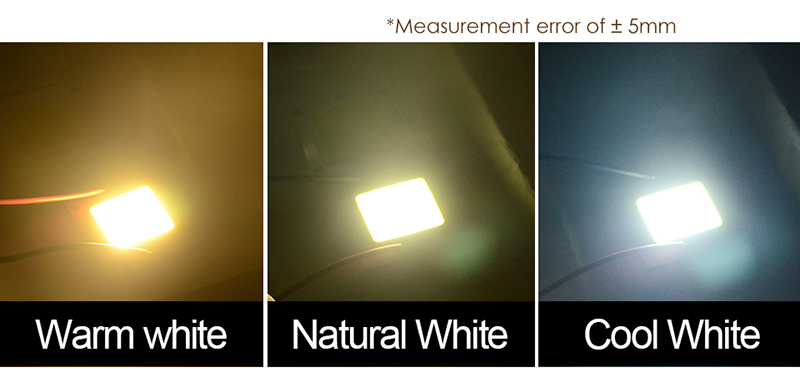

12. Color Temperature: Warm White: 3000-3200K
White: 6000-6500K

13. Life Span: 120,000 Hours

 Product Features

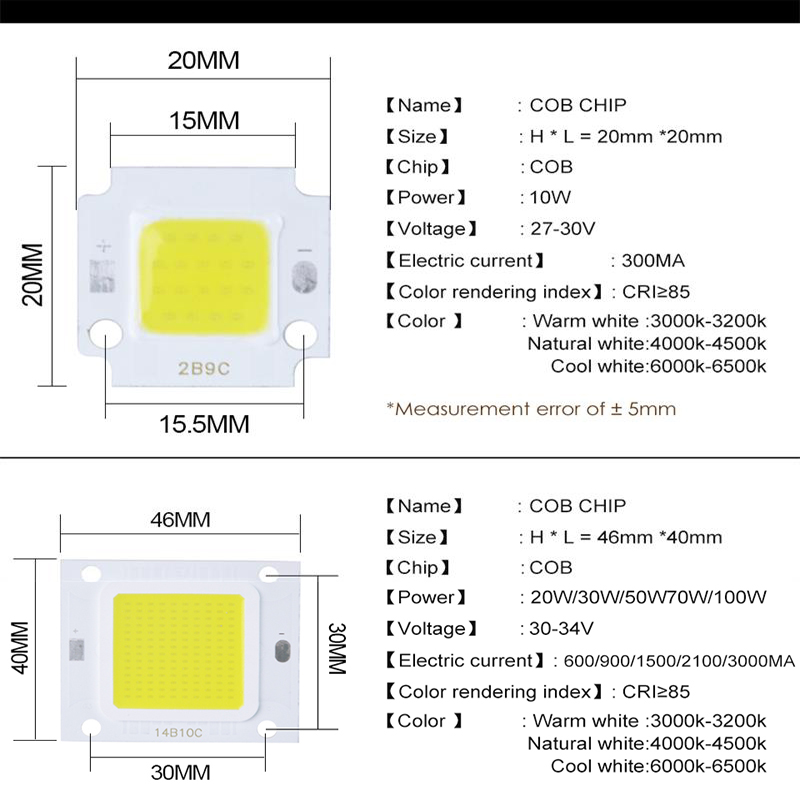

Section A : 30V 10W 20W 30W 50W 70W 100W need  a led driver

Section B : 220V 20W 30W 50W Smart IC No need driver



20W 30W 50W  60X40MM 110V 220V COB LED

Attention:It must need a heatsink aluminum for cooling, do not light it without heatsink aluminum.

Specifications:
Outside size: approx. 60*40mm/2.36*1.57\'\'
Thicjness: approx. 1mm
LED Size: approx. 25*25mm/0.98*0.98\'\'
Voltage: 220V 60Hz
Light effect: ≥80
Power factor: ≥0.9
Color temperature: White 6000-6500K, Warm White 3000-3200K Spectrum 380-840NM
Material: Aluminum substyate

Note:
1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
