Car Van EVAP Smoke Machine Fuel Pipeline Leakage Detector Tester Diagnostic Tool

ANCEL S3000 is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as : Intake System Test, Exhaust Systems Test, Car Sealing Test, Fuel Tank System Test.
All included except test oil.
Just need to buy a mineral-base baby oil to start.

ANCEL S3000 Advanced Technology
✔️ Crankcase system test
✔️ Intake System Test
✔️ Car Sealing Test
✔️ Fuel Tank System Test
✔️ Turbo System Test
✔️ EVAP System Test
✔️ Exhaust Systems Test
✔️ Various Pipe Fittings Test

Specification:
Output pressure:7-12 PSI
Output flow:＜6L/min
Power supply: DC12V,vehicle battery
Air source: built-in
Test oil capacity:10ml-20ml
Material:Iron
Length of Power Cord: 2.5Meters
Length of Smoke Hose: 2.5Meters
Test Oil:Mineral Oil or Baby Oil(oil not include)
Multi Protections:Oil Outlet, Over-Heat and Over-Load Protection
Machine Size:13cm x 8.5cm x 18.5cm
Package weight:2.45KG

How to do leakage test?
1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle.
9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.
10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.
11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

ANCEL S3000 Main Features:


Pressure Gauge The Automotive EVAP Smoke Machine equipped with a liquid filled pressure gauge. By observing the change of pressure gauge, the leakge situation is clear at a glance.	Adjustable Air Flow Output Flow: <6 L/min Air flow meter with adjustable button, easy to control the smoke effect.	Fast Smoke Output This machine built-in air compressor, with superior wick and heating element. It can produce smoke instantly by heating up USP mineral oil or baby oil. 4ft Smoke Outlet Pipe can help reach and connect perfectly.

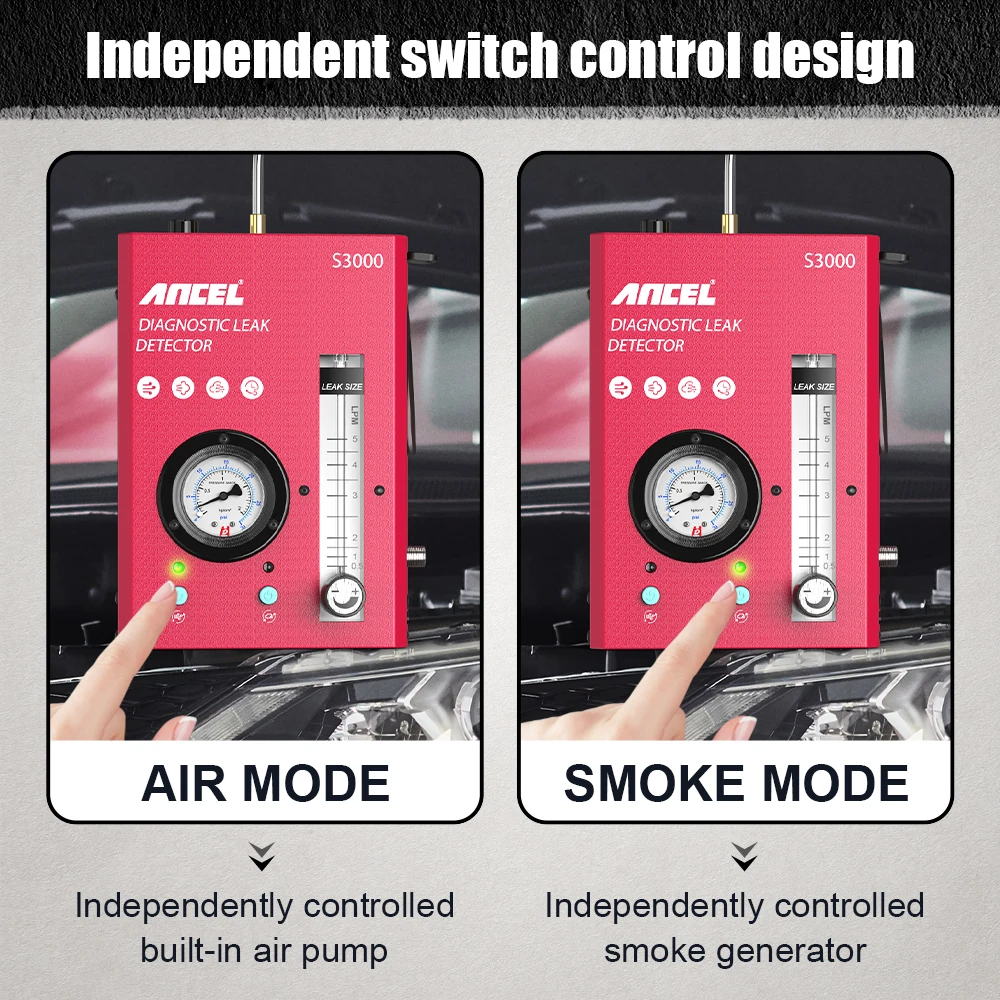

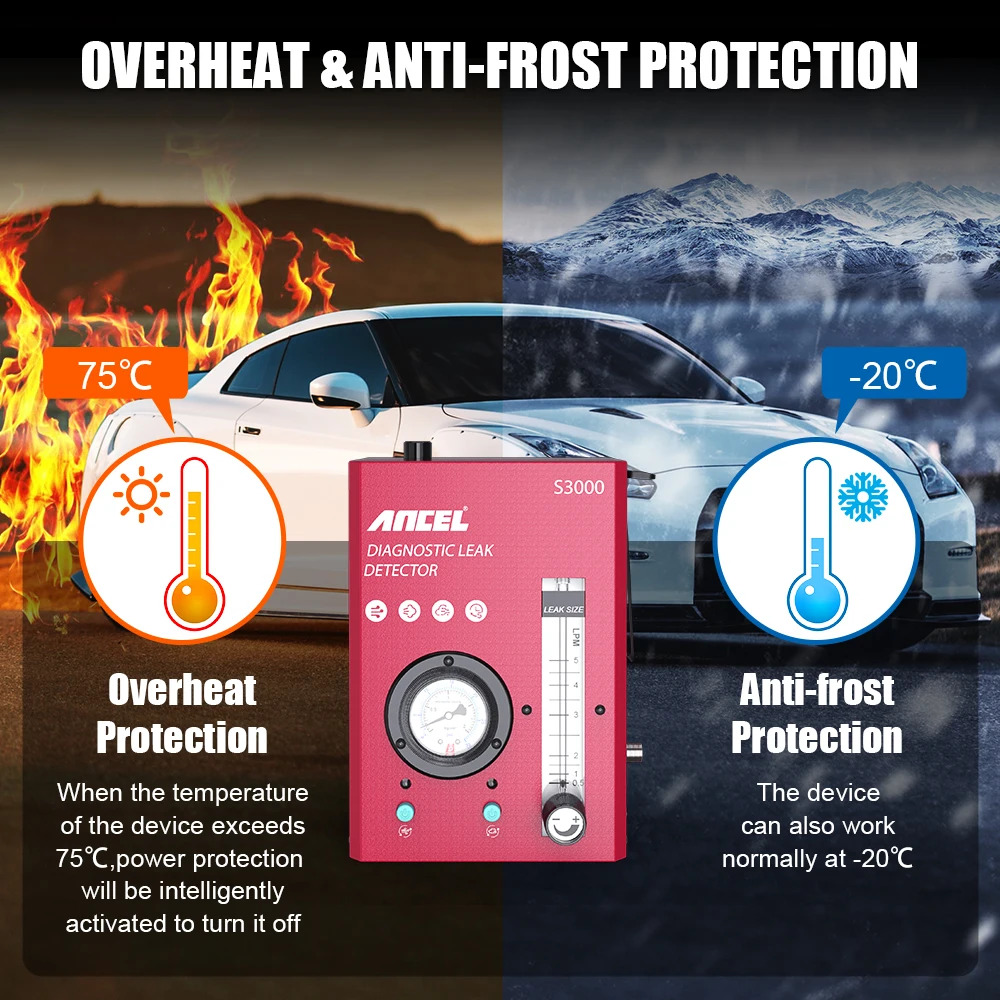

Overheat & Anti-frost Protection This smoke detector is equipped with the latest intelligent protection device. When the temperature of the device exceeds 75 degrees Celsius, the power protection device will be intelligently activated to turn it off, to ensure the safety of the operator and the device. The device is also suitable for low temperature operation.	Independent switch control design Air mode: Independent controlled built-air pump. Smoke mode: Independent controlled smoke generator.	Wide Range of Applications Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault.

Leak Status Indication
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

Leak Status Indication

ANCEL S3000 Packing List
1*Power Cord: To offffer connection from the unit to the automobile battery, in order to drive the unit.
1*Funnel: Assistance method for smoke oil refifill, to prevent pour oil to the unit surface.
1*Hook up: To hang the somke machine in the car
1*User Manual: Detailed descriptions about how to use the smoke machine automotive.
1*Intake Bladder: To fifit the intake and exhaust, seal the system and introduce smoke into the system. Especially while the inlet position is not rounded-shape.
1*Adapter Cone: To fifit the intake and exhaust, seal the system and introduce smoke into the system. It may fall out at high pressure and need a second hand to push and hold at operation.
1*Replacement Rubber: The rubber on the Intake Bladder may be easily broken, if not operate it properly with caution.The rubber could be replaced with new one without replace the whole Intake Bladder.
1*Smoke Delivery Hose: For introduction of smoke from the unit to Adapter Cone / Universal Intake Bladder or to the vacuum pipe directly.
