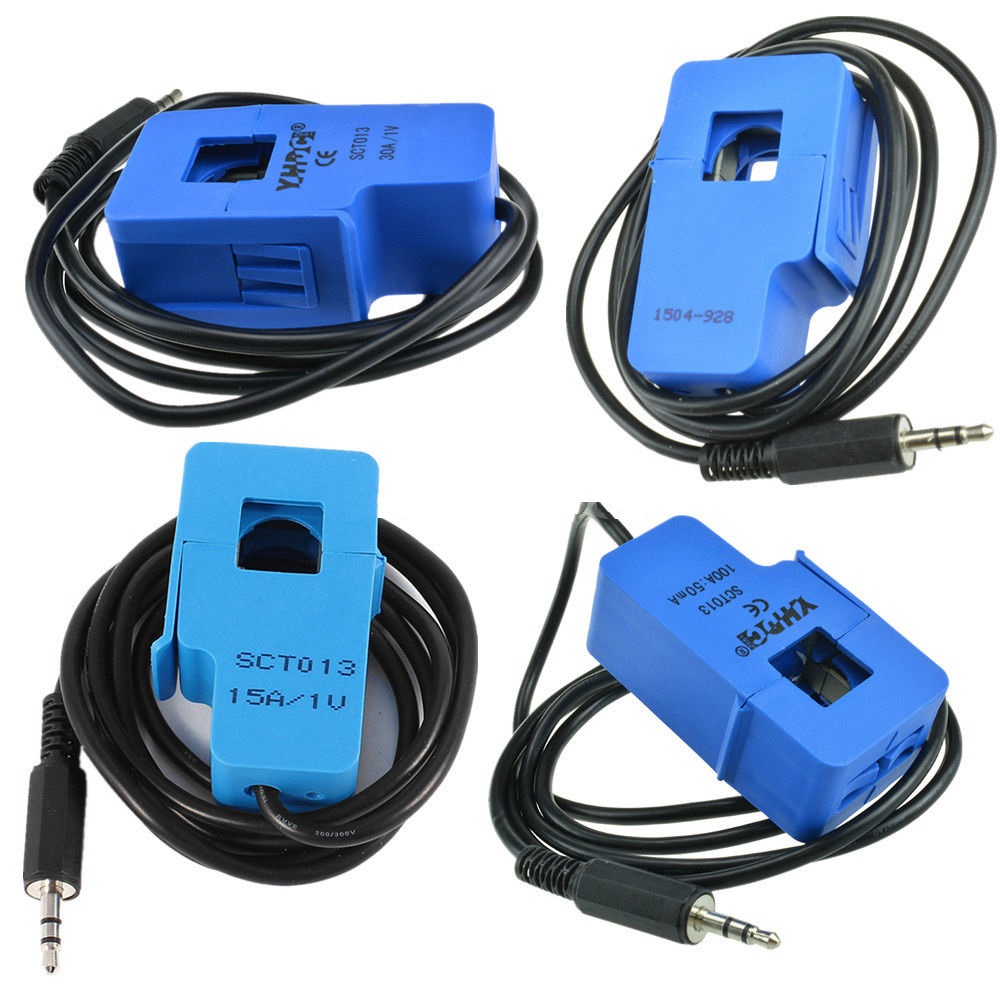

SCT-013-030/015 Non-invasive AC Current Sensor Split Core Current Transformer
Description:
Model Description

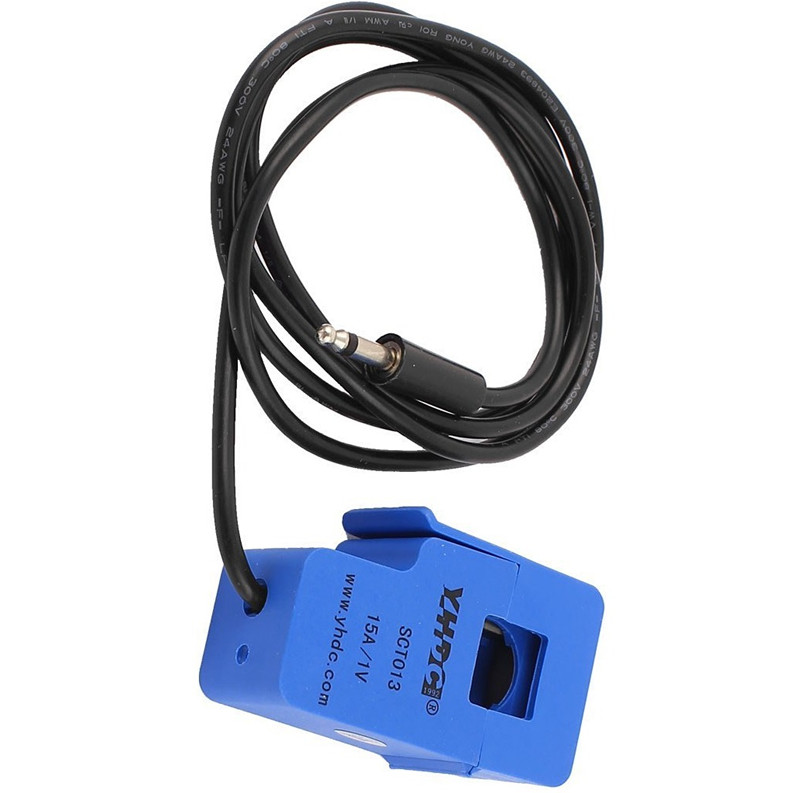

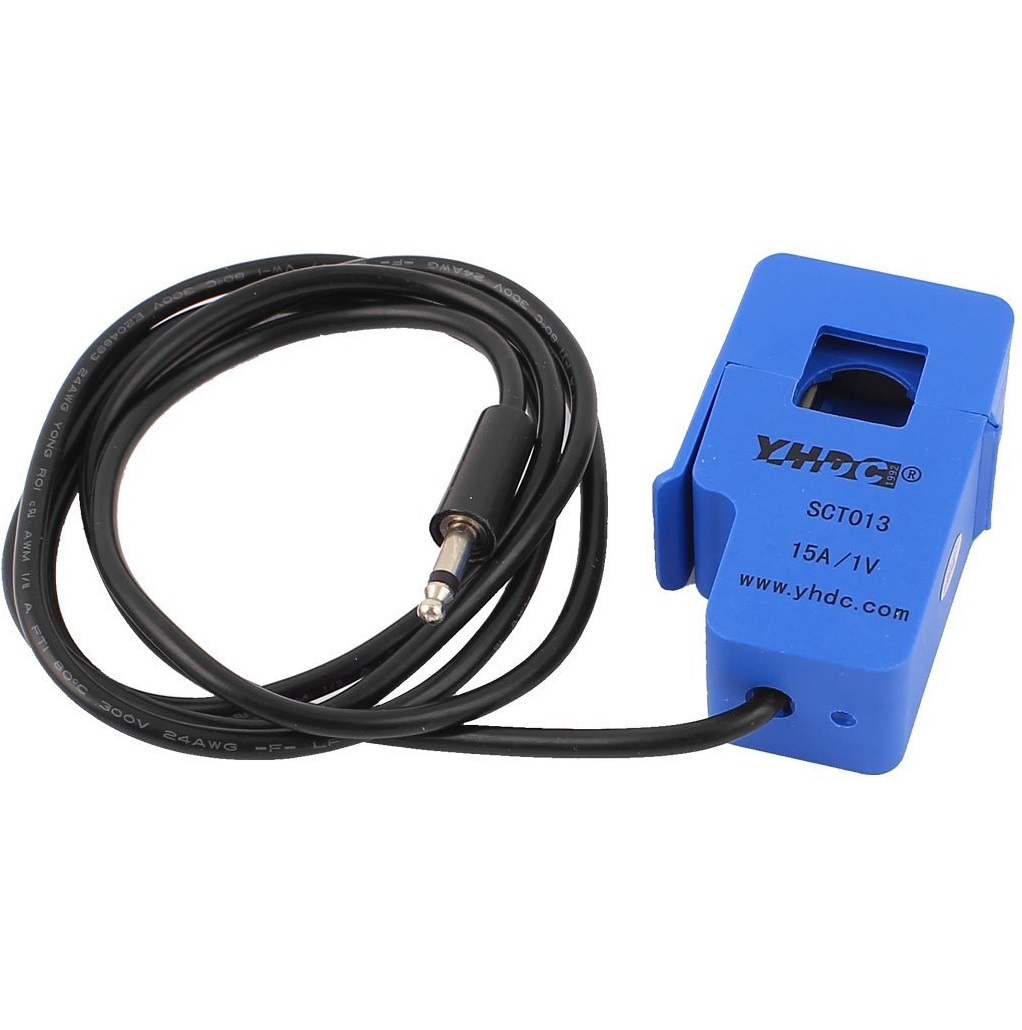

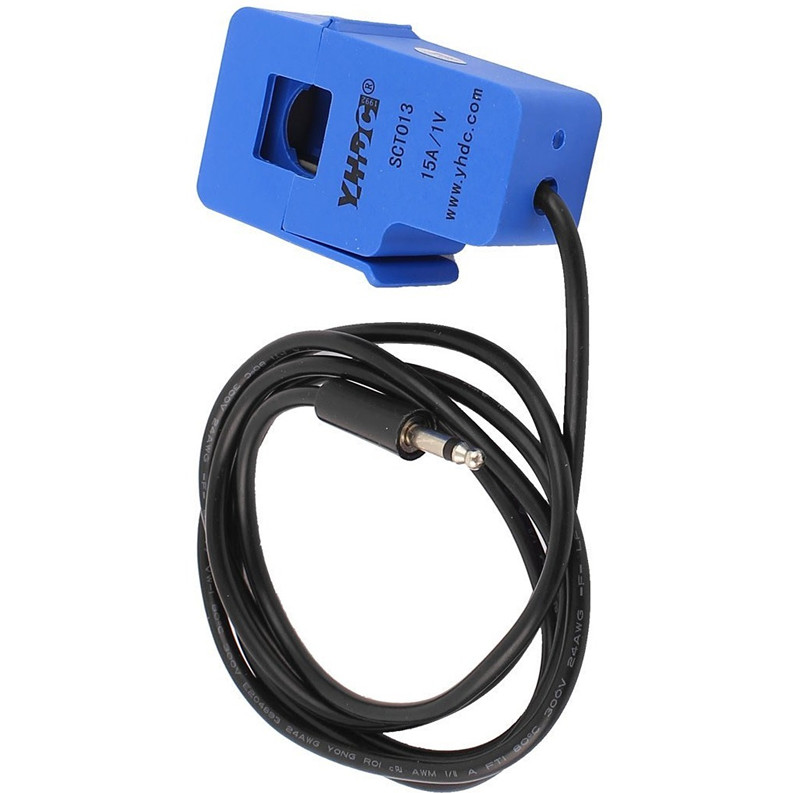

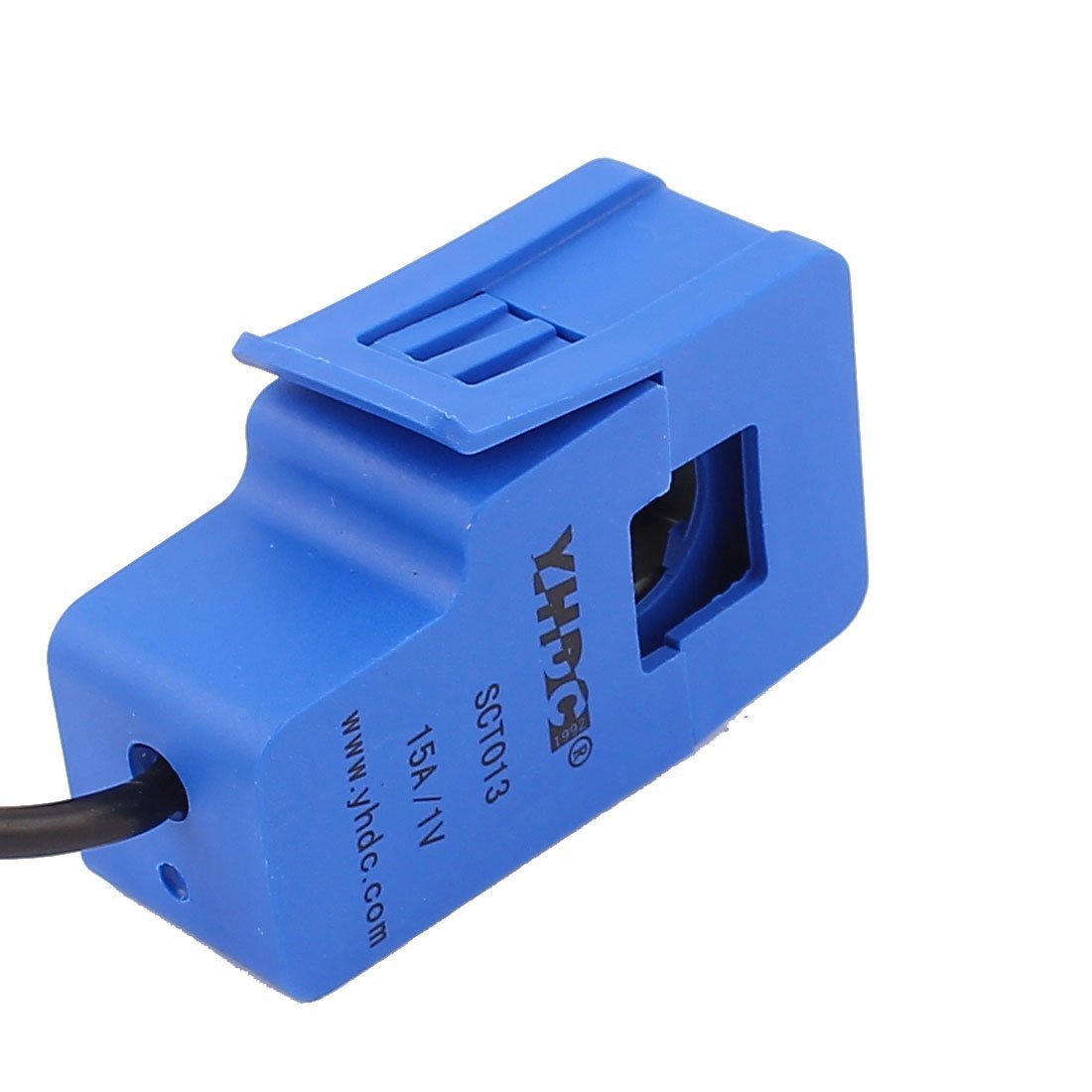

SCT-013-5/15A Non-invasive current transformer, use this sensor clip to build your
own Personal Energy Monitor .
Model: SCT-013-015
Reference project: OpenEnergyMonitor
Other reference project: How I Monitor Power
Core Material: Ferrit
External Material: Plastic
Input Current:0A-15A
Output Current:0-1V
Opening Size:13 x 13mm
Output Plug:3.5mm
Dielectric  Strength:6000V AC/1min
Working Temperature:-25-70°C
Cable Length:1.0m
Anti-flaming rate:UL94-V0
Mechanical strength:>500(20°C)

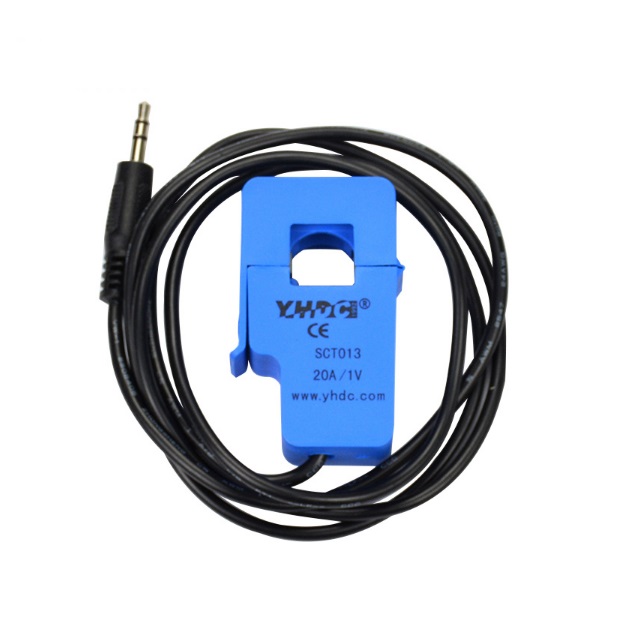

SCT-013-20/20A Non-invasive current transformer, use this sensor clip to build your
own Personal Energy Monitor .
Model: SCT-013-020
Reference project: OpenEnergyMonitor
Other reference project: How I Monitor Power
Core Material: Ferrit
External Material: Plastic
Input Current:0A-20A
Output Current:0-1V
Opening Size:13 x 13mm
Output Plug:3.5mm
Dielectric  Strength:6000V AC/1min
Working Temperature:-25-70°C
Cable Length:1.0m
Anti-flaming rate:UL94-V0
Mechanical strength:>500(20°C)
SCT-013-030/30A Model: SCT-013-030
Reference project: OpenEnergyMonitor
Other reference project: How I Monitor Power
Core Material: Ferrit
External Material: Plastic
Input Current:0A-30A
Opening Size:13 x 13mm
Output Plug:3.5mm
Dielectric Strength:6000V AC/1min
Working Temperature:-25-70°C
Cable Length:1.5m
Anti-flaming rate:UL94-V0
Mechanical strength:>500(20°C)
SCT-013-050/50A Item Name     Spilt-core Current Transformer
Model Number     SCT-013-050
Rated Input Current     50A
Rated Input Voltage     1V
Output Plug     3.5mm
Working Temperature     -25-70°C
Dielectric Strength     6000V AC/1min
Cable Length     1M/3.3Ft
Opening Size     13 x 13mm/0.5" x 0.5"(L*W)
Total Size     5.7 x 3.2 x 2.2cm/2.2" x 1.2" x 0.87"(L * W * H)
Case Material     Plastic
Core Material     Ferrite
Color     Black,Blue
Weight     71g
Package Content     1 x Spilt-core Current Transformer
SCT-013-000/100A Non-invasive current transformer
Suitable for lighting equipment, AC motors, air compressors,
monitoring, current measurement, and protection
Meet UL94-V0 flame retardant properties
Two form of output current, voltage (voltage output built-in
the sampling resistor)
Non-linearity ?%(10%-120% rated input current)
Model: SCT-013-000
Reference project: Open Energy Monitor
Core Material: Ferrite
Dielectric Strength:6000V AC/1min
Input Current:0A-100A
Anti-flaming rate:UL94-V0
Mechanical strength: opening and closing times, no less than
1000 times (20 ?)
Opening Size: Approx. 0.51*0.51inch / 13x13mm
Dielectric Strength:6000V AC/1min
Working Temperature:-25-70ò¾


Package included：

1PCS X 15A SCT-013 Non-invasive AC current sensor Split Core Current Transformer
