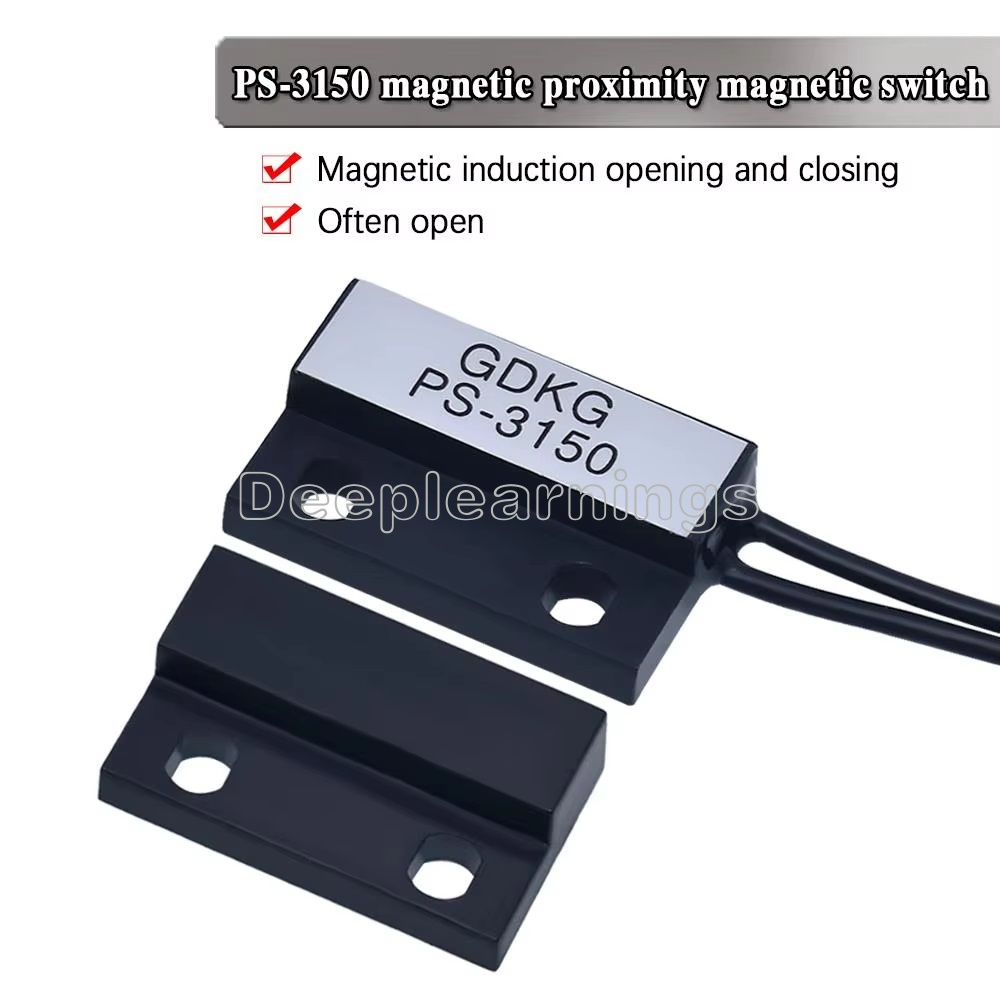

Normally Open Proximity Magnetic Sensor / Reed Switch Aleph PS-3150 Perfect

100% brand new and high quality
Model: C PS-3150
Parameter Test Conditions Units
Features:
movement speed quickly
suitable for high operating frequency products
the contact resistance with a high anti-corrosion and wear resistance
long life, stable switching operation can be obtained
the control portion of the seal in the housing, is not affected by the external environment
Use: All controls can be used to detect magnetic switch: used in liquid level sensors, security alarm systems, proximity sensor, instrumentation, automotive electronics, magnetic switches, treadmills, odometer, and other control circuits
    　
Operating Characteristics:
Scope of work AT10-30
Release range ATMin 5
Working time (maximum) (energized) ms1.0
Bounce time (maximum) (energized) ms1.5
Release time (maximum) (energized) ms1.0
Resonant frequency (typical) Hz4000
    　
Electrical Characteristics:
Switching power (maximum) W10
DC switching voltage (maximum) V220
AC switching voltage, RMS (maximum) V220
DC switching current (maximum) mA500
AC switching current, RMS (maximum) mA500
Breakdown Voltage (Minimum) V250
Contact Resistance (initial max) m W200
Contact Resistance (initial typ) m W100
Contact Capacitance (maximum) without test coil pF0.7
Insulation Resistance (Min) RH ￡ 45% M W103
Quantity:1pc

Package includes:

1 x Aleph PS-3150 Magnetic Sensor Switch
