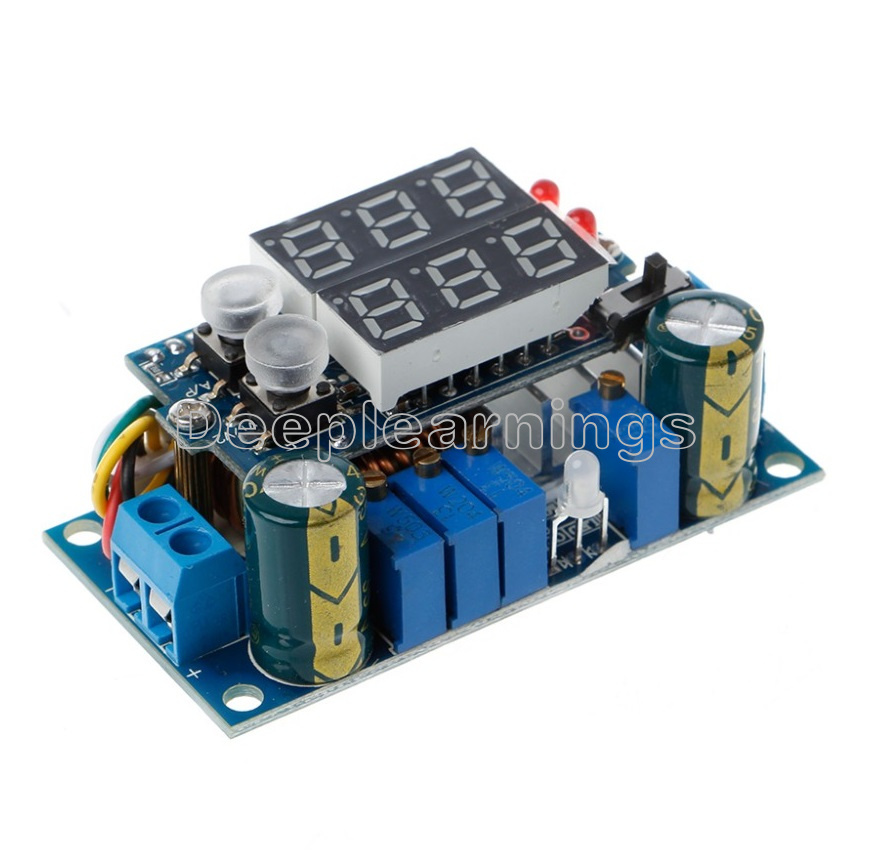

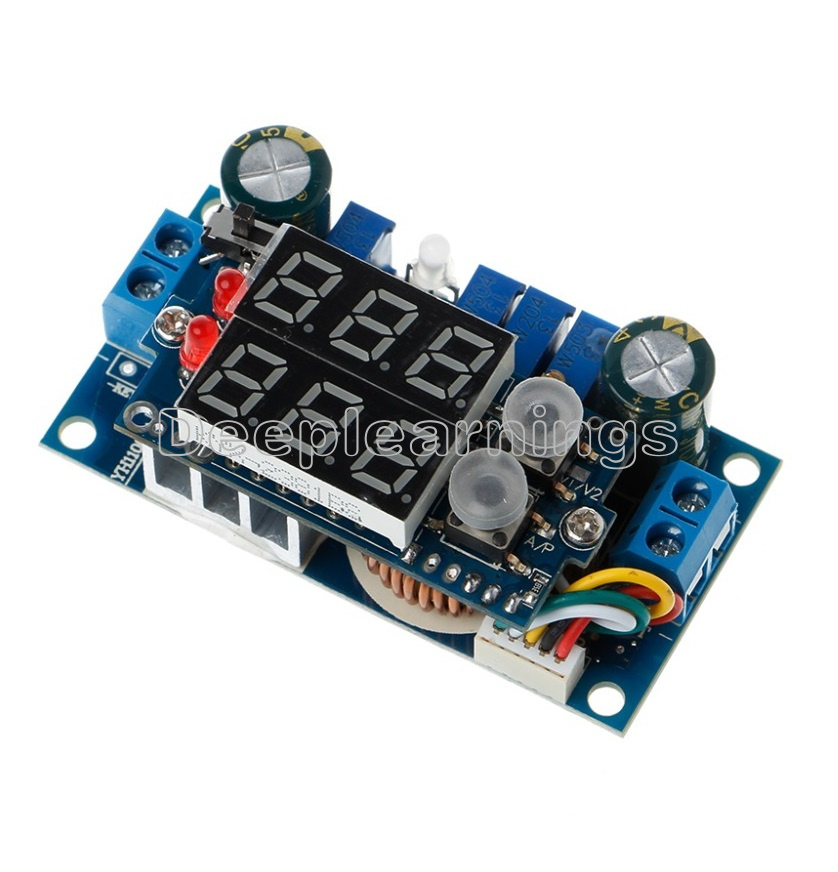

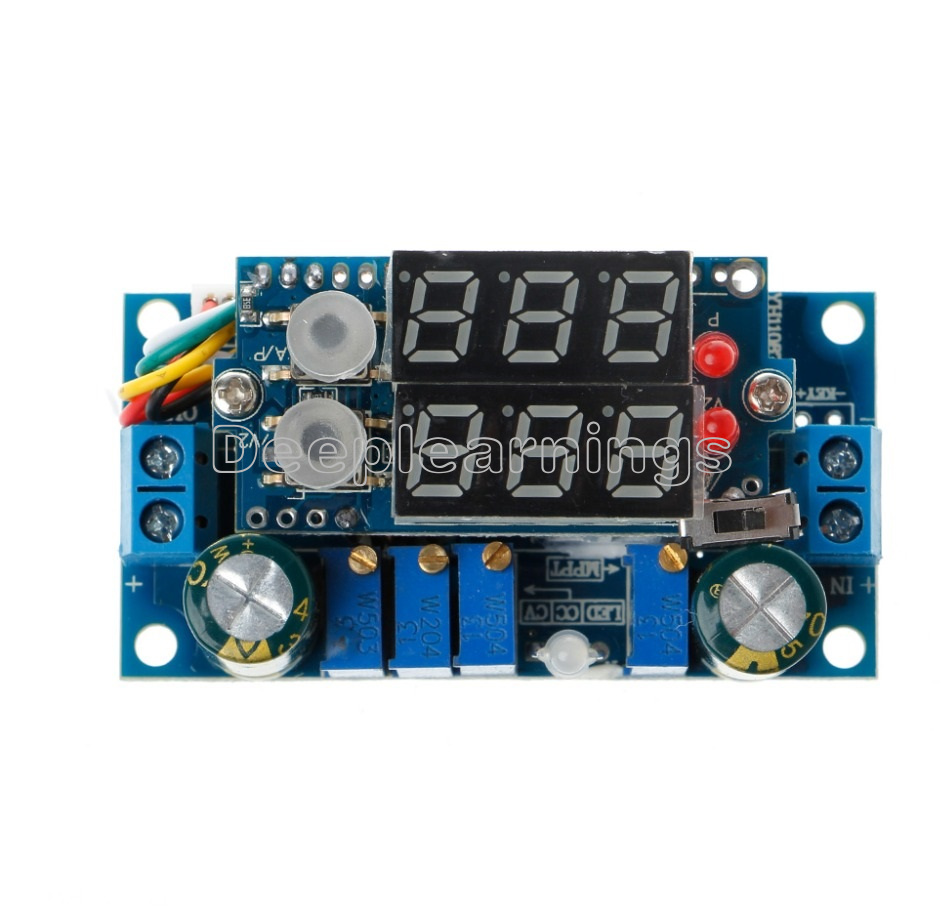

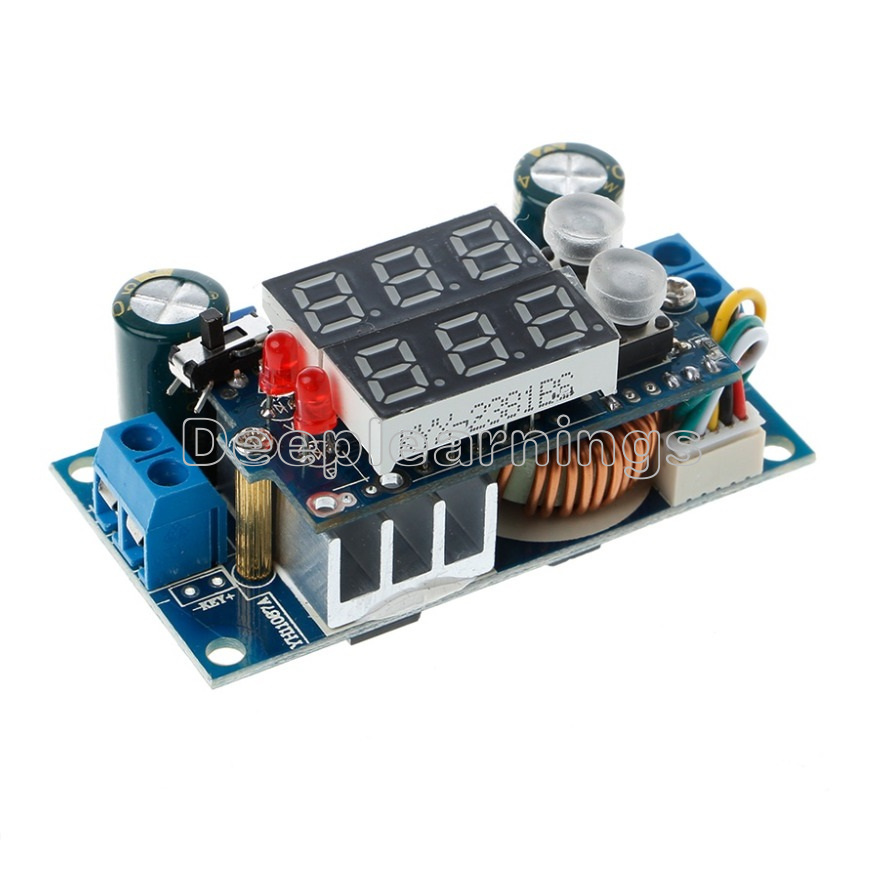

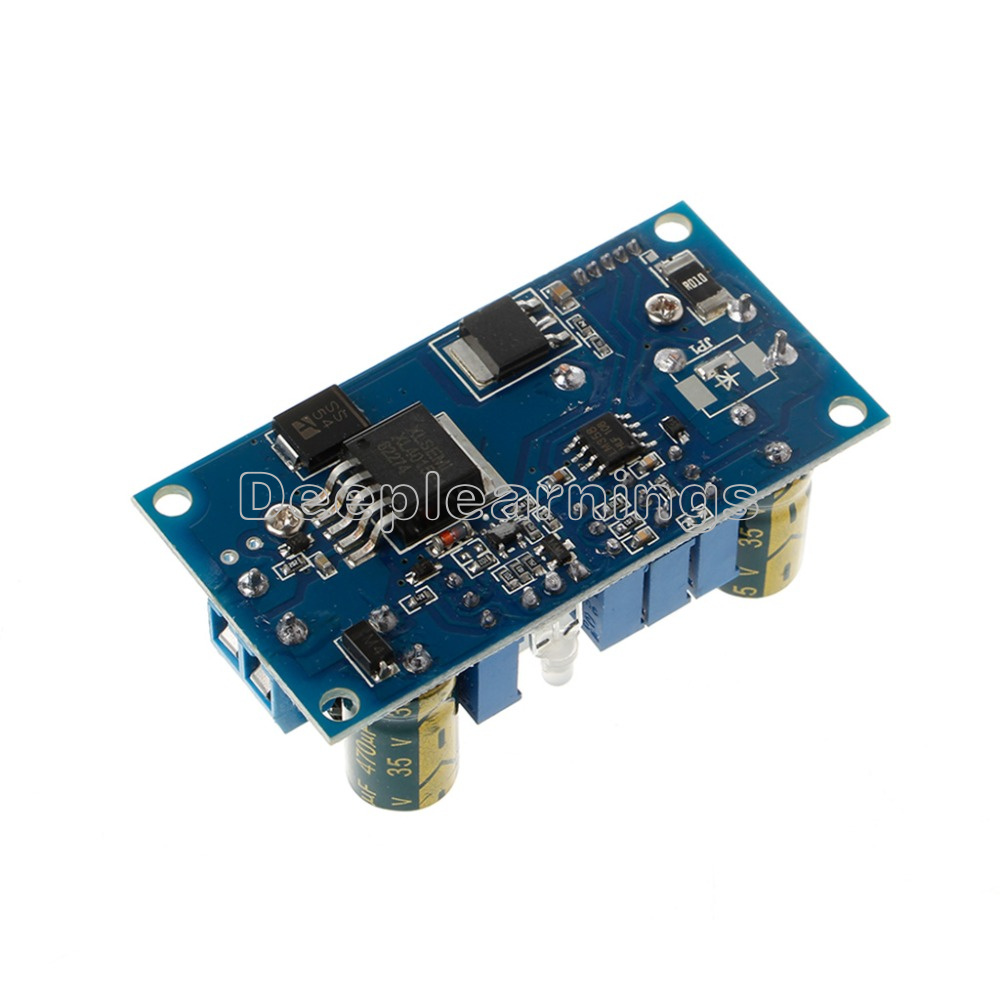

MPPT Solar Panel Controller 5A DC-DC Step-down CC/CV Charging Module LED Display

Product description:

Module Name: 5A buck constant voltage constant current MPPT
Module Properties: Non-isolated buck module (BUCK)
Input voltage: 6-36V
Output voltage:
1.25-32V continuously adjustable (the default output 5V)
MPPT voltage setting range: 6-36V
Output current range: 0.05-5A (The default output current is 3A)
Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.

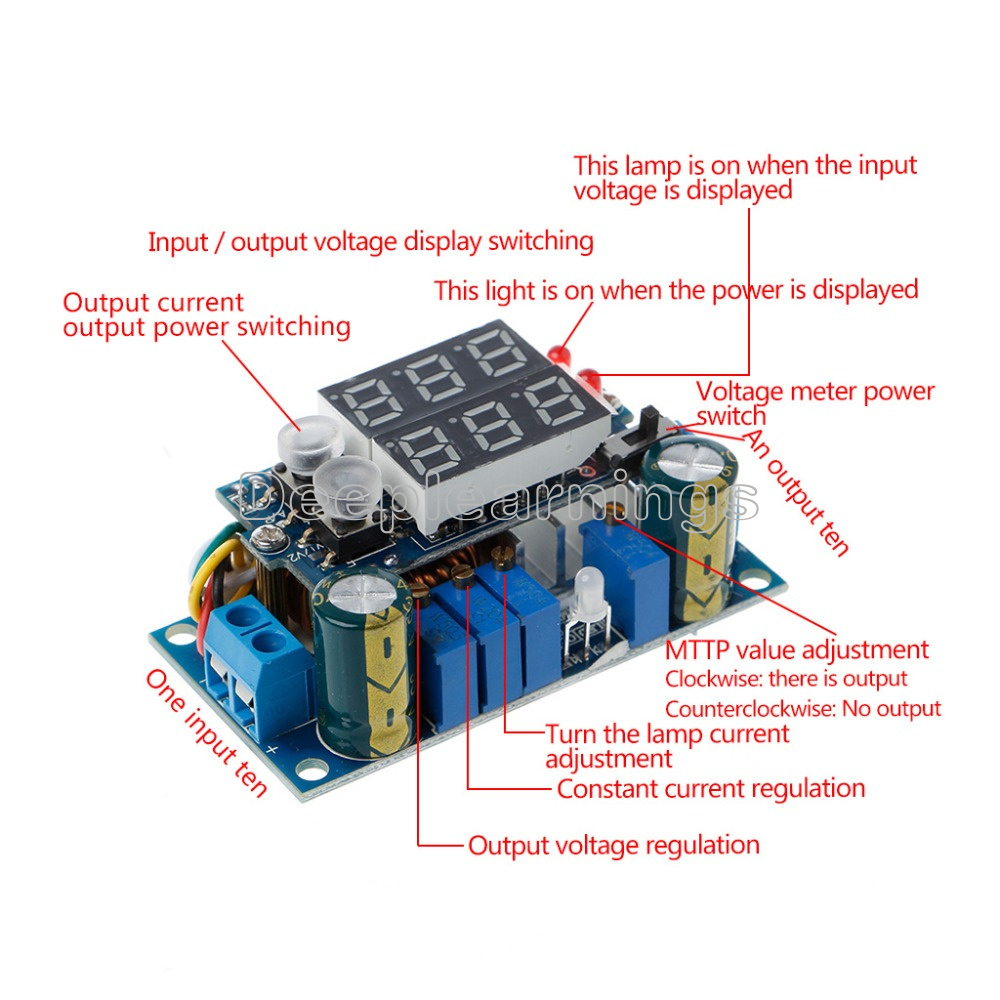

Multifunction double display: input voltage, output voltage, output current, output power
Operating temperature: -40 to + 85 degree
Operating frequency: 180KHz
Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
Short circuit protection: Yes
Over temperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please add the string into the diode)
Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
Installation: 4 pcs 3mm screws
Connection: IN is the input, OUT is output
Module dimensions:60 x 31 x 22 mm(without meter)
Note:

Detection module, please do not direct connect the output of negative electrode and the input of negative electrode
Applications:

1, DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
2, It can power supply for electronic devices.
3, For a variety of battery charge, can observe the state of charge.
4, charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
5, it can support high-power LED.
6, As a car power supply , it can for your cell phone or digital products supply.
Package Included:
1PCS NEW 5A MPPT Solar Panel Controller DC-DC Step-down CC/CV Charging Module LED Display
