Circuit Hookup Wire 16/0.2mm, 7/0.2mm, 1/0.6mm

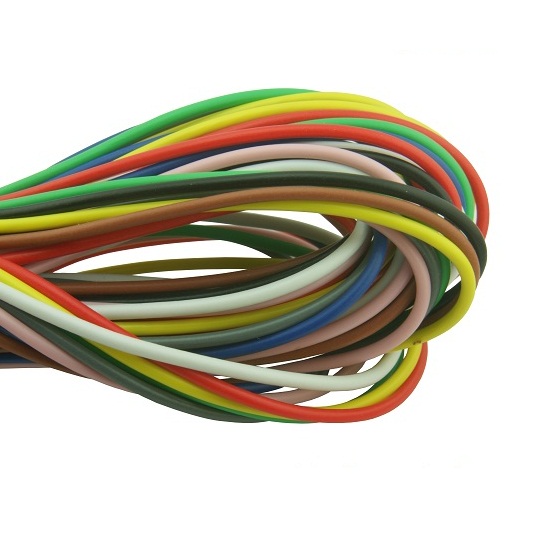

A range of single conductor hookup circuit wire consisting of wires in various colours and different strand numbers and thicknesses. All wires are high quality, BS6746 approved and covered with a PVC insulation. The multistranded wires (7/0.2mm and 16/0.2mm) are ideal for interconnection between components (for example between a switch on a chassis and a circuit board) or for power applications. the single stranded wire (1/0.6mm) is ideal for use on PCBs as track-bridging/jumper wire.

This wire is supplied in multiples of 5 metres. Multiple purchases of the same wire will be supplied in one continuous length up to 100 metres. We also offer a convenient multi-colour pack of the 16/0.2mm (1 Metre of a selection of the colours, total 9 Metres) and the 1/0.6mm (1 Metre of each of 11 colours, total 11 Metres)

Please use the pull down boxes above to select wire type and colour.

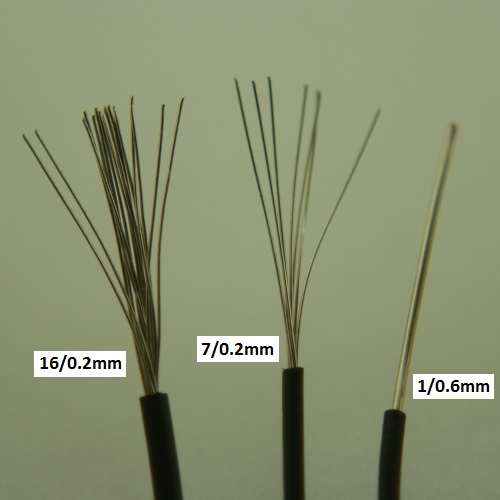

16/0.2mm7/0.2mm1/0.6mm
Number of Strands1671
Strand Diameter0.2mm0.2mm0.6mm
Outer Diameter1.55mm1.2mm1.2mm
Max Current3A1.4A1.8A
