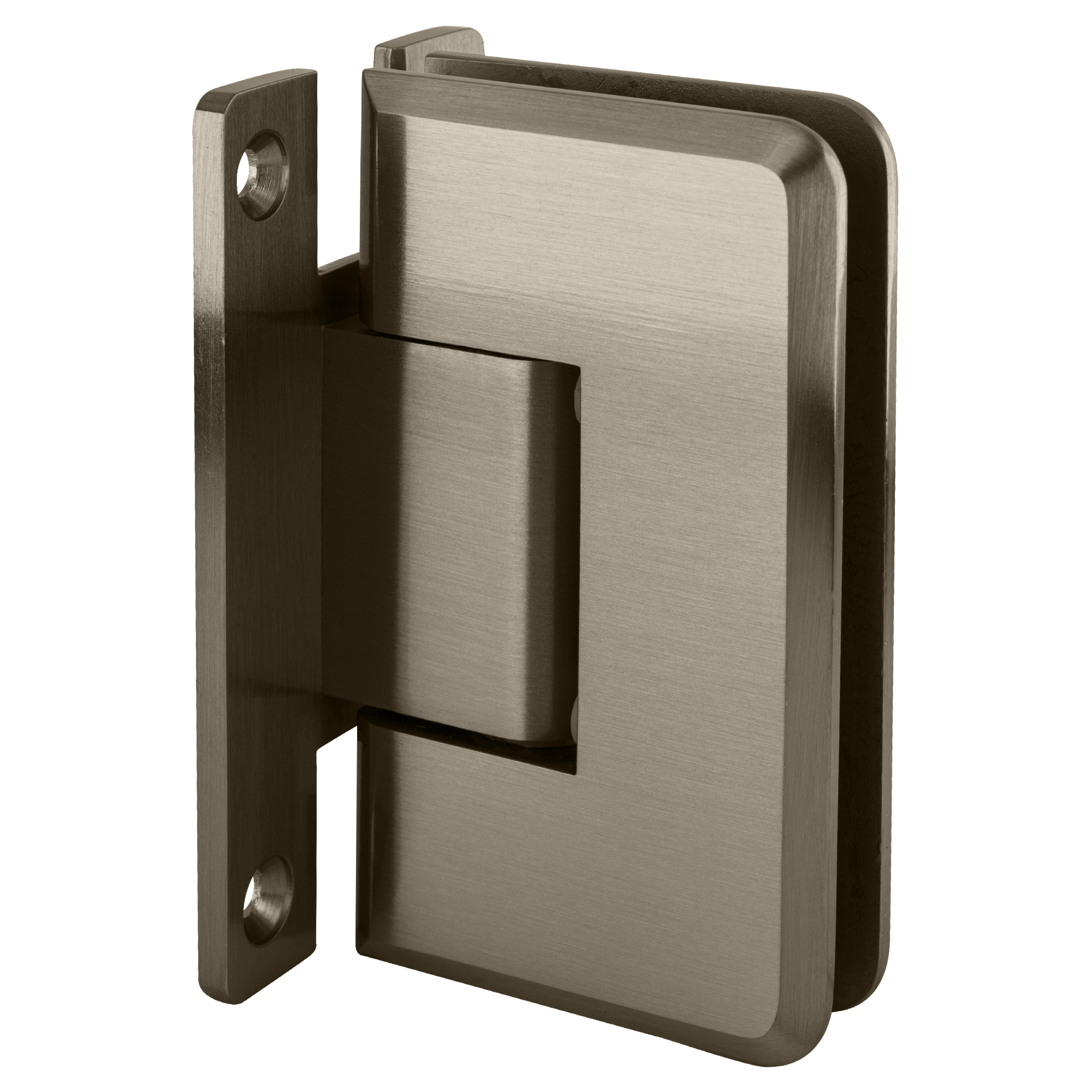

CRL C0L067BN Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge
FEATURES
- Other Finished Available Upon Special Order
- Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
- Stocked in Four Most Popular Finishes
- Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges
DESCRIPTION
The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
SPECS
| Shipping Weight | 2 lb (907g) |
| Finish | Brushed Nickel |
| Mounting Type | Wall Mount |
| Material | Brass |
| Width | 2-1/4 |
| Back Plate | 'H' |
| Glazing Thickness | 3/8 to 1/2 |
| Maximum Door Width | 36 |
| Edge Profile | Beveled |
| Adjustable | No |
| Finish/Color | Brushed Nickel |
| Series | Cologne |
| Self-Centering | Yes |
| 5 Degree Pre-Set | No |
| Maximum Door Weight - 3 Hinges (Pounds) | 140 |
| Maximum Door Weight - 2 Hinges (Pounds) | 110 |
| Height | 3-15/16 |
| Positive Close | Yes |
| Mounting Style | Wall mount |
| Height (Inches) | 3-15/16 |
| Max Dr Weight - 3 Hinges (Lbs) | 140 |
| Max Dr Weight - 2 Hinges (Lbs) | 110 |
| Width (Inches) | 2-1/4 |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Clamping Screw Torque | 60 lbf.in (677.9 cN.m) |
| Opening Style | Swing(side) |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Design Style | Beveled |
