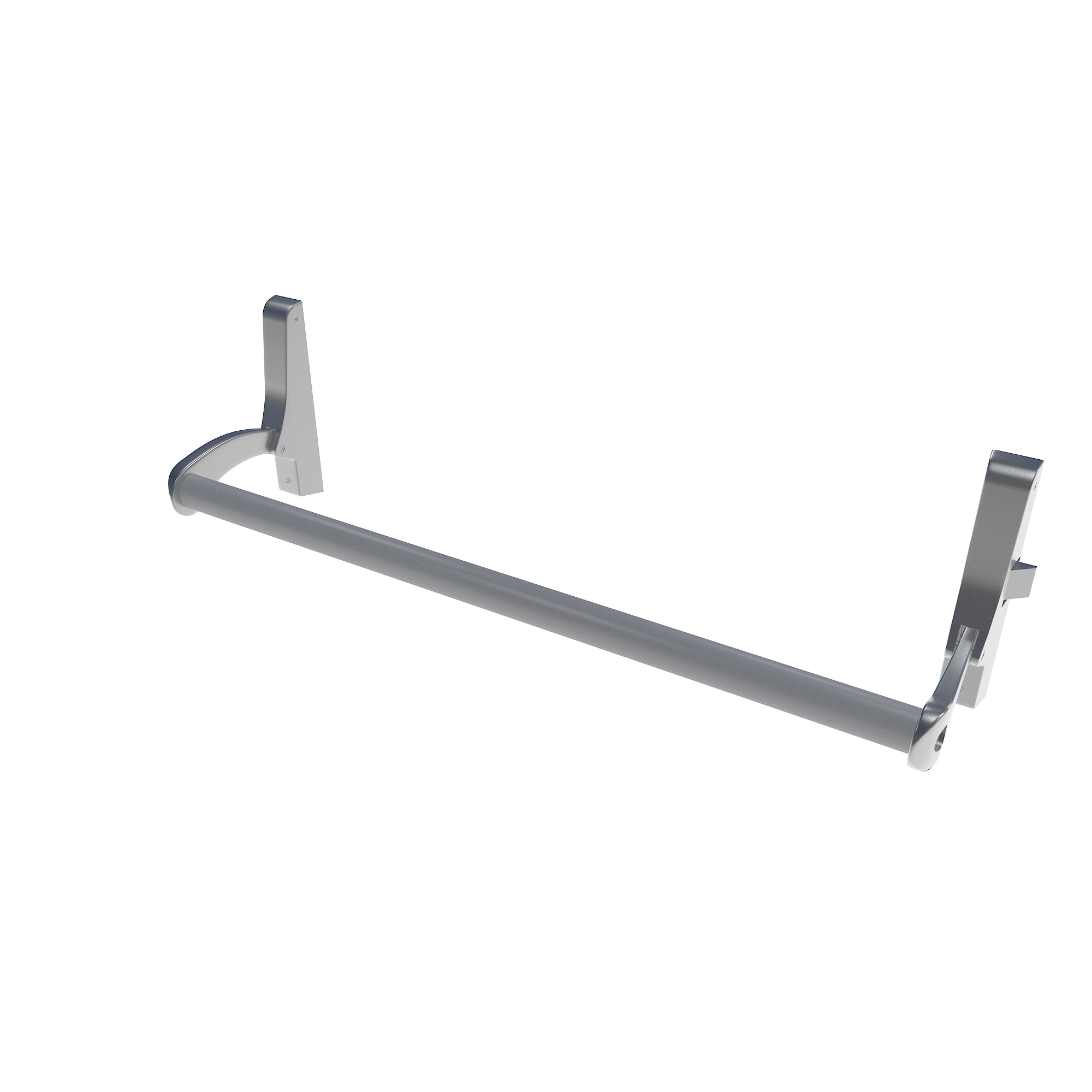

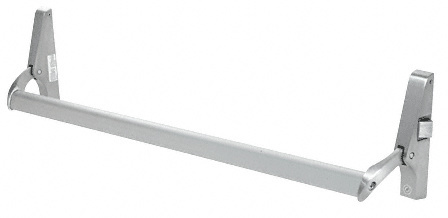

CRL DL1190RHRA Satin Aluminum Cross Bar Panic Exit Device - Right Hand Reverse Bevel Rim
FEATURES
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- Available as Concealed Vertical Rod and Rim Exit Devices
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
DESCRIPTION
CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This Rim Exit Device is handed. Handing is determined from the OUTSIDE or LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a RHRB (Right Hand Reverse Bevel).
.
SPECS
| Finish | Satin Aluminum |
| Type | Right Hand-Reverse Bevel Rim |
| Color | Aluminum |
| Material | Aluminum |
| Handing | Non Handed |
| Model | DL1190 |
| Door Thickness | 1-3/4 |
| Door Width | 48 |
| UL Listed | Yes |
| Includes | Mounting Hardware |
| Certification | ANSI A156.3 Grade 1 |
| Finish/Color | Satin Aluminum |
| Panic Bar Width Net | 48 |
| Recommended Door Type | Aluminum,Wood,Hollow Metal |
| Minimum Stile Width (Inches) | 1-3/4 |
| Similar | 311095RC4628 |
| Entry Trim (Optional) | DL51LKAA,DL51LKADA |
| Panic Head Base Width | 1-1/4 |
| Panic Bar Base Height (Inches) | 2 |
| Panic Type | Surface Vertical Rods |
| Door Width Range (Inches) | 30-36 |
| Replacement Parts | DL911SCKDA,DL911SCKAA,30821J628 |
| Panic Head Height (Inches) | 7-5/16 |
| Field Sizeable | Yes |
| Panic Bar Projection (Inches) | 4-5/8 |
| Panic Dogging | Screw Driver |
| Minimum Stile Width | 1-3/4 |
| Door Width Range | 30-36 |
| Panic Bar Base Height | 2 |
| Panic Head Height | 7-5/16 |
| Panic Bar Projection | 4-5/8 |
| Load Capacity | N/A |

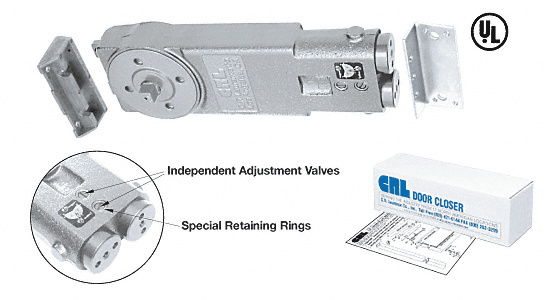

You May Also Like
