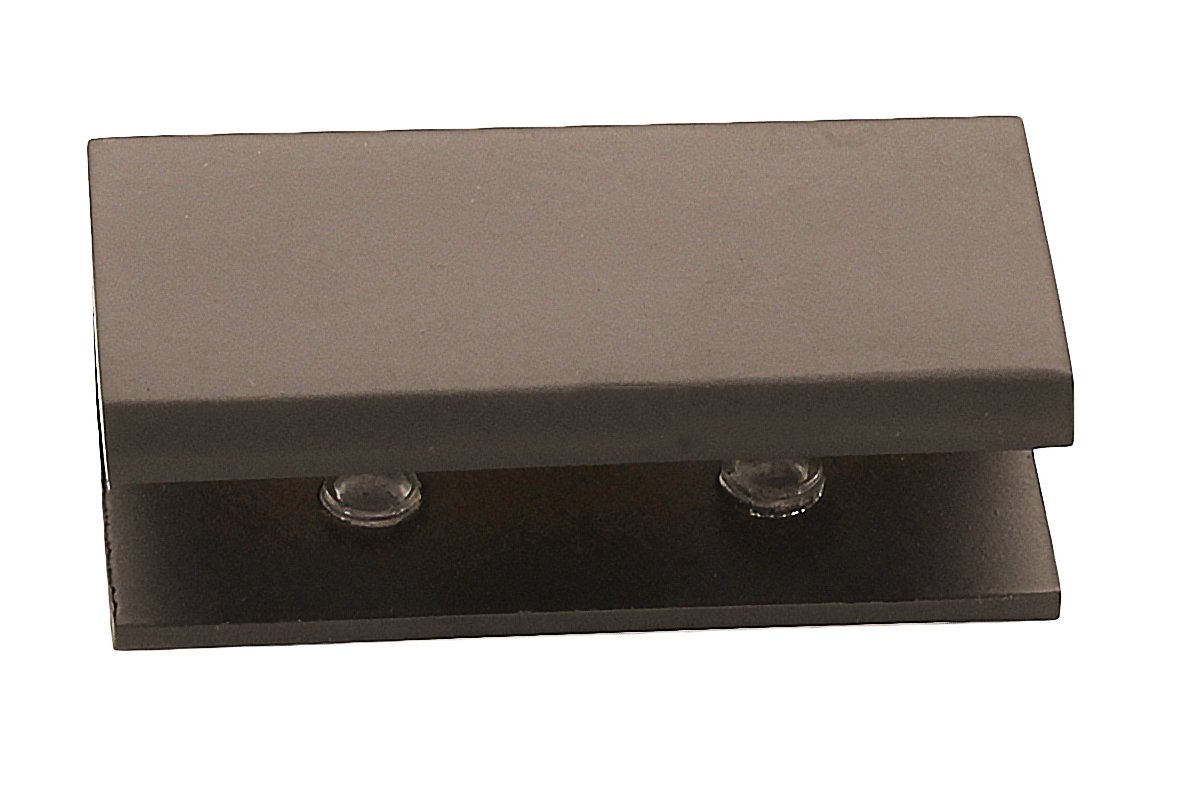

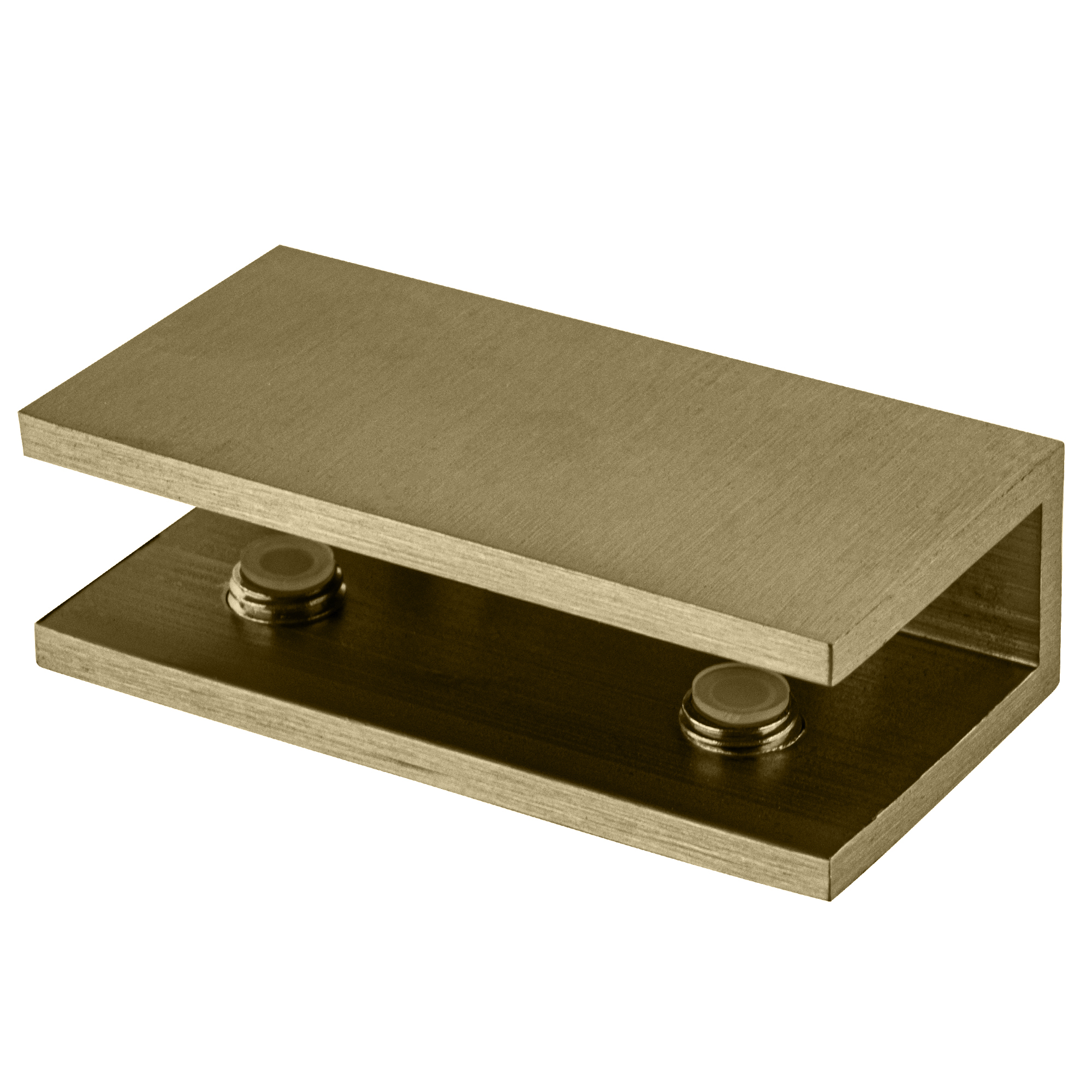

CRL NDC4BBRZ Brushed Bronze No-Drill Fixed Panel Glass Clamp
FEATURES
- Made of Solid Brass
- No Glass Fabrication Required
- Includes Clear Gaskets and Mounting Screws
- No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
- Use Monolithic Tempered Glass
DESCRIPTION
Made of solid brass, and available in numerous stock finishes, these CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required
Product Warning:
Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
SPECS
| Height | 3/4 |
| Glass Thickness Range | 3/8" or 5/16" (10 or 8 mm) |
| Width | 1-3/16 |
| Size | 2-3/8" (60 mm) Wide x 1-1/8" (28 mm) High |
| O.D. Height | 1-1/8 in (28 mm) |
| O.D. Depth | 3/4 in (19 mm) |
| Finish | Brushed Bronze |
| Mounting Type | Wall Mount |
| Material | Brass |
| Length | 2-3/8 |
| Glazing Thickness | 5/16 To 3/8 |
| Finish/Color | Brushed Bronze |
| Mounting Style | Wall mount |
