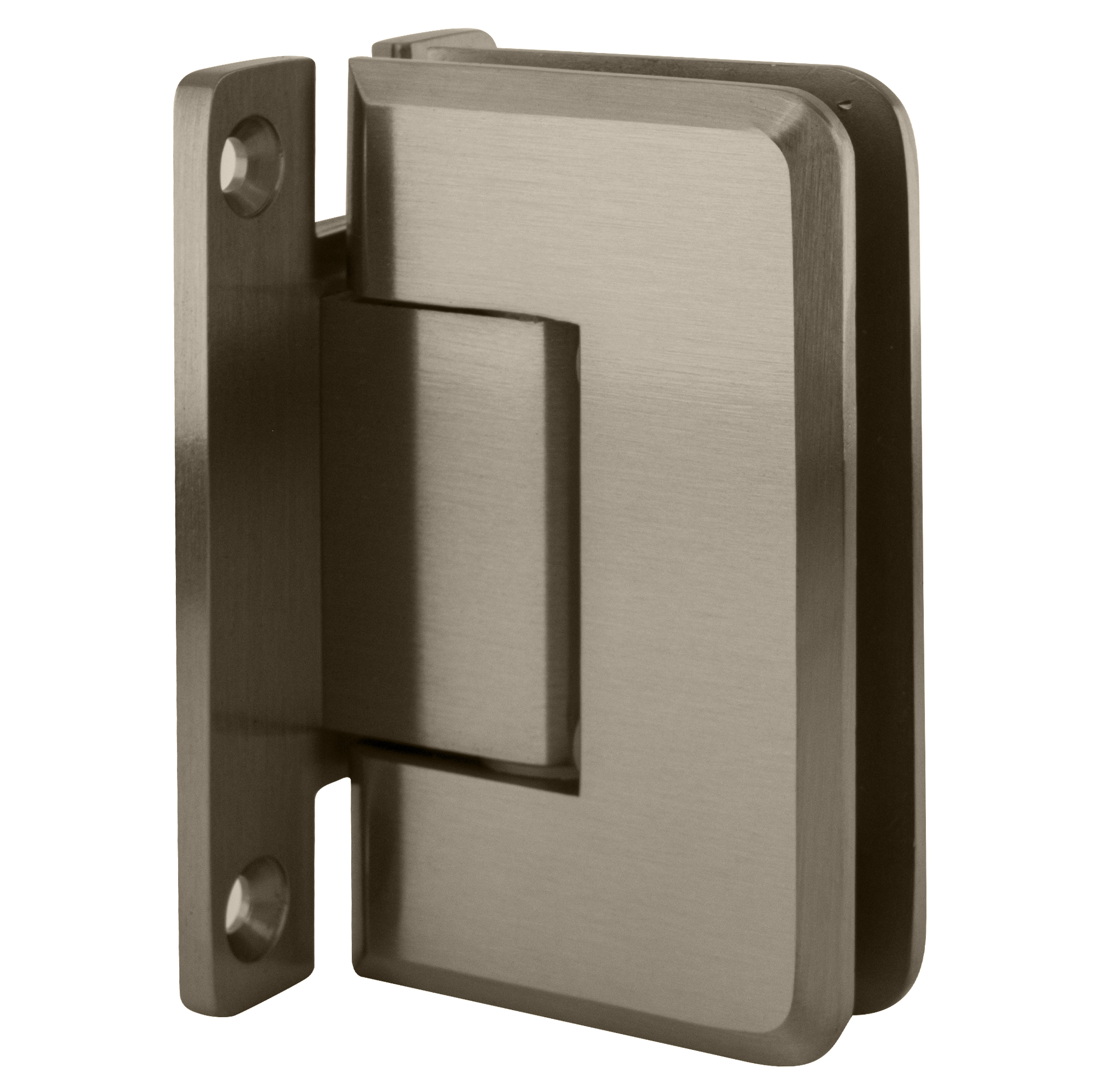

CRL P1N037BN Brushed Nickel Pinnacle 037 Series Wall Mount H Back Plate Hinge
FEATURES
- Brushed nickel Pinnacle 037 series wall mount hinge with sleek beveled edges and radius corners
- Self-centering design with reversible 5-degree pivot pin for precise door alignment
- Supports monolithic tempered glass thickness from 5/16" to 1/2" (8 mm to 12 mm)
- Solid brass construction with stainless steel pins, plungers, and springs for durability
- Maximum door width: 28" (711 mm) with 2 hinges, 32" (813 mm) with 3 hinges
- Maximum door weight: 80 lbs. (36 kg) with 2 hinges, 120 lbs. (54 kg) with 3 hinges
- Wall mount full back plate standard model, factory set for standard closing position
DESCRIPTION
Upgrade your shower with the CRL Pinnacle 037 Series Wall Mount 'H' Back Plate Hinge in elegant brushed nickel. Designed for 5/16" to 1/2" (8 to 12 mm) tempered safety glass, this solid brass hinge features radius corners and beveled edges for a sleek, modern look. Its self-centering mechanism activates within 15° of closure, and the reversible 5° pivot pin allows precise door alignment, with optional custom pivot pins for off-angle installations. Supports doors up to 28" wide with two hinges or 32" wide with three hinges, holding up to 120 lbs. Durable stainless steel pins, springs, and plunger tips ensure reliable, long-lasting performance. Ideal for residential or hotel showers, this Pinnacle hinge comes with all necessary gaskets, screws, and glass fabrication dimensions.
SPECS
| Shipping Weight | 2 lb (907g) |
| Height | 3-1/2 |
| Width | 2-3/16 |
| Finish | Brushed Nickel |
| Back Plate | 'H' |
| Glazing Thickness | 5/16 To 1/2 |
| Edge Profile | Beveled |
| Adjustable | No |
| Finish/Color | Brushed Nickel |
| Series | Pinnacle |
| Self-Centering | Yes |
| 5 Degree Pre-Set | No |
| Maximum Door Width - 2 Hinges (Inches) | 28 |
| Maximum Door Width - 3 Hinges (Inches) | 32 |
| Maximum Door Weight - 3 Hinges (Pounds) | 120 |
| Maximum Door Weight - 2 Hinges (Pounds) | 80 |
| Mounting Type | Wall Mount |
| Material | Brass |
| Mounting Style | Wall mount |
| Height (Inches) | 3-1/2 |
| Max Dr Weight - 3 Hinges (Lbs) | 120 |
| Max Dr Weight - 2 Hinges (Lbs) | 80 |
| Width (Inches) | 2-3/16 |
| Max Dr Width - 3 Hinges (Inch) | 32 |
| Max Dr Width - 2 Hinges (Inch) | 28 |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width - 2 Hinges | 28 |
| Maximum Door Width - 3 Hinges | 32 |
