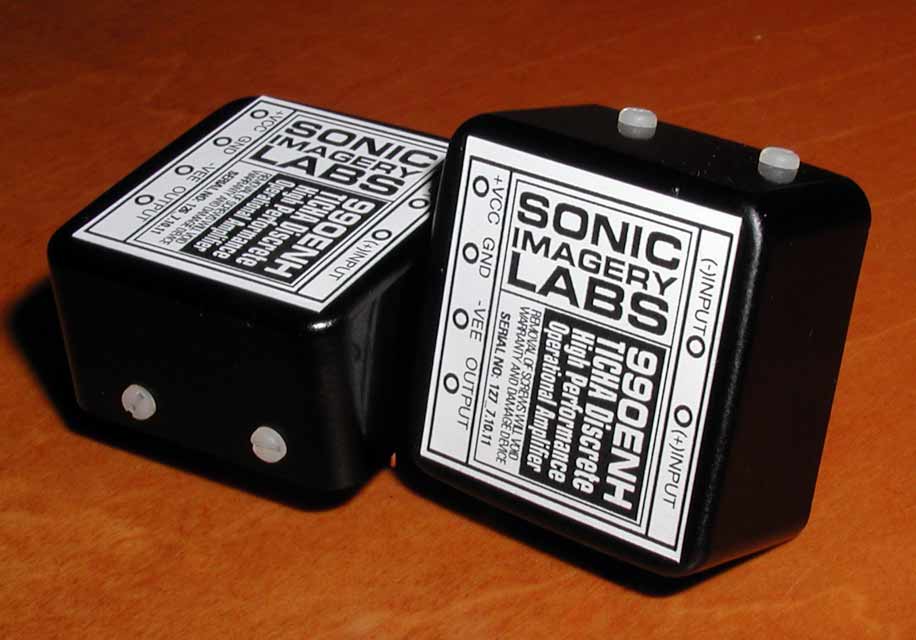

| DESCRIPTION: Model 990Enh-Ticha High Performance Discrete Operational Amplifier No other Discrete Op-Amp on the market comes close to our fully tested specifications and audio performance. This is not your dad's or granddad's clone of the 990 from the 1970's but a purpose built redesign for performance and resolution needed in 24/32bit world. This auction is for Qty(1) fully tested and assembled discrete opamp, ready to drop in and go! This unit is available with 2 pin lengths, Standard 0.30" long or Retro/Vintage 0.50" long, Let us know at time of purchase which length you need. See Application Note AN-18 for more details. Model 990Enh Datasheet and Specifications PDF Model 990Enh-Ticha and 995FET-Ticha Mechanical Options Application Note AN-18 Height, Pin Length OPTION's and socketing dimensions for both standard product and retro-clone or vintage upgrades. General Description: Sonic Imagery Labs 990Enh-Ticha Discrete Operational Amplifier The Model 990Enh-Ticha is a high performance discrete operational amplifier designed for professional audio applications and areas where ultra-low noise, low distortion and highly linear uncolored operation is required. It was designed as a high performance upgrade replacement for the Jensen JE990, John Hardy Co. 990A-990C+, FiveFish Studios DOA series, Seventh Circle Audio SC99, and Avedis Audio 1122 op-amp gain block. The pinouts conform to the 990/2520 package, allowing direct replacement. See below for additional discrete opamps which can be upgraded.  The all-discrete SMT design is similar to the JE990 basic topology but has been completely redesigned to use an ultra-precision differential super-matched transistor pair specifically designed to meet the requirements of ultra-low noise, ultra-low THD highly linear uncolored audio systems. In addition to the enhanced input stage, the 990Enh-Ticha uses high precision temperature stable power supply independent current sources. Supply independent current sources allow the bias to remain locked at the optimum operating point regardless of supply voltage. Dual matched pair temperature stable current mirrors, dual matched pair active current loads give the Model 990Enh it's outstanding power supply rejection performance. The enhanced low distortion Class-A output driver stage can sink or source 250mA allowing this module to drive transformers easily. Integrated power transistor heatsinks coupled to a anodized aluminum enclosure keeps the 990Enh-Ticha operating within a wide SOA and does not suffer from Beta droop when driving heavy iron or heavy loads. Each amplifier is fully tested and meets or exceeds published specifications. Because of the 990Enh high current drive capability, supporting circuitry impedances can be scaled down within the application circuit. This can reduce the overall system noise, without increased distortion and provides higher headroom compliance performance. Sonic Imagery Labs also can provide a variation of this model that can operate down to ±4.5V for low power low voltage applications. Contact us and ask about the Model 990LV-Enh-Ticha See Also |
Features: Model 990Enh-Ticha and 995FET-Ticha Mechanical Options Application Note AN-18 DOMESTIC SHIPPING AND
HANDLING: INTERNATIONAL SHIPPING AND
HANDLING: USPS International Flat Rate Priority Mail ---> for $44.80 CANADA and MEXICO ships USPS International Flat Rate Priority Mail $31.45
customs tracking to the border. All other countries- Contact us
directly if you would rather use your own FEDEX, DHL or UPS carrier
account. Table 1. Compatible Upgrade Table |
