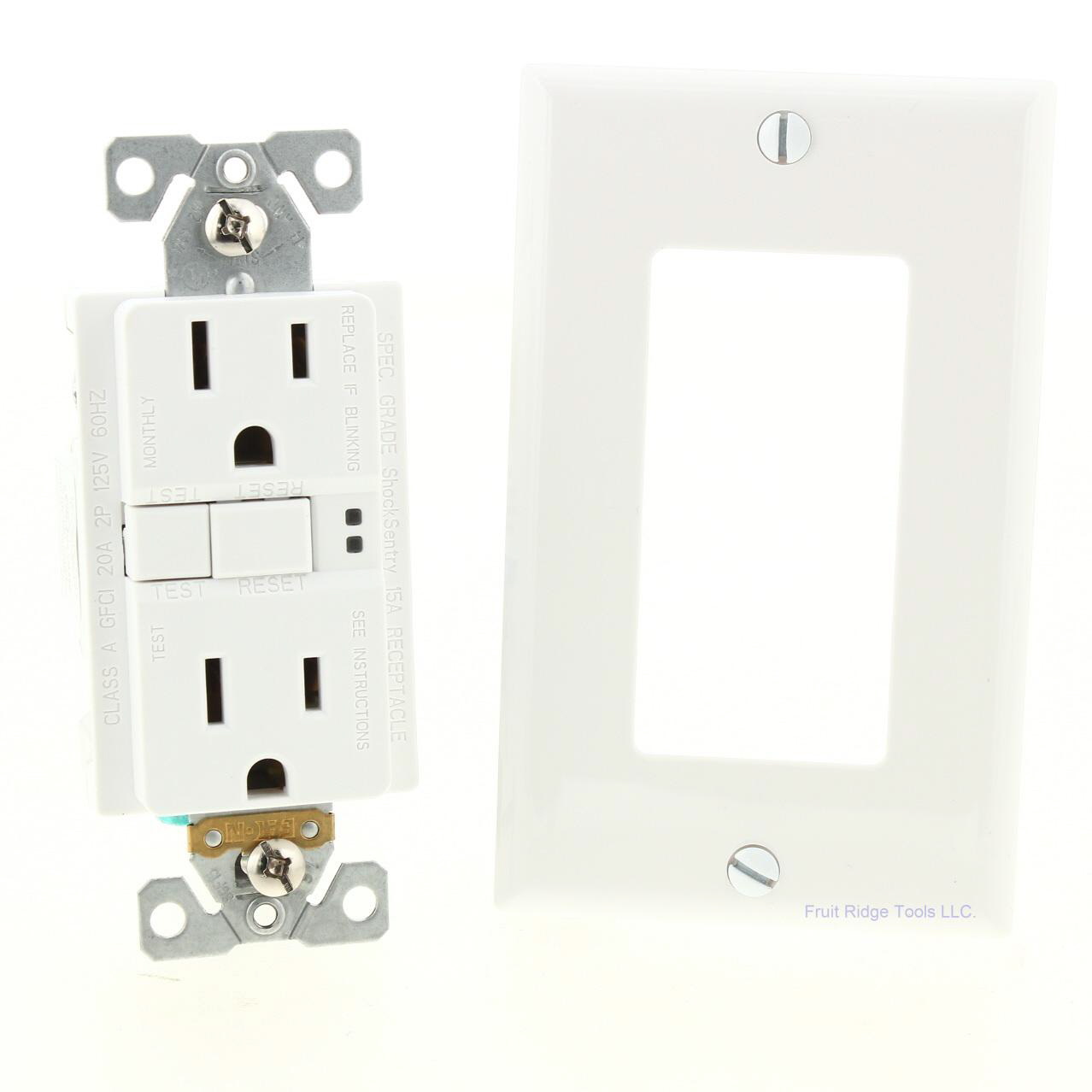

Eaton SGF15W White 15A GFCI Self-Testing Outlet Duplex Receptacle 125V 5-15R

Eaton SGF15W white ground fault circuit interrupter (GFCI) receptacle. The receptacle is self-testing and rated NEMA 5-15R, 2-pole, 3-wire, ground fault, rated 15A 125V at receptacle with a 20A feed thru. Features include:

• Patented correct wiring/trip indicator light visibly signals proper line-to-load connections - to prevent installation errors
• Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
• 20 amp feed-through allows full protection of downstream receptacles when wired from load side
• 8 separate backwiring holes accept up to #10AWG stranded wire, for maximum flexibility
• Durable, impact-resistant thermoplastic construction
• Line terminal screws are backed out, staked, and ready to wire; load side terminals are torqued down for increased prevention of miswiring
• Device and wallplate mounting screws are captive, speeding installation time
• Low overall dimensions makes for more room to wire in "crowded box" situations
• Color-matched and recessed Test & Reset buttons provide uniform appearance
• Exclusive built-in wire stripper, provides backup for misplaced tools
• Includes matching Mid-size wallplate, measuring 3-3/16"x4-15/16". This is an oversize plate for use with larger volume outlet boxes or to hide surface irregularities
• Trip threshold: 5ma - 1ma
• Response time: 0.025 sec.

This is New Old Stock and is returnable for any reason. (SKU # EATSGF15W-EA; Weight: 0.4000 lbs.)
